Schneider Electric EXN112T3H
MPNEXN112T3H
Active

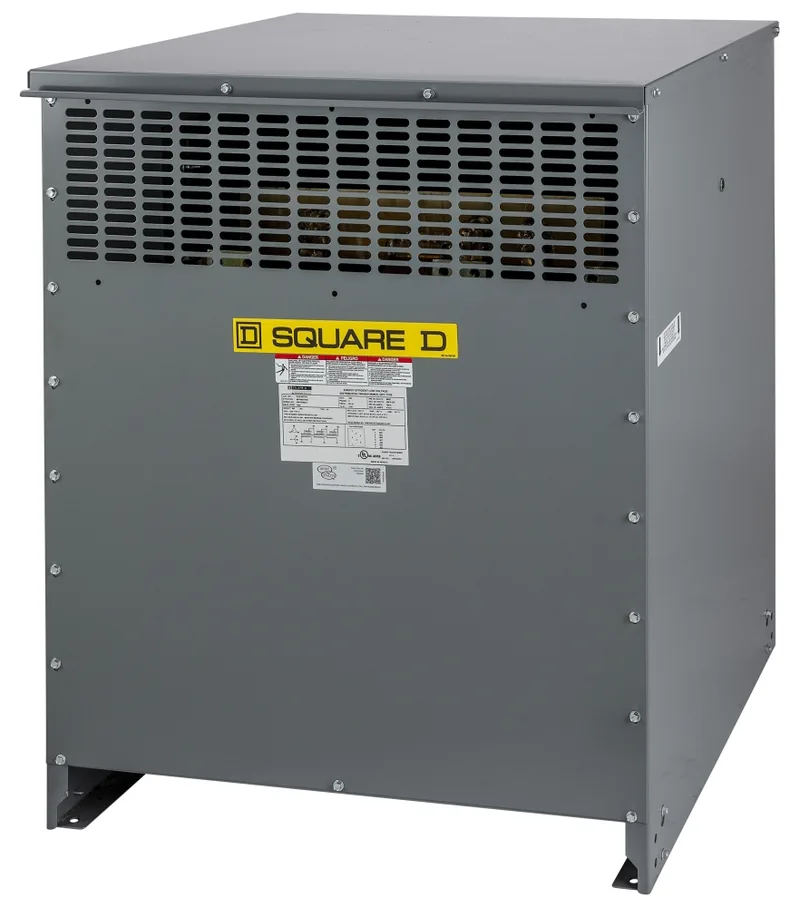

Transformer, Dry Type, 112.5kVA, 3PH, 480 Delta - 208Y/120VAC, 150C Rise|Transformer, Dry Type, 112.5 kVA, 3-Phase, DOE 2016, 480 Delta Primary, 208Y/120 Volt AC, Secondary, 150C Rise, Aluminum Winding
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Natural convection |
| Range of product | Square D |
| Transformer type | Energy efficient |
| Product or component type | Transformer |
| Primary voltage | 480 V delta |
| Secondary voltage | 208Y/120 V |
| Inrush current | 1939 A |
| Let through current | 8.44 kA |
| Primary operational current | 135.32 A 312.27 A 112.5 kVA |
| Rated operational power in | 112.5 kVA |
| Network frequency | 60 Hz |
| Phases | 3 phase |
All specifications
| Parameter | Value |
|---|---|
| IP rating | UL type 2 UL type 3R, with 7400WS21M |
| Mounting support | Floor Floor, with 7400FMB Ceiling, with 7400CMB21M |
| Number of mounting holes | 4 Ø: 0.5 in (13 mm) |
| Electrical connection | 4 Hole Nema Pad primary 0.4 in (11.1 mm) 4 Hole Nema Pad secondary 0.4 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.4 in (11.1 mm) |
| Depth | 28.4 in (722 mm) |
| Width | 31.3 in (795 mm) |
| Height | 37.5 in (953 mm) |
| Coil material | Aluminium |
| Standards | UL 1561 CSA C22.2 No 47 NEMA ST-20 |
| %IX | 2.94 % |
| %IZ | 3.70 % |
| Category | US1PE2X16256 |
| X (R ratio) | 1.42 |
| Box number | 21M |
| Sound level | 44 dB 6 dB NEMA ST-20 |
| DOE efficiency | 98.80 % at 35 % load factor , 167 °F (75.0 °C) |
| Temperature rise | 150 °C 220 °C insulated |
| Device short name | DOE 2016 |
| Device application | Low voltage electrical distribution |
| Number of tap-offs | 2 2.5 % FCAN 4 2.5 % FCBN |
| Transformer BTU (HR) | 1003 16.6 % 1309 25 % 2963 50 % 5721 75 % 9581 100 % |
| Transformer losses | 222 no load (core loss) 2586 load loss (coil loss) |
| Basic IMP level | 10 kV |
| Ambient air temperature for operation | 104 °F (40 °C) |
| Average ambient air temperature for operation | 30 °C |
MPN
EXN112T3H
