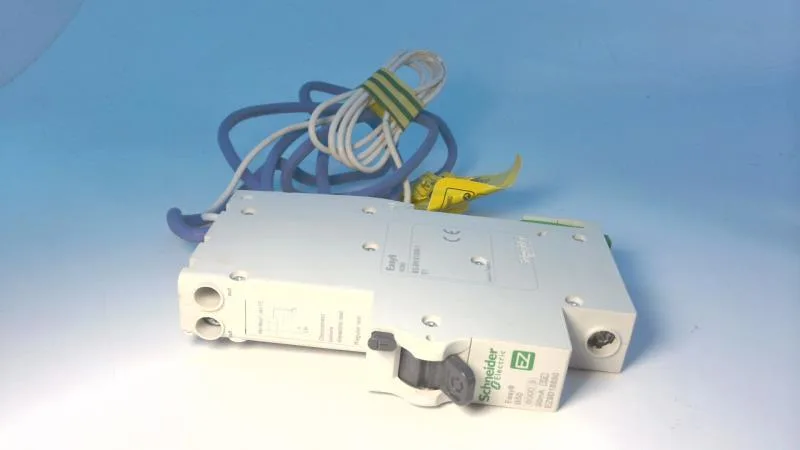

Schneider EZ9D16850 Molded Case Breaker
MPNEZ9D16850
Obsolete
EZ9D16850 - EASY9 by SQUARE D
$39.37Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Residual current breaker with overcurrent protection (RCBO) |
| Voltage | 500 V |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Surge current | 250 A |
| Breaking capacity | 6000 A Icn at 230 V AC 50 Hz conforming to BS EN 61009-1 |
| Current | 50 A |
| Residual current tripping technology | Voltage dependent functional earth |
| Network frequency | 50 Hz |
| Poles | 1P + Ns |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | DIN rail |
| Connections - terminals | Tunnel type terminal (top) 25 mm² rigid Tunnel type terminal (bottom) 16 mm² rigid Tunnel type terminal (bottom) 16 mm² flexible Cable (top) 2 cable(s) flexible |
| Relative humidity | 95 % at 55 °C |
| Depth | 72 mm |
| Width | 18 mm |
| Color | Grey (RAL 7035) |
| Height | 110 mm |
| Electrical durability | 4000 cycles 230 V AC 50 Hz |
| Mechanical durability | 10000 cycles |
| Standards | BS EN 61009-1 |
| Range | Easy9 |
| Curve code | B |
| 9 mm pitches | 2 |
| Earthing system | TN |
| Tropicalisation | 2 |
| Limitation class | 3 |
| Neutral position | Left |
| Device short name | Easy9 RCBO |
| Tightening torque | 2 N.m top or bottom |
| Device application | Distribution |
| Overvoltage category | IV |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 3...5 x In |
| Earth-leakage protection | Integrated |
| Device location in system | Outgoer |
| Earth-leakage sensitivity | 30 mA |
| Contact position indicator | Yes |
| Earth-leakage protection class | Type A |
| Ambient air temperature for storage | -40...85 °C |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -15...60 °C |
MPN
EZ9D16850
