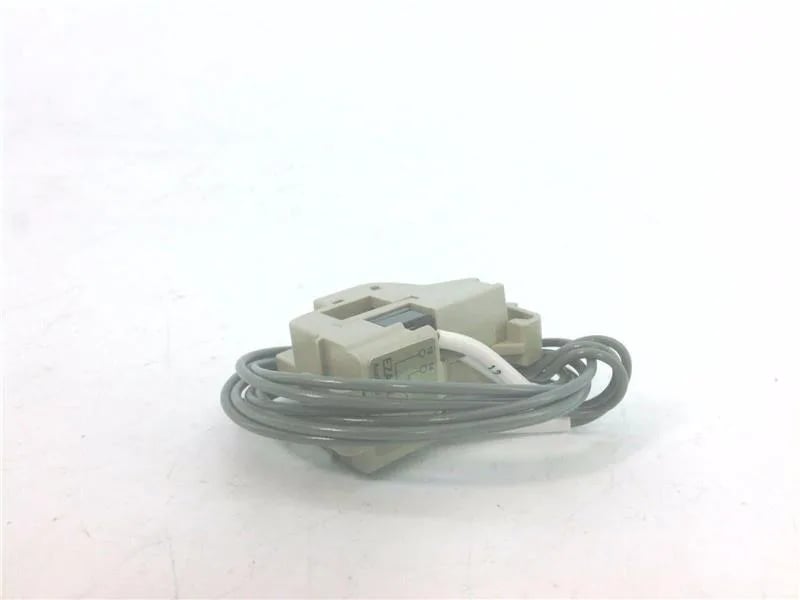

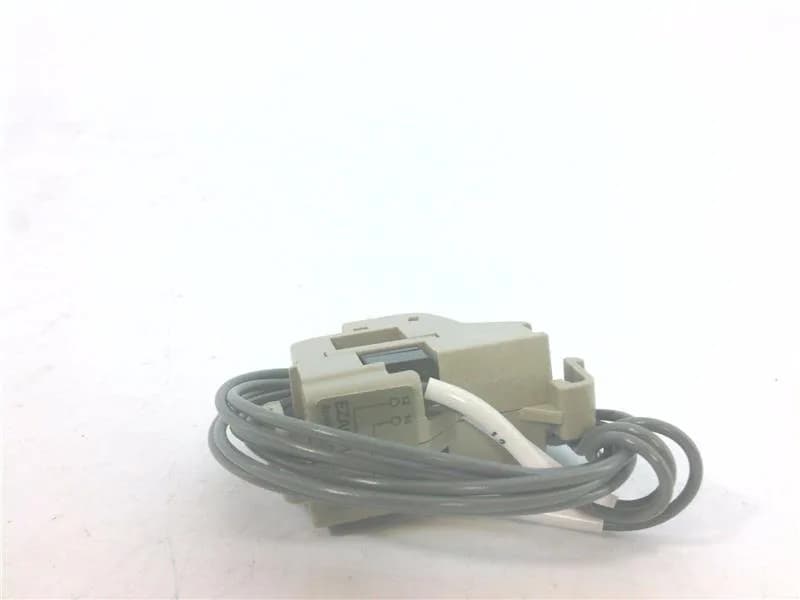

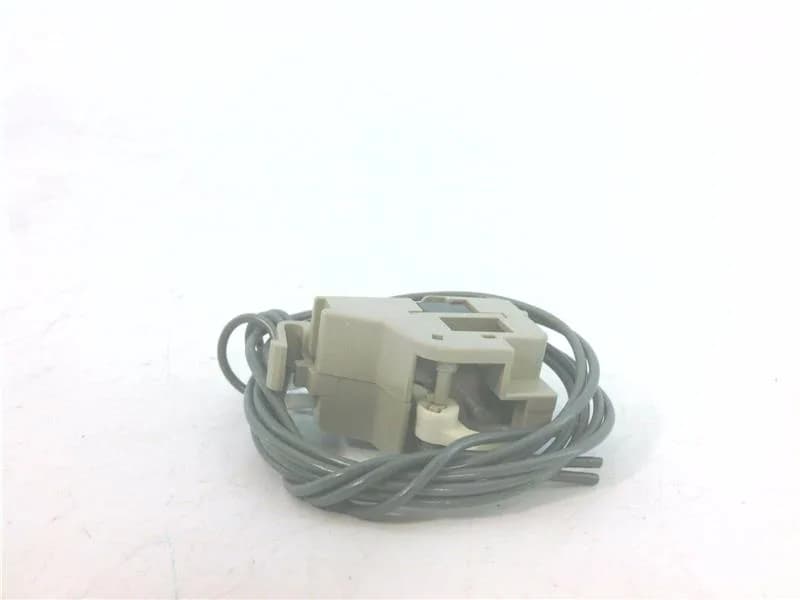

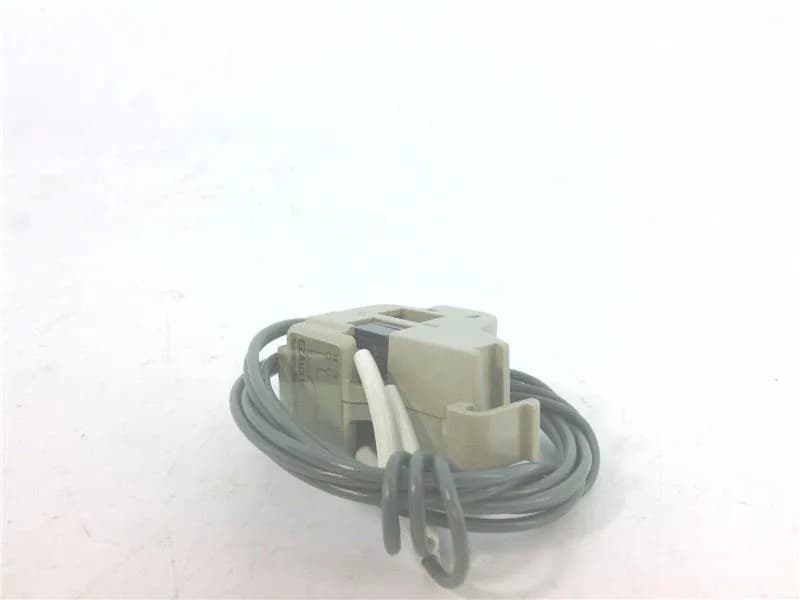

Schneider EZAUX10 5A Fuse Accessory
MPNEZAUX10
Active
EZAUX10 - 5AMP by SQUARE D
$53.34Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | EasyPact CVS EasyPact EZC GoPact R MCCB |
| Auxiliary contacts type | Standard |
| Product or component type | Switch |
| [Ie] rated operational current | AC-12: 3 A at 250 V AC 50/60 Hz AC-12: 5 A at 125 V AC 50/60 Hz AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-15: 2 A at 250 V AC 50/60 Hz AC-15: 3 A at 125 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz DC-12: 0.2 A at 250 V DC DC-12: 0.4 A at 125 V DC DC-12: 2.5 A at 48 V DC DC-12: 4 A at 24 V DC DC-14: 0.2 A at 250 V DC DC-14: 0.4 A at 125 V DC DC-14: 1 A at 48 V DC DC-14: 3 A at 24 V DC |
| [Ith] conventional free air thermal current | 5 A |
| Auxiliary connection terminal | Lead wire |
| Range | EasyPact GoPact |
| Minimum load | 10 mA at 24 V |
| Device short name | EZC100 CVS100BS GR12T |
| Device application | Signalling |
| Signal contacts composition | 1 NO/NC |
MPN
EZAUX10
