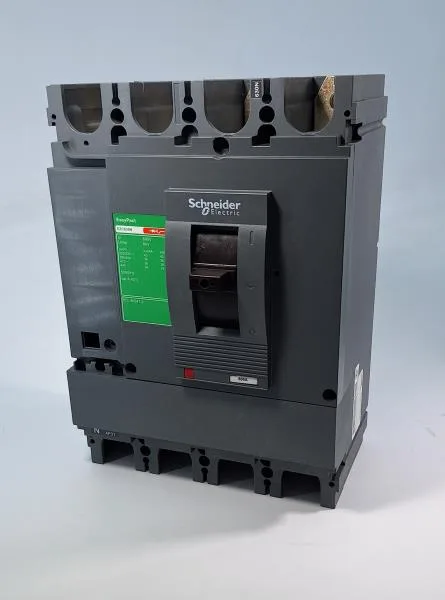

Schneider EZC630N4600N Molded Case Breaker
MPNEZC630N4600N
Active
EZC630N4600N - EASYPACT EZC630N by SCHNEIDER ELECTRIC
$571.60Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Protection type | Overload protection Short-circuit protection |
| Range of product | EasyPact |
| Product or component type | Circuit breaker |
| Long time delay adjustment type | Fixed |
| Long time pick-up adjustment type ir | Fixed |
| Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Breaking capacity | 36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Current | 630 A at 40 °C |
All specifications
| Parameter | Value |
|---|---|
| Breaking capacity code | N |
| Magnetic tripping current | 5000 A |
| [Ics] rated service breaking capacity | 18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/230 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
| Protected poles description | 3t |
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to EN 50102 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Connection pitch | 45 mm |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 conforming to IEC 60947 |
| Depth | 140 mm |
| Width | 185 mm |
| Color | Black |
| Height | 255 mm |
| Electrical durability | Category A: 3000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 10000 cycles |
| Standards | GB/T 14048.2 EN/IEC 60947-2 JIS C8201-2-2 EN/IEC 60947-1 |
| Trip unit name | TM-D |
| Local signalling | Positive contact indication |
| Quantity per set | 1 piece |
| Trip unit rating | 600 A at 50 °C |
| Device short name | Easypact EZC630N |
| Device application | Distribution |
| Circuit breaker name | Easypact EZC630N |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Without |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Neutral protection setting | Without protection |
| Ambient air temperature for storage | -35...85 °C |
| Ambient air temperature for operation | -25...70 °C |
MPN
EZC630N4600N
