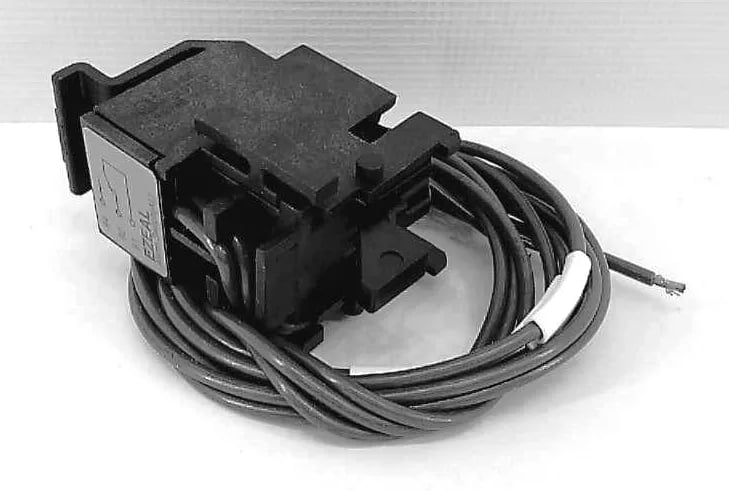

Schneider EZEAL Fuse
MPNEZEAL
Active
EZEAL by SCHNEIDER ELECTRIC
$11.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | EZC250 EZCV250 |
| Auxiliary contacts type | Standard |
| Product or component type | Switch |
| [Ie] rated operational current | AC-12: 3 A at 250 V AC 50/60 Hz AC-12: 5 A at 125 V AC 50/60 Hz AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-15: 2 A at 250 V AC 50/60 Hz AC-15: 3 A at 125 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz DC-12: 0.2 A at 250 V DC DC-12: 0.4 A at 125 V DC DC-12: 2.5 A at 48 V DC DC-12: 4 A at 24 V DC DC-14: 0.2 A at 250 V DC DC-14: 0.4 A at 125 V DC DC-14: 1 A at 48 V DC DC-14: 3 A at 24 V DC |
| [Ith] conventional free air thermal current | 5 A |
| Auxiliary connection terminal | Lead wire |
| Range | EasyPact |
| Minimum load | 10 mA at 24 V |
| Device short name | AL |
| Device application | Alarm |
| Signal contacts composition | 1 NO/NC |
MPN
EZEAL
