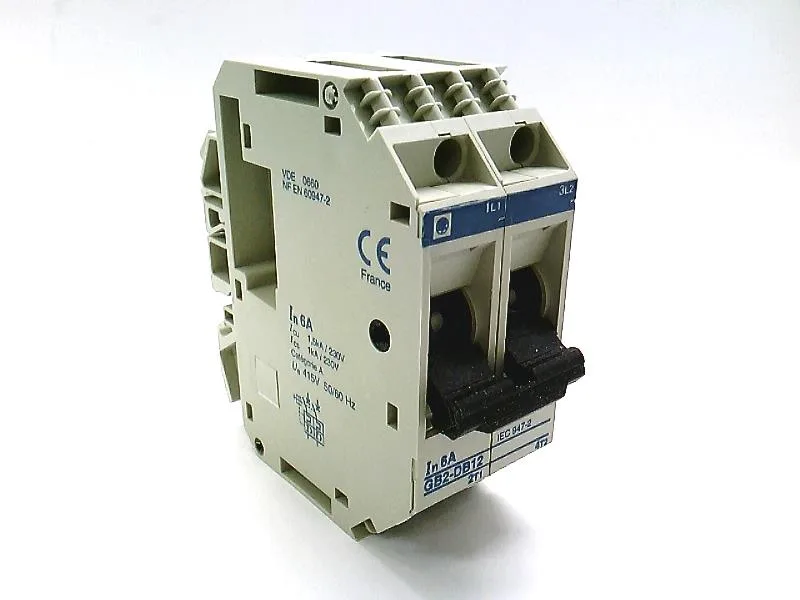

TESYS GB2 THERMAL MAGNETIC CIRCUIT PROTECTOR 2 P 6|TESYS GB2 THERMAL MAGNETIC CIRCUIT PROTECTOR 2 P 6 A ID = 83 A
$18.29Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC/DC |
| Product or component type | Circuit breaker |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz IEC 60947-2 48 V DC |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-2 |
| Breaking capacity | 1.5 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 1.5 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 6 A |
| Magnetic tripping current | 83 A |
| [Ics] rated service short-circuit breaking capacity | 75 % 230/240 V AC 50/60 Hz IEC 60947-2 75 % 400/415 V AC 50/60 Hz IEC 60947-2 |
| Power dissipation per pole | 2 W |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Poles description | 2P |
All specifications
| Parameter | Value |
|---|---|
| Utilisation category | Category A IEC 60947-2 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 |
| Mounting mode | By clips |
| Mounting support | Rail Plate |
| Mounting position | Horizontal Vertical |
| Connections - terminals | connector 1 0.001...0.009 in² (0.75...6 mm²)solid without cable end connector 2 0.001...0.006 in² (0.75...4 mm²)solid without cable end connector 1 0.001...0.006 in² (0.75...4 mm²)flexible with cable end connector 2 0.001...0.004 in² (0.75...2.5 mm²)flexible with cable end |
| Operating altitude | 9842.52 ft (3000 m) |
| Depth | 2.8 in (70 mm) |
| Width | 1.2 in (30 mm) |
| Height | 2.9 in (74 mm) |
| Electrical durability | 8000 cycles |
| Mechanical durability | 8000 cycles |
| Standards | EN/IEC 60947-1 EN/IEC 60947-2 |
| Range | TeSys |
| Category | US1000I22631 |
| 9 mm pitches | 4 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Quantity per set | Set of 3 |
| Device short name | GB2 |
| Tightening torque | 10.6 lbf.in (1.2 N.m) connector |
| Device application | Control |
| Protective treatment | TC |
| Trip unit technology | Thermal-magnetic |
| Mechanical robustness | Shocks 22 Gn for 20 ms IEC 60068-2-27 Vibrations 5 Gn, 5...110 Hz IEC 60068-2-6 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
