Schneider Electric GBX1600161403F
MPNGBX1600161403F
Active

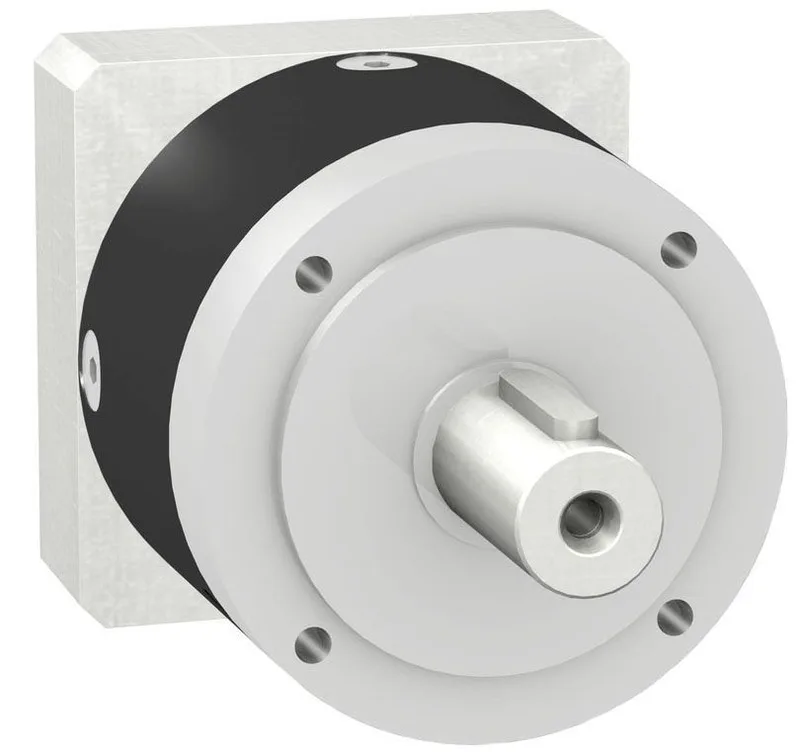

Square D GBX1600161403F Drive Gearbox|Square D GBX1600161403F Drive Gearbox
$4,045.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Gear box type | Straight teeth |
| Product or component type | Planetary gearbox |
| IP degree of protection | Shaft output IP54 |
| Mounting position | Any position |
| Ambient temperature for operation | -13...194 °F (-25...90 °C) |
| Housing colour | Black |
| Shaft material | C 45 |
| Housing material | Black anodized aluminium |
| Category | US1PC5318283 |
| Efficiency | 95 % |
| Noise level | 70 dB 1 m, no-load |
| Internal length | 6.04 in (153.5 mm) |
All specifications
| Parameter | Value |
|---|---|
| Reduction ratio | 20:1 |
| Device short name | GBX |
| Moment of inertia | 9.913 kg.cm² |
| Compatibility code | GBX |
| Torsional rigidity | 41 N.m/arcmin |
| Maximum output torque | 11328.9 lbf.in (1280 N.m) 100 rpm 86 °F (30 °C) |
| Service life in hours | 30000 h 100 rpm 86 °F (30 °C) |
| Additional information | Lubricated for life |
| Maximum axial force fa | 6000 N 100 rpm, during 30000 hour at 30°C 8000 N 100 rpm, during 10000 hour at 30°C |
| Maximum radial force fr | 4200 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C 6000 N 100 rpm, force applied at mid-distance from output shaft during 10000 hour at 30 °C |
| Continuous output torque | 7080.6 lbf.in (800 N.m) 100 rpm 86 °F (30 °C) |
| Gearbox external diameter | 6.3 in (160 mm) |
| Maximum torsional backlash | 10 arc.min |
MPN
GBX1600161403F
