Schneider Electric GBY080025K
MPNGBY080025K
Active

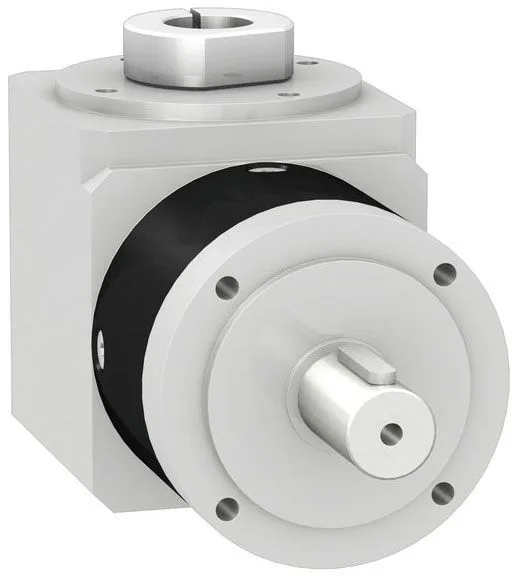

Square D GBY080025K Planetary Gearbox|Square D GBY080025K Planetary Gearbox
$1,500.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Gear box type | Straight teeth |
| Product or component type | Angular planetary gearbox |
| IP degree of protection | Shaft output IP54 |
| Mounting position | Any position |
| Ambient temperature for operation | -13...194 °F (-25...90 °C) |
| Housing colour | Black |
| Shaft material | C 45 |
| Housing material | Black anodized aluminium |
| Category | US1PC5318283 |
| Efficiency | 94.0 % |
| Noise level | 73 dB 1 m, no-load |
| Input diameter | 0.7 in (19.0 mm) |
All specifications
| Parameter | Value |
|---|---|
| Internal length | 6.4 in (161.5 mm) |
| Reduction ratio | 25:1 |
| Device short name | GBY |
| Moment of inertia | 0.973 kg.cm² |
| Compatibility code | GBY |
| Torsional rigidity | 6.5 N.m/arcmin |
| Maximum output torque | 1557.7 lbf.in (176 N.m) 100 rpm 86 °F (30 °C) |
| Service life in hours | 30000 h 100 rpm 86 °F (30 °C) |
| Additional information | Lubricated for life |
| Maximum axial force fa | 900 N 100 rpm, during 30000 hour at 30°C |
| No load running torque | 0.9 lbf.in (0.1 N.m) |
| Maximum radial force fr | 650 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C |
| Continuous output torque | 973.6 lbf.in (110 N.m) 100 rpm 86 °F (30 °C) |
| Gearbox external diameter | 3.1 in (80 mm) |
| Maximum torsional backlash | 15 arc.min |
MPN
GBY080025K
