Schneider Electric GC2540B5

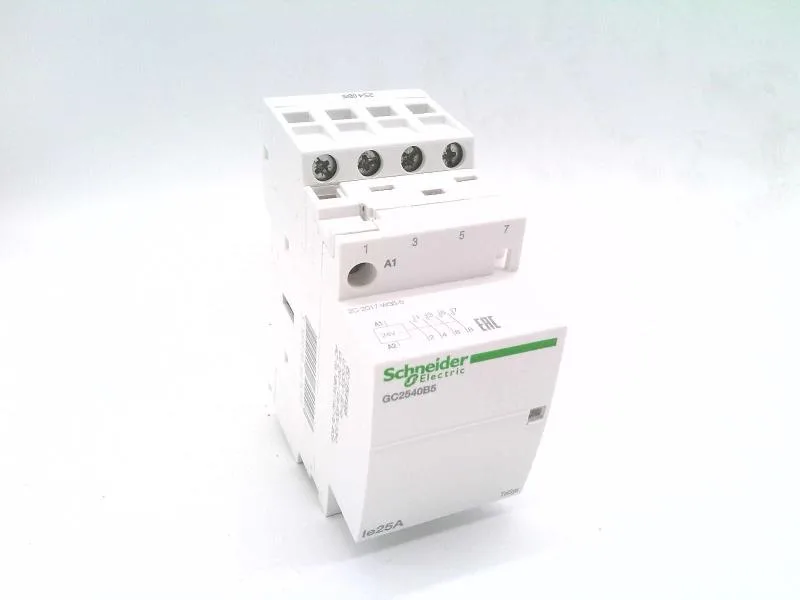

Schneider GC2540B5 TeSys GC contactor, 4-pole, 25 A, 24 V AC coil

MPNGC2540B5
Obsolete

Schneider GC2540B5 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.

$73.38Ref. price · indicative, final on quote
Schneider Electric GC2540B5 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

GC2540B5 key specifications
ParameterValue
Control typeRemote control
Control circuit typeAC at 50 Hz
Product or component typeModular contactor
Coil voltage24 V AC 50 Hz
Voltage500 V conforming to IEC 61095 500 V conforming to VDE 0110
Control circuit voltage limitsDrop-out: 0.2...0.75 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 50 Hz (at <50 °C)
[Ue] rated operational voltage<= 250 V AC
[Uimp] rated impulse withstand voltage4 kV
[Icw] rated short-time withstand current200 A 40 °C - 10 s for power circuit 62 A 40 °C - 30 s for power circuit
Breaking capacity68 A at 400 V for power circuit conforming to IEC 61095
[Ie] rated operational current25 A AC-7A 8.5 A AC-7B
[Ith] conventional free air thermal current25 A (at 50 °C) for power circuit

All specifications

GC2540B5 additional specifications
ParameterValue
Inrush power in34 VA 50 Hz (at 20 °C)
Power dissipation per pole1.6 W
Power pole contact composition4 NO
Hold-in power consumption in4.6 VA 50 Hz (at 20 °C)
Poles description4P
Utilisation categoryAC-7A AC-7B
IP degree of protectionIP40 conforming to VDE 0106 (in enclosure) IP20 conforming to VDE 0106
Mounting modeClip-on
Mounting supportDIN rail
Connections - terminalsControl circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 2.5 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1.5 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²solid without cable end Power circuit: screw clamp terminals 1 cable(s) 6 mm²flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 4 mm²flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 6 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 6 mm²solid without cable end Power circuit: screw clamp terminals 2 cable(s) 4 mm²solid without cable end
Operating altitude<= 3000 m
Depth62.5 mm
Width36 mm
ColorWhite
Height85 mm
Product weight0.23 kg
Electrical durabilityAC-7A: 100000 cycles AC-7B: 100000 cycles
Mechanical durability1000000 cycles
StandardsIEC 61095 IEC 60947-5
RangeTeSys
Operating time10...25 ms opening 10...30 ms closing
Heat dissipation1.6 W at 50/60 Hz
Quantity per setSet of 6
Average impedance2.5 mOhm - Ith 25 A 50 Hz for power circuit
Device short nameGC25
Tightening torqueControl circuit: 0.8 N.m - on screw clamp terminals Power circuit: 0.8 N.m - on screw clamp terminals
Operating position30°/vertical
Protective treatmentTC
Contactor applicationHeating Motor control Lighting
Mechanical robustnessShocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 3 Gn, 5...300 Hz
Associated fuse rating25 A gL at <= 440 V for power circuit
Maximum operating rate300 cyc/h 50 °C
Irms rated making capacity68 A at 400 V AC for power circuit conforming to IEC 61095
Total number of 18 mm modules2
Ambient air temperature for storage-40...70 °C
Ambient air temperature for operation-5...50 °C

Product details

Overview

The GC2540B5 is a 4-pole TeSys GC contactor rated for 25 A switching current on a 24 V AC 50 Hz control coil, built for heating, motor control and lighting applications under AC-7A and AC-7B duty. It breaks 68 A at 400 V per IEC 61095, carries screw-clamp terminals accepting up to 6 mm² flexible wire, and clips onto a DIN rail with a 36 mm wide footprint.

The GC2540B5's 4-pole configuration sets it apart from common 3-pole TeSys K contactors like the LC1K09004F7, which switches 20 A across three poles and carries a 110 A making capacity at 400 V per IEC 60947 — a higher short-circuit rating but one fewer pole for multi-circuit isolation.
