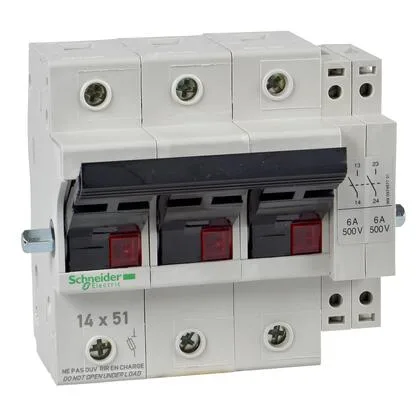

Schneider GK1EK Off-Load Isolator
MPNGK1EK
Obsolete
OFF LOAD ISOLATORGK1EK|OFF LOAD ISOLATORGK1EK
$151.79Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | GG AM |
| Control type | Toggle |
| Product or component type | Fuse-disconnector |
| Contacts type and composition | 1 NO early-break |
| [Ue] rated operational voltage | Power circuit 690 V AC Signalling circuit 500 V AC Signalling circuit 440 V DC |
| [Ie] rated operational current | 50 Apower circuit 6 Asignalling circuit |
| Poles description | 3P |
| IP degree of protection | IP20 |
| Mounting support | Rail |
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | Power circuit connector 1 0.004...0.04 in² (2.5...25 mm²)solid Power circuit connector 1 0.004...0.04 in² (2.5...25 mm²)flexible without cable end Power circuit connector 1 0.004...0.02 in² (2.5...16 mm²)flexible with cable end |
| Depth | 3.5 in (89.5 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 3.5 in (88 mm) |
| Height | 3.8 in (97 mm) |
| Standards | IEC 60947-3 |
| Range | TeSys |
| Category | US1000I22621 |
| Fuse size | 14 x 51 mm |
| Device short name | GK1 E |
| Tightening torque | 17.7 lbf.in (2 N.m) power circuit connector |
| Protective treatment | TC |
| Ambient air temperature for operation | -58...158 °F (-50...70 °C) |
MPN
GK1EK
