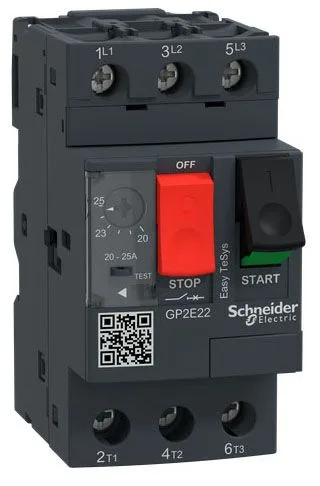

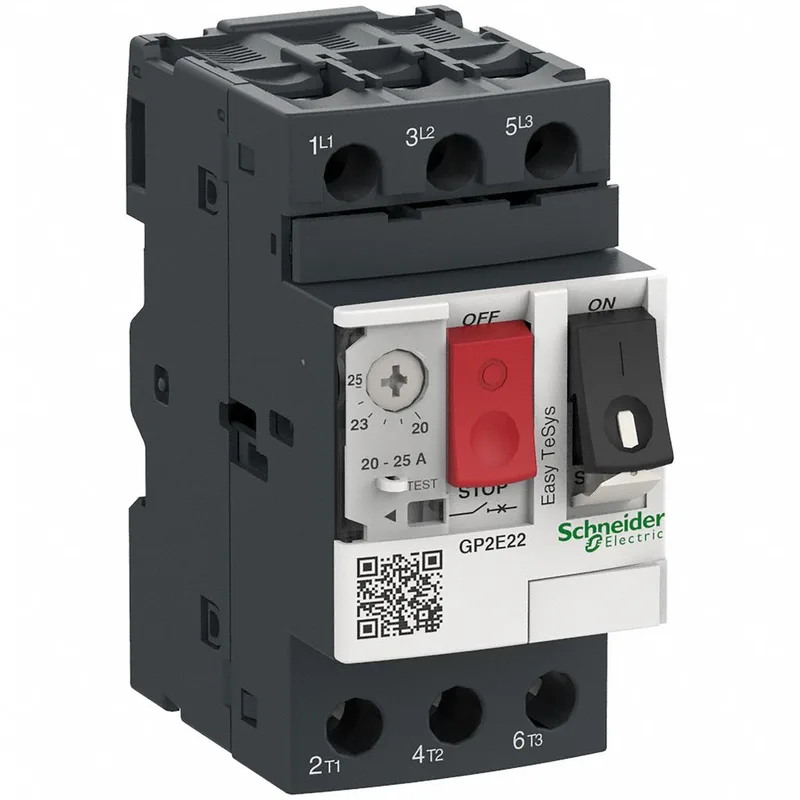

Schneider Electric GP2E22
MPNGP2E22
Active
Product Detail|Square D GP2E22 Manual Starter And Protector, 20-25A
$73.09 – $138.94Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Network type | AC |
| Product or component type | Motor controller |
| Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Breaking capacity | 50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 6 kA Icu 440 V AC 50/60 Hz IEC 60947-2 4 kA Icu 500 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 25 A |
| Magnetic tripping current | 327 A |
| [Ith] conventional free air thermal current | 25 A IEC 60947-4-1 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2 40 % 400/415 V AC 50/60 Hz IEC 60947-2 50 % 440 V AC 50/60 Hz IEC 60947-2 75 % 500 V AC 50/60 Hz IEC 60947-2 75 % 690 V AC 50/60 Hz IEC 60947-2 |
| Power dissipation per pole | 2.5 W |
All specifications
| Parameter | Value |
|---|---|
| Network frequency | 50/60 Hz IEC 60947-4-1 |
| Poles description | 3P |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Rated duty | Continuous IEC 60947-4-1 |
| Utilisation category | AC-3 IEC 60947-4-1 Category A IEC 60947-2 |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Connections - terminals | Screw clamp terminals 0.002...0.009 in² (1...6 mm²) - solid Screw clamp terminals 0.002...0.009 in² (1.5...6 mm²) - flexible without cable end Screw clamp terminals 0.002...0.006 in² (1...4 mm²) - flexible with cable end Screw clamp terminals AWG 18...AWG 8) |
| Operating altitude | 6561.68 ft (2000 m) |
| Depth | 3.09 in (78.5 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Electrical durability | 100000 cycles AC-3 440 V |
| Mechanical durability | 100000 cycles |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CUL |
| Range | Easy TeSys |
| Category | US10I1322364 |
| Fixing mode | 35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Device short name | GP2E |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminals |
| Device application | Motor |
| Operating position | Any position |
| Protective treatment | TH |
| Trip unit technology | Thermal-magnetic |
| Maximum operating rate | 25 cyc/h |
| Suitability for isolation | Yes IEC 60947-1 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Thermal protection adjustment range | 20...25 A |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
GP2E22
