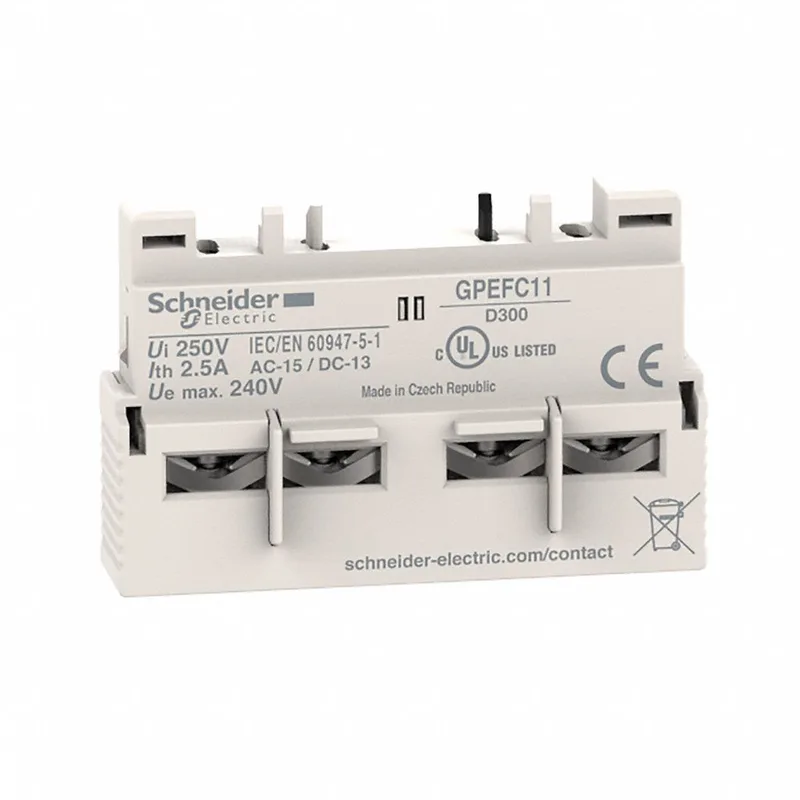

Schneider Electric GPEFC11
MPNGPEFC11
Active
SCHNEIDER Auxiliary Contact Block: 1NO/1NC, 2.5 A Max Current (AC), Front Mount
$18.62Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | GG fuse 10 A GB2CB06 circuit breaker 10 A |
| Product or component type | Auxiliary contact block |
| Minimum switching voltage | 17 V |
| Voltage | 300 V UL 60947-4-1 300 V cUL 250 V IEC 60947-1 |
| [Ue] rated operational voltage | 24...240 V AC 24...60 V DC |
| Minimum switching current | 5 mA |
| [Ith] conventional free air thermal current | 2.5 A |
| Rated operational power in | 15 W 48 V DC-13 100000 cycles 24 W 24 V DC-13 100000 cycles 9 W 60 V DC-13 100000 cycles |
| Pole contact composition | 1 NO + 1 NC |
| Mounting location | Front side |
| Connections - terminals | Screw clamp terminals1 0.002...0.004 in² (1...2.5 mm²) - solid Screw clamp terminals2 0.002...0.004 in² (1...2.5 mm²) - solid Screw clamp terminals1 0.001...0.004 in² (0.75...2.5 mm²) - flexible without cable end Screw clamp terminals2 0.001...0.004 in² (0.75...2.5 mm²) - flexible without cable end Screw clamp terminals1 0.001...0.002 in² (0.75...1.5 mm²) - flexible with cable end |
| Color | Dark grey |
All specifications
| Parameter | Value |
|---|---|
| Depth | 1.1 in (29 mm) 1.6 in (41 mm) |
| Width | 1.8 in (45 mm) 1.8 in (45 mm) |
| Height | 0.4 in (11 mm) 0.6 in (15.5 mm) |
| Mechanical durability | 100000 cycles |
| Range | Easy TeSys |
| Category | US10I1322364 |
| Quantity per set | Set of 10 |
| Device short name | GPEFC |
| Environmental characteristic | Normal environment |
MPN
GPEFC11
