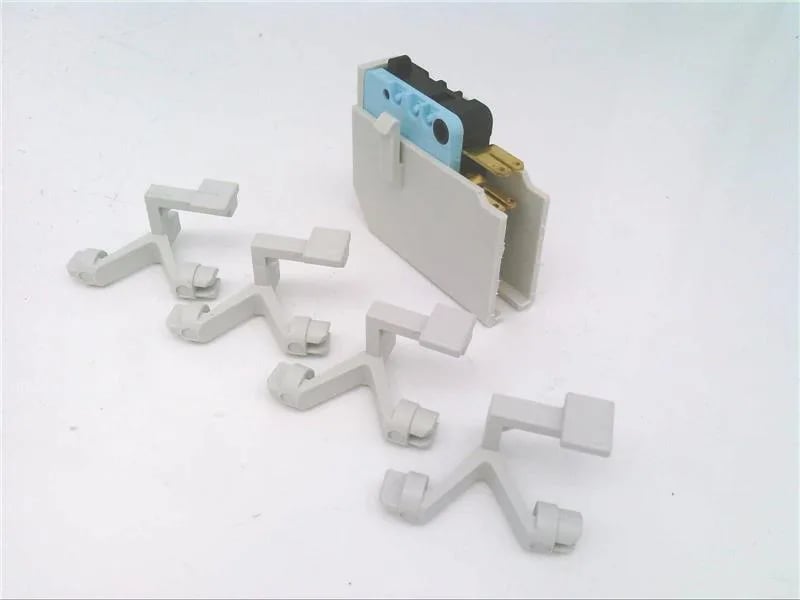

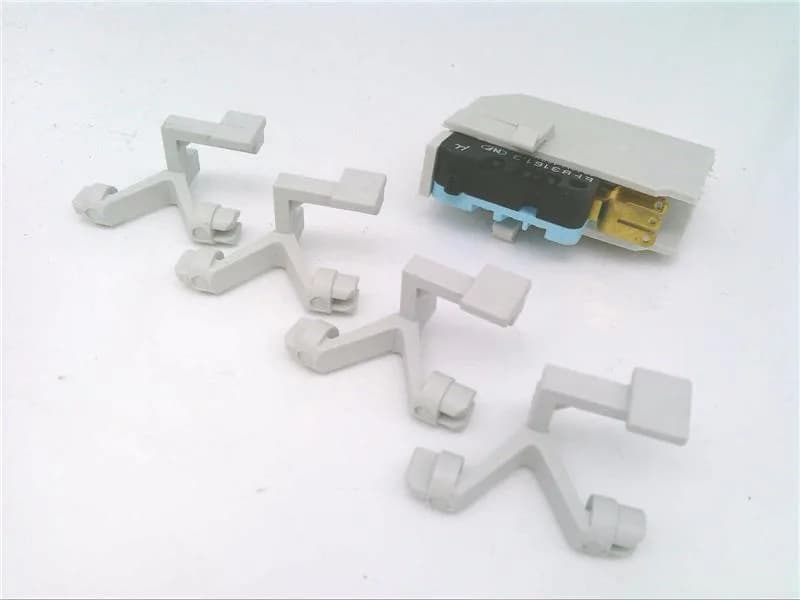

Schneider Electric TeSys GS GS1AF1 auxiliary contact block, 1 C/O, 4 poles, 16 A switching current, for blown fuse signalling, NFC DIN fuse type, 14 x 51 mm frame size, for GS1/GS2 fuse-switch disconnectors.
| Parameter | Value |
|---|---|
| Fuse type | NFC DIN |
| Range of product | TeSys |
| Product or component type | Auxiliary contact |
| Contacts type and composition | 1 C/O |
| Switch rated current | 50 A |
| [Ie] rated operational current | 12 A 24 V DC-13 2 A 48 V DC-13 3 A 400 V AC-15 4 A 230 V AC-15 0.4 A 220 V DC-13 0.6 A 110 V DC-13 |
| [Ith] conventional free air thermal current | 16 A (at 104 °F (40 °C)) |
| Poles description | 4P 3P |
| Electrical durability | 30000 cycles AC-15 |
| Mechanical durability | 30000 cycles |
| Category | 18402-WORLD SERVICE PARTS(CONTROL ACCESS) |
| Fuse size | 14 x 51 mm |
| Contact operation | Instantaneous |
| Device short name | GS1AF |
| Contact application | Blown fuse signalling |
The GS1AF1 is a Schneider TeSys GS auxiliary contact block that signals a blown fuse condition on GS1 and GS2 fuse-switch disconnectors, switching 16 A through a single C/O contact across 4 poles. It accepts NFC DIN fuses in a 14 x 51 mm frame and is rated for 30000 cycles in AC-15 duty.
