Schneider Electric GS1AN22
MPNGS1AN22
Active

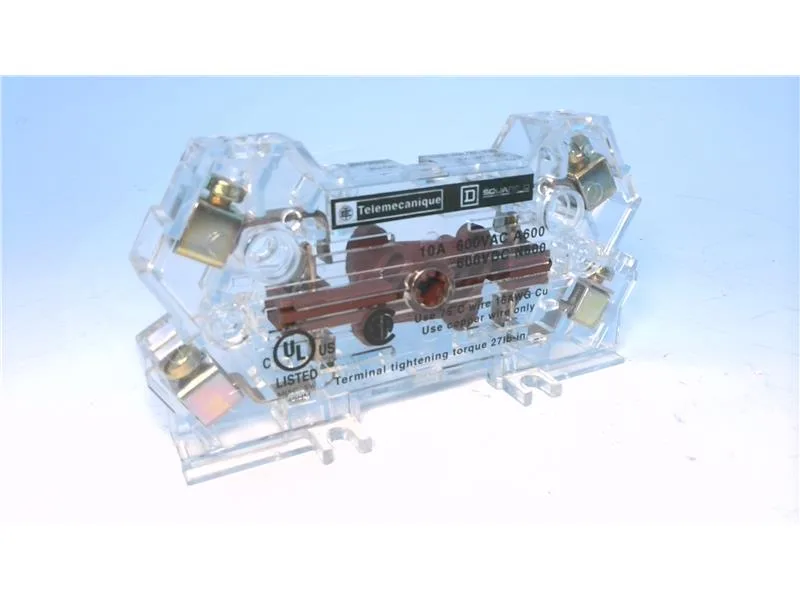

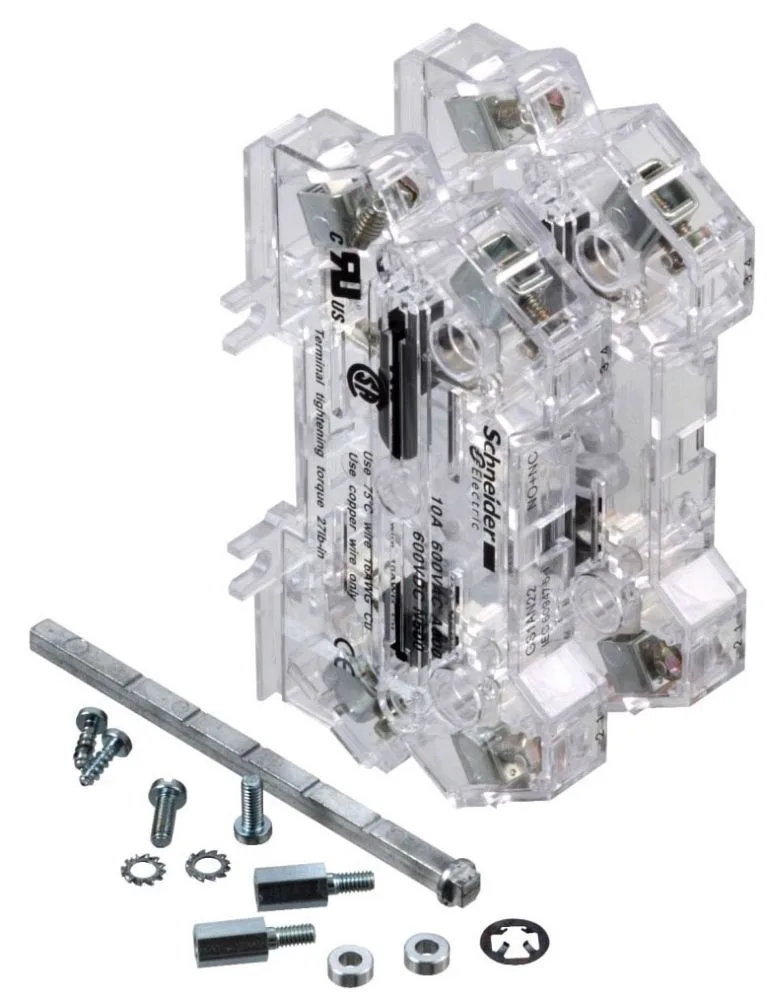

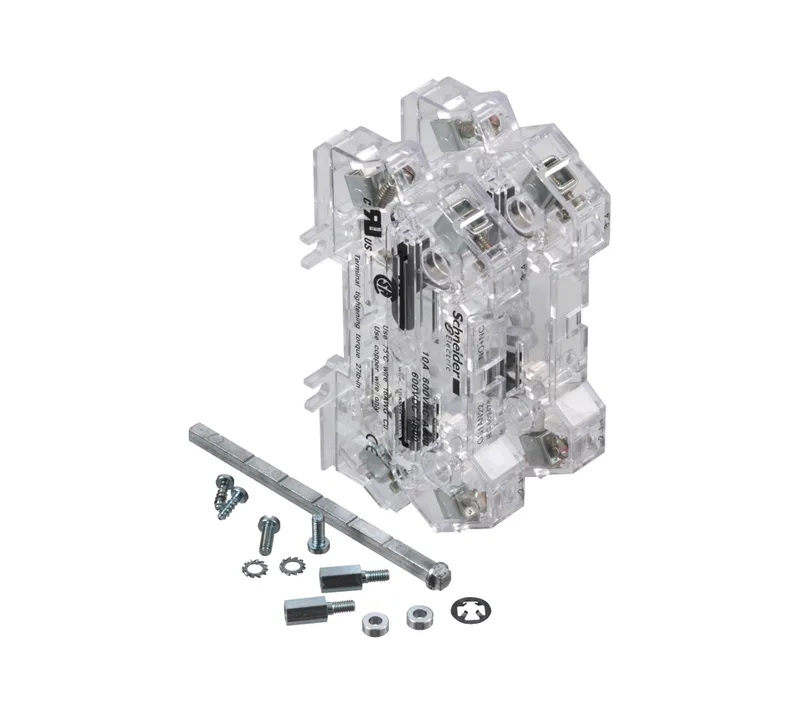

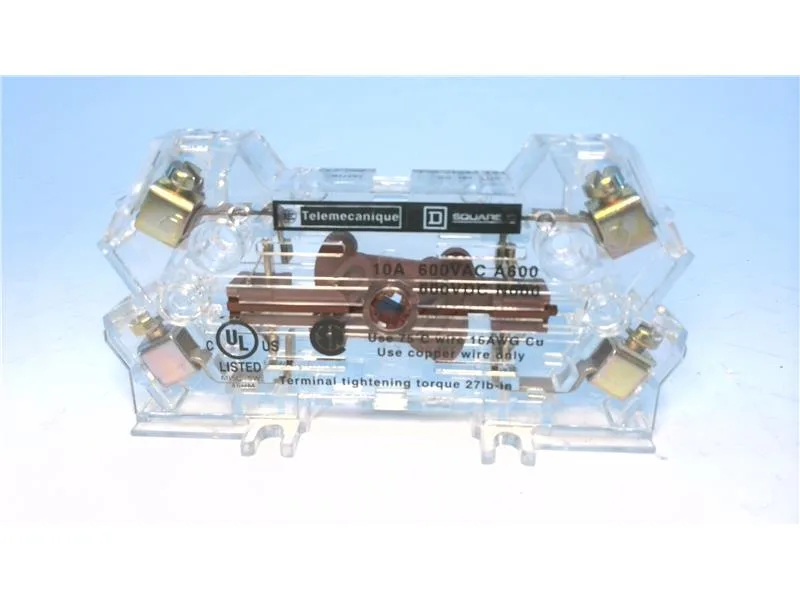

Square D GS1AN22 Disconnect Switch Auxiliary Contact 600VAC 10A
$25.40Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | DIN NFC BS |
| Range of product | TeSys |
| Contact operation | Instantaneous |
| Device short name | GS1AN |
| Contact application | O and I position signalling |
| Switch rated current | 200 A 60 A 600 A 630 A 315 A 400 A 800 A 250 A 125 A 1250 A 160 A 50 A 63 A 100 A |
| Electrical durability | 30000 cycles AC-15 |
| Mechanical durability | 30000 cycles |
| Type of operating handle | Direct frontal External frontal Direct right side External right side |
| Product or component type | Auxiliary contact |
| Contacts type and composition | 2 NO + 2 NC |
| [Ie] rated operational current | 1 A 220 V DC-13 10 A 230 V AC-15 12 A 127 V AC-15 4 A 48 V DC-13 6 A 440 V AC-15 8 A 400/415 V AC-15 1.2 A 110 V DC-13 |
| [Ith] conventional free air thermal current | 20 A (at 104 °F (40 °C)) |
MPN
GS1AN22
