Schneider Electric GS1AN22G
MPNGS1AN22G
Obsolete

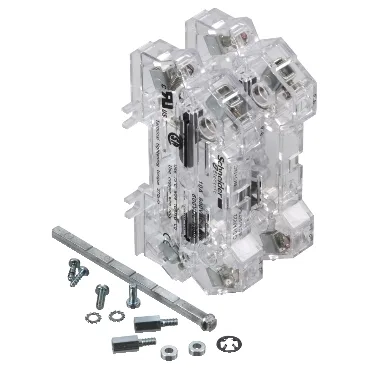

Auxiliary contacts, TeSys GS, 2NC+2NO, instantaneous, right side mounting, for GS2 with left handle
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | DIN BS NFC |
| Product weight | 0.252 kg |
| Range of product | TeSys |
| Contact operation | Instantaneous |
| Device short name | GS1AN |
| Contact application | O and I position signalling |
| Switch rated current | 100 A 125 A 160 A 60 A 400 A 600 A 800 A 200 A 630 A 250 A 315 A 50 A 63 A 1250 A |
| Electrical durability | 30000 cycles AC-15 |
| Mechanical durability | 30000 cycles |
| Type of operating handle | External left side |
| Product or component type | Auxiliary contact |
| Contacts type and composition | 2 NO + 2 NC |
| [Ie] rated operational current | 1 A at 220 V DC-13 10 A at 230 V AC-15 12 A at 127 V AC-15 4 A at 48 V DC-13 6 A at 440 V AC-15 8 A at 400/415 V AC-15 1.2 A at 110 V DC-13 |
| [Ith] conventional free air thermal current | 20 A (at 40 °C) |
MPN
GS1AN22G
