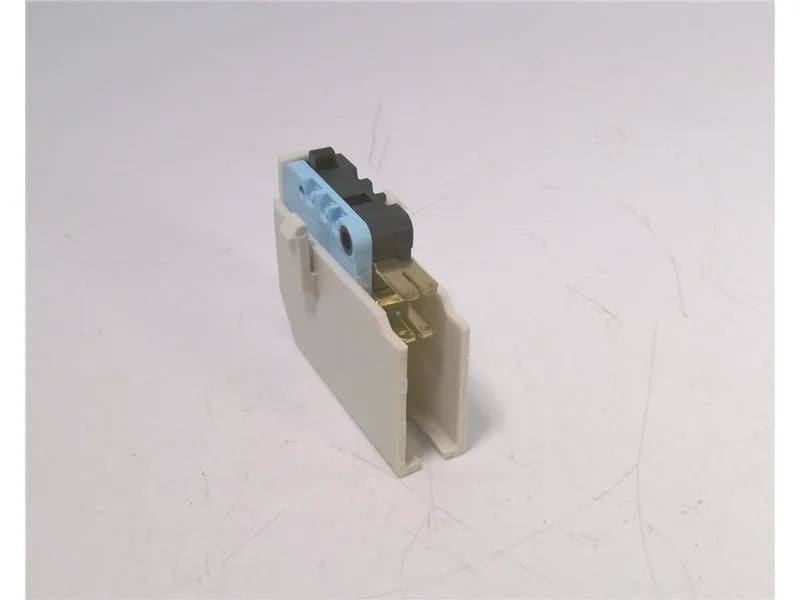

Schneider GS2AF73 Auxiliary Contacts — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Fuse type | NFC DIN |
| Range of product | TeSys |
| Product or component type | Auxiliary contact |
| Contacts type and composition | 1 C/O |
| Switch rated current | 1250 A |
| [Ie] rated operational current | 12 A at 24 V DC-13 2 A at 48 V DC-13 3 A at 400 V AC-15 4 A at 230 V AC-15 0.4 A at 220 V DC-13 0.6 A at 110 V DC-13 |
| [Ith] conventional free air thermal current | 16 A (at 40 °C) |
| Poles description | 3P |
| Electrical durability | 30000 cycles AC-15 |
| Mechanical durability | 30000 cycles |
| Fuse size | 4 |
| Contact operation | Instantaneous |
| Device short name | GS2AF |
| Contact application | Blown fuse signalling |
The GS2AF73 is a Schneider TeSys GS auxiliary contact block with 1 C/O contact, 3 poles, and a 16 A switching current, designed for blown-fuse signalling on GS1 and GS2 fuse-switch disconnectors in NFC DIN frame size 4. Schneider has discontinued this part; remaining units are available through surplus and broker channels.
