Schneider Electric TeSys GS GS2AHT430 external rotary handle, black, front mounting, 3 positions Test-I-O, NEMA 4-4X, for GS 30 to 400A UL, discontinued.
| Parameter | Value |
|---|---|
| Range of product | TeSys |
| Type of operating handle | External frontal |
| Product or component type | Rotary handle |
| Switch rated current | 30 A 60 A 100 A 200 A 400 A |
| NEMA degree of protection | NEMA 4X |
| Handle colour | Black |
| Handle front plate colour | Grey |
| Standards | UL CSA |
| Range | TeSys |
| Category | US10I1122640 |
| Handle positions | Test-O-I |
| Device short name | GS2AHT |
| Rotary handle padlocking | With |

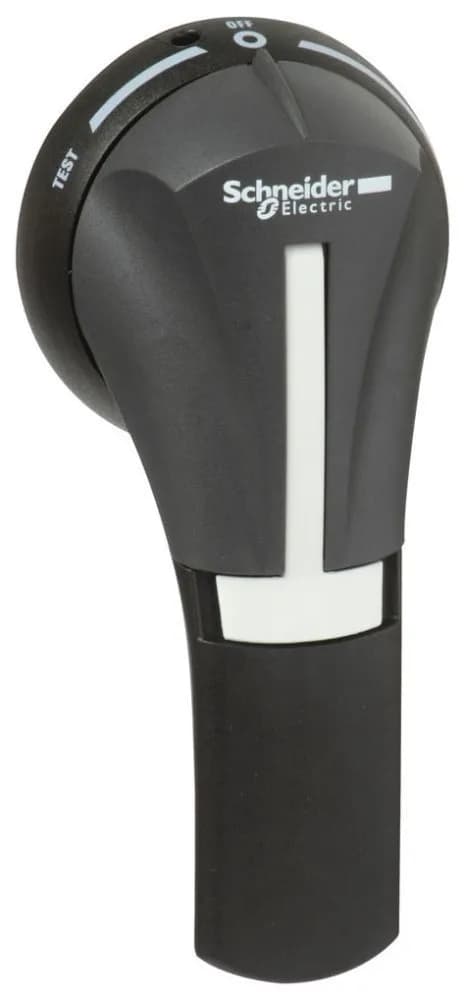

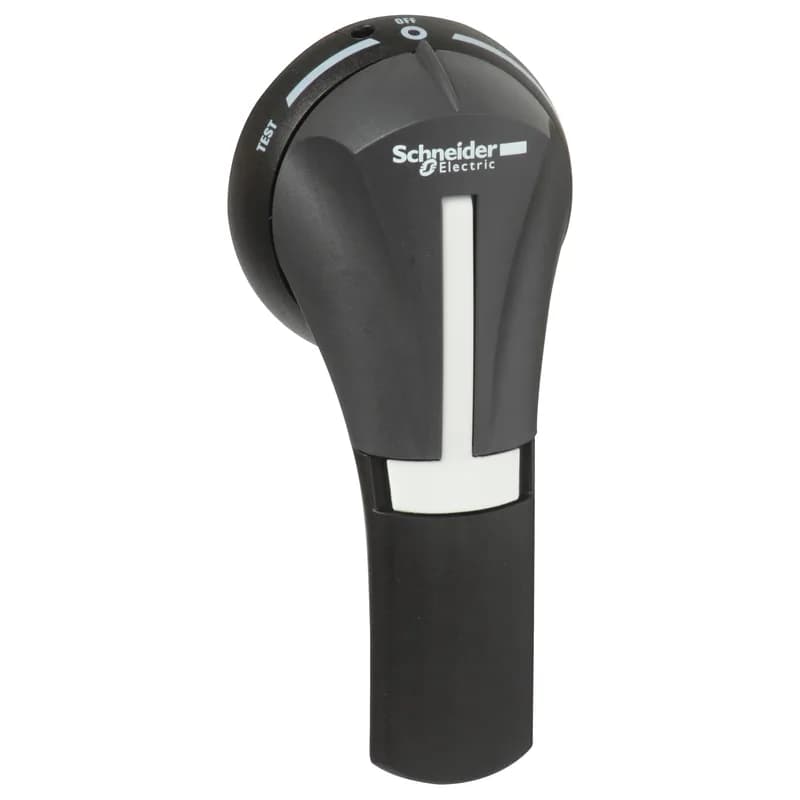

The GS2AHT430 is the black external frontal rotary handle for the TeSys GS range, providing three positions (Test-O-I) and padlocking capability, sealed to NEMA 4-4X for washdown and outdoor enclosures. It fits GS disconnects rated 30 to 400 A UL and carries UL and CSA marks.
