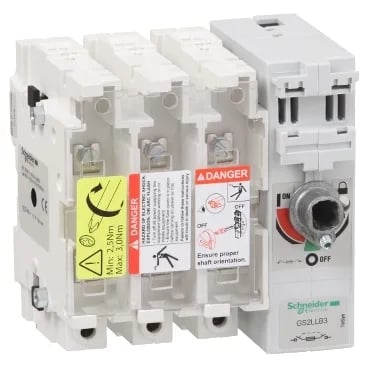

Schneider Electric GS2LLB3
MPNGS2LLB3
Active
Switch disconnector fuse, TeSys GS, 3P, 160A, fuse type BS, size A4
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Fuse type | BS |
| Network type | DC AC |
| Type of operating handle | External right side External frontal |
| Product or component type | Switch-disconnector-fuse |
| Contacts type and composition | 3 NO |
| Short-circuit withstand | 22.7 kA |
| Voltage | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Breaking capacity | 1280 A at 400 V (AC-23B) |
| [Ie] rated operational current | 125 A at 440 V 2 poles in series per phase DC-23A 125 A at 440 V 2 poles in series per phase DC-23B 125 A at 690 V AC-23A 125 A at 690 V AC-23B 160 A at 400 V AC-23A 160 A at 400 V AC-23B 160 A at 500 V AC-23A 160 A at 500 V AC-23B |
| [Icm] rated short-circuit making capacity | 80 kA at 400 V with protection by gG fuses |
| [Ith] conventional free air thermal current | 160 A (at 40 °C) |
All specifications
| Parameter | Value |
|---|---|
| Rated operational power in | 80 kW at 400 V 110 kW at 500 V 110 kW at 690 V |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Protected poles description | 3t |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| Mounting support | Plate |
| Connections - terminals | Power circuit: bars 20 mm² Power circuit: lugs-ring terminals 50...95 mm² |
| Depth | 136.5 mm |
| Width | 190 mm |
| Height | 162 mm |
| Electrical durability | 1000 cycles AC-23A 1000 cycles AC-23B 200 cycles DC-23A 200 cycles DC-23B |
| Mechanical durability | 10000 cycles |
| Standards | IEC 60947-3 |
| Range | TeSys |
| Fuse size | A4 |
| Fire resistance | 850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1 |
| Making capacity | 1600 A at 400 V AC-23B |
| Device short name | GS2L |
| Tightening torque | Power circuit: 12 N.m |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -20...70 °C |
MPN
GS2LLB3
