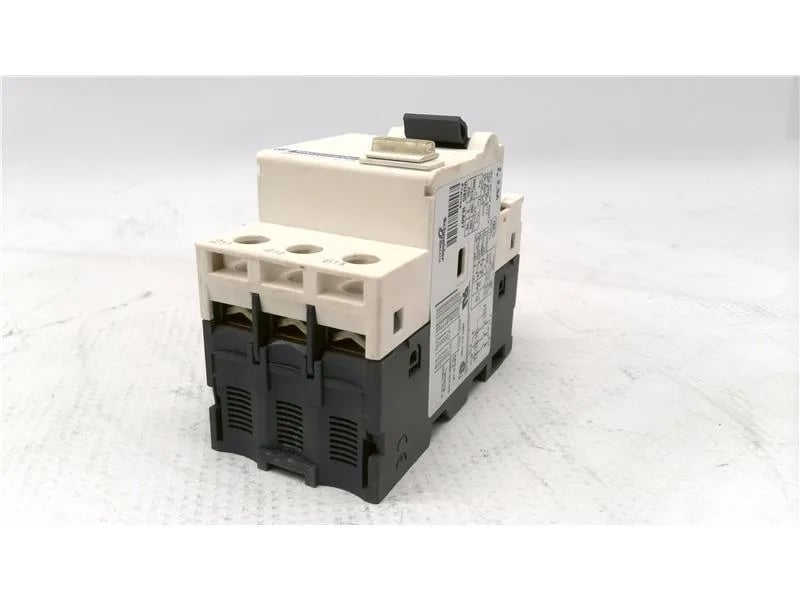

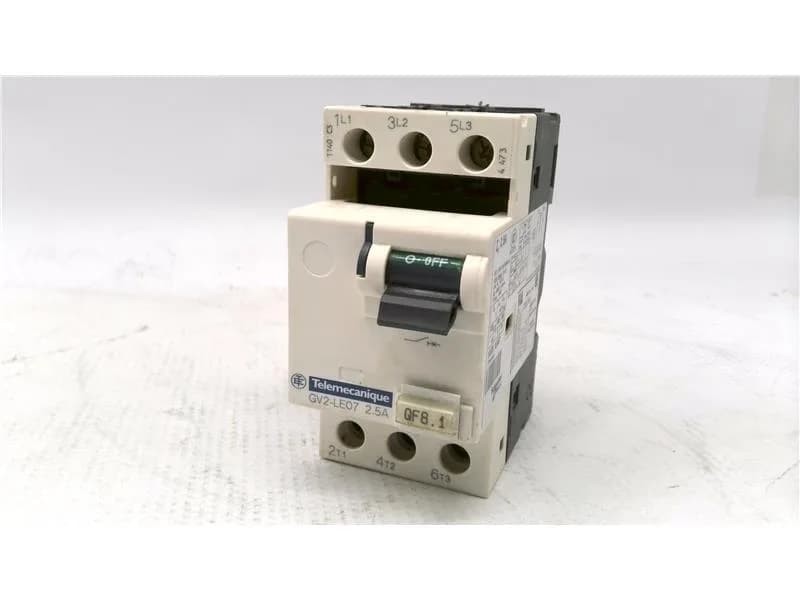

Schneider GV2-LE07 Manual Switch
MPNGV2-LE07
GV2-LE07 - MANUAL SWITCH by TELEMECANIQUE
$22.57Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Trip unit type | Magnetic |
| Voltage withstand | 6 kV IEC 60947-2 |
| Climatic withstand | IACS E10 |
| Voltage insulation | 690 V AC 50/60 Hz IEC 60947-2 |
| Poles | 3 |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Utilization category | Category A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1 |
| Ik degree of protection | IK04 |
| Mounting | Horizontal Vertical |
| Connections - terminals | Power circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end |
| Altitude max | <= 6561.68 ft (2000 m) |
| Depth | 78.486 |
All specifications
| Parameter | Value |
|---|---|
| Width | 45.72 |
| Height | 88.9 |
| Display_color_depth | Dark grey |
| Electrical life cycles | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In |
| Mechanical life cycles | 100000 cycles |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ |
| Range | TeSys Deca |
| Power | 750 |
| IP rating | IP20 IEC 60529 |
| Torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Fixing_mode | 35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate) |
| Control_type | Toggle |
| Frequency | 50/60 Hz IEC 60947-2 |
| Network_type | AC |
| Package_type | PCE |
| Resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Application_type | Motor protection |
| Supply voltage | 690 |
| Device short name | GV2LE |
| Breaking cap icu | 100 |
| Switching current | 2.5 |
| Storage temperature | -40...176 °F (-40...80 °C) |
| Mechanical robustness | Shocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz |
| Suitability for isolation | Yes IEC 60947-1 |
| Main_product_or_component_type | Motor circuit breaker |
| Operating temperature | -4 |
| Ordering and shipping details (Category) | US1CP1018402 |
MPN
GV2-LE07
