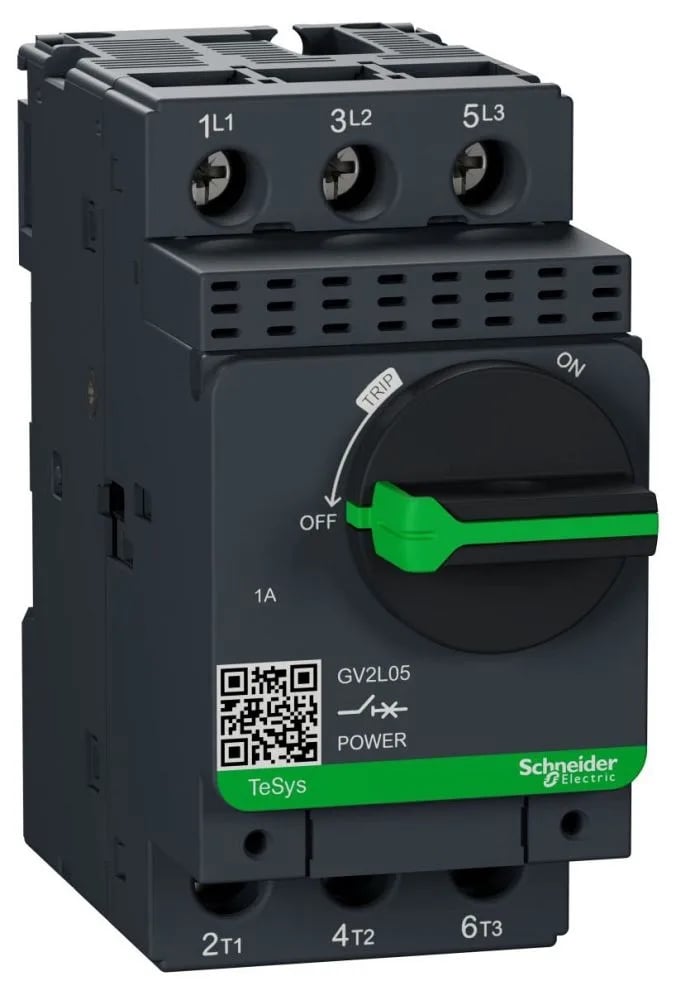

The Schneider Electric GV2L05 is a 3-pole motor circuit breaker from the TeSys Deca range, rated at 1 A for motor protection with a fixed magnetic trip set at 15.1 A per IEC 60947-2. It's sized for small motor applications: the 1 A line current matches motors in the 0.25–0.75 kW range at 400/415 V AC, depending on winding connection.
The fixed magnetic trip at 15.1 A handles the inrush of a 1 A motor without nuisance tripping; no adjustment needed. Power dissipation per pole is 1.8 W.
It carries EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335-2-40 Annex JJ certifications. That covers most industrial and commercial panel requirements globally.
Screw-clamp terminals accept 1–6 mm² solid or 1.5–6 mm² flexible wire (up to 4 mm² with ferrule). Tightening torque is 1.7 N·m.
Sourcing
This part is actively manufactured and can be sourced to order. Submit an RFQ for current pricing and lead time; we quote against your BOM line from our multi-source supply chain.
