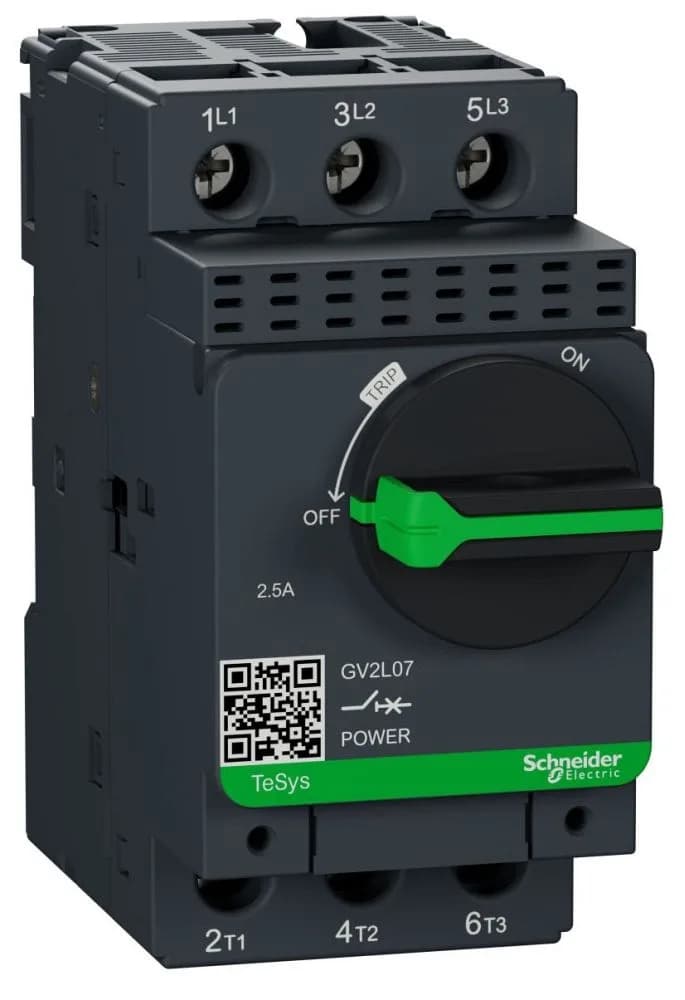

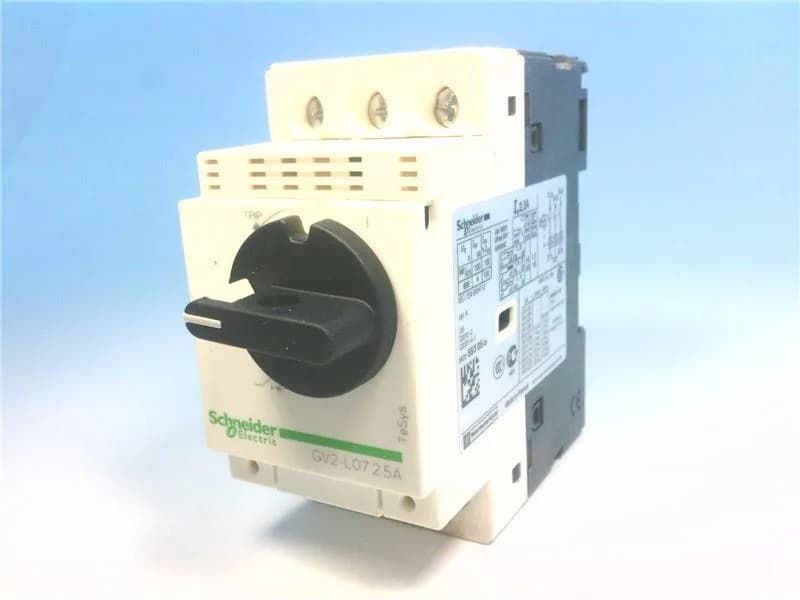

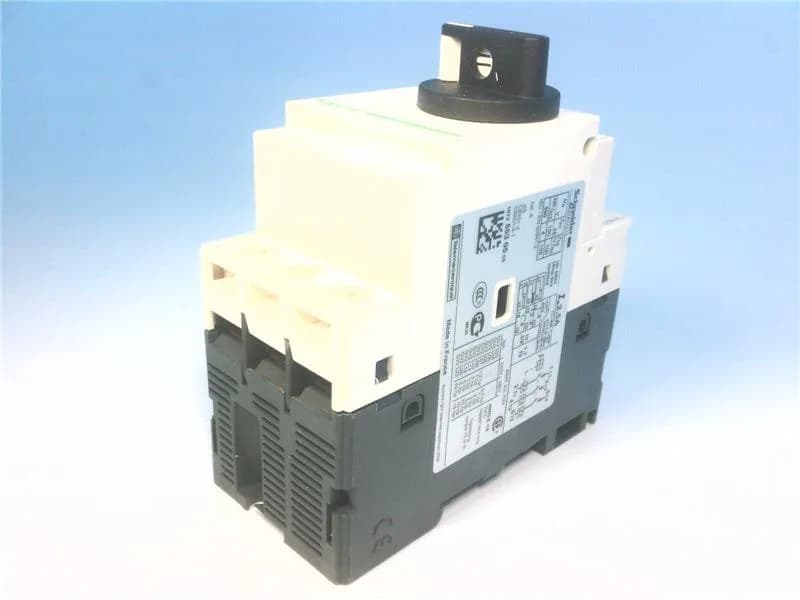

Schneider Electric GV2L07

TeSys GV2L07 Motor Circuit Breaker, 2.5 A

MPNGV2L07
Active

Schneider Electric TeSys GV2L07 motor circuit breaker, 2.5 A, 3-pole, TeSys Deca range, 100 kA breaking capacity at 400 V.

$33.02Ref. price · indicative, final on quote
Schneider Electric GV2L07 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2L07 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 4 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current2.5 A
Magnetic tripping current39 A
[Ith] conventional free air thermal current2.5 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2L07 additional specifications
ParameterValue
Motor power0.75 kW 400/415 V AC 50/60 Hz 1.1 kW 500 V AC 50/60 Hz 1.5 kW 690 V AC 50/60 Hz
Power dissipation per pole1.8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.8 in (97 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2L
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

This TeSys GV2L07 is a manual motor circuit breaker, rated 2.5 A line current with a magnetic trip set at 39 A. It's designed for a 0.75 kW motor at 400 V three-phase, or up to 1.5 kW at 690 V if you're running that voltage. The 3-pole unit breaks up to 100 kA at 400 V, so it handles a stiff fault without blinking. Rotary handle, DIN-rail mount, works in any orientation.

Mounting and terminals

Terminals are screw-clamp, accepting 1 to 6 mm² solid or 1.5 to 6 mm² flexible without ferrules. Torque to 1.7 N·m. The screw terminals are common for panel wiring; you'll have no trouble landing motor leads in there.

Frequently asked questions

What is GV2L07's overall dimensions?

Depth: 3.8 in (97 mm), Width: 1.8 in (45 mm), Height: 3.5 in (89 mm). Color: Dark grey.

What standards does GV2L07 comply with?

It complies with EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335-2-40 Annex JJ.

What is the breaking capacity at 400 V?

100 kA Icu at 400/415 V AC per IEC 60947-2, and same at 500 V. At 690 V it drops to 4 kA.
