Schneider Electric GV2L10

TeSys GV2L10 Motor Circuit Breaker, 6.3 A, 100 kA

MPNGV2L10
Active

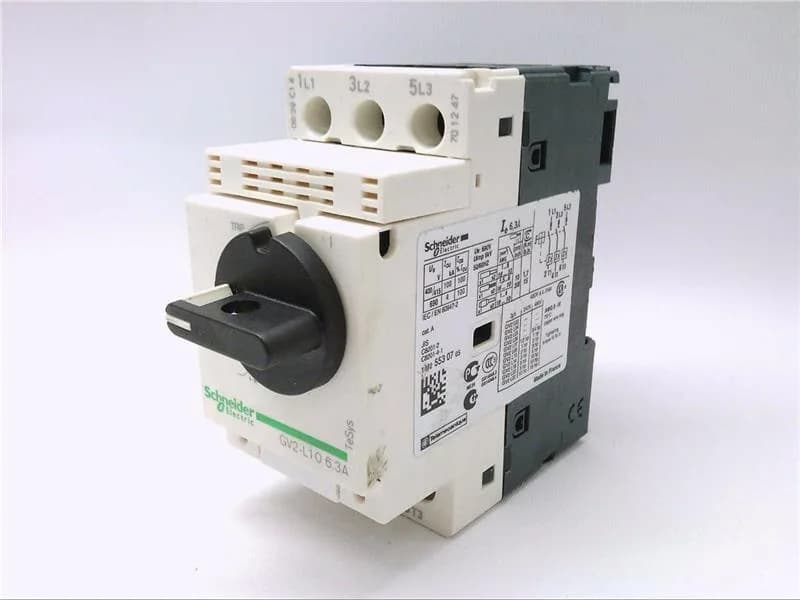

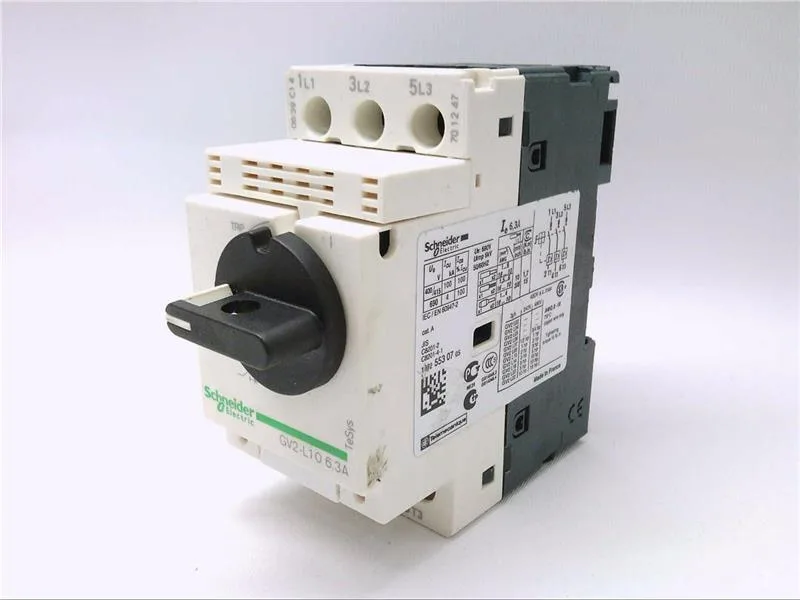

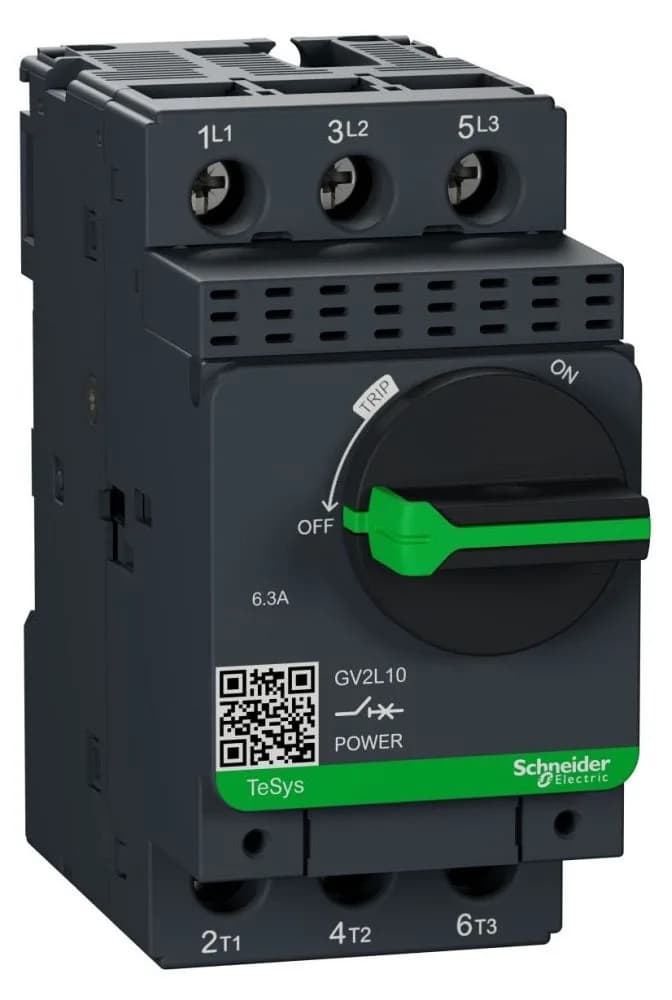

Schneider TeSys GV2L10 motor circuit breaker, 3-pole, 6.3 A, magnetic trip 91 A, 100 kA breaking capacity at 400 V AC, dark grey, IP20, DIN rail mount.

$30.56Ref. price · indicative, final on quote
Schneider Electric GV2L10 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2L10 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 4 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current6.3 A
Magnetic tripping current91 A
[Ith] conventional free air thermal current6.3 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2L10 additional specifications
ParameterValue
Motor power2.2 kW 400/415 V AC 50/60 Hz 3 kW 500 V AC 50/60 Hz 4 kW 690 V AC 50/60 Hz
Power dissipation per pole1.8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.8 in (97 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2L
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The TeSys GV2L10 is a 3-pole motor circuit breaker from Schneider's TeSys Deca range, sized for motor protection at 6.3 A rated current. Its magnetic-only trip unit picks up at 91 A, providing fast short-circuit interruption while leaving thermal overload protection to an external relay. The rotary handle allows manual switching, and the device is marked suitable for isolation per IEC 60947-1.

Magnetic trip at 91 A clears shorts quickly; pair with a separate overload relay since there is no thermal element. Insulation rated 690 V. The magnetic-only trip makes this a compact option for motor starters where the overload relay handles thermal protection separately. The electrical endurance is rated at 100,000 cycles under AC-3 duty at rated current, matching typical contactor life in motor start applications.

Screw-clamp power terminals accept 1–6 mm² solid or stranded wire (1–4 mm² with ferrule). Tighten to 1.7 N·m. The housing is dark grey with IP20 protection and IK04 impact resistance. Depth is 97 mm, width 45 mm — fits standard distribution boards with room for auxiliary contacts on the side. The breaker can be mounted horizontally or vertically. Fire resistance tested at 960 °C per IEC 60695-2-11.

Frequently asked questions

What is the color of the GV2L10?

The housing color is dark grey.

What is the depth of the GV2L10?

The depth is 97 mm (3.8 in).

What compliance standards does the GV2L10 meet?

It meets EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335-2-40 Annex JJ. It also has IP20 and IK04 protection ratings and fire resistance at 960 °C.
