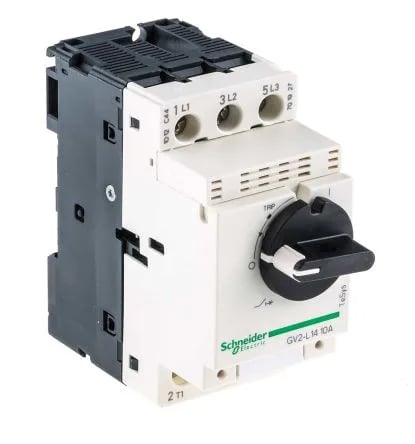

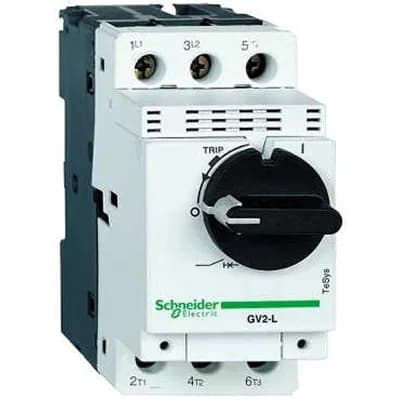

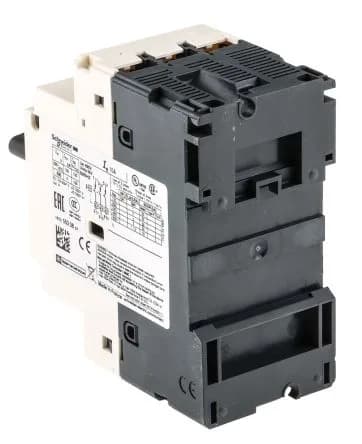

Schneider GV2L14 Manual Starter
MPNGV2L14
Active
TeSys Deca Manual Starter and Protector, magnetic circuit protector, rotary handle, 10 A|TeSys Deca Manual Starter and Protector, magnetic circuit protector, rotary handle, 10 A, screw clamp terminals
$36.83Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Rotary handle |
| Network type | AC |
| Product or component type | Motor circuit breaker |
| Climatic withstand | conforming to IACS E10 |
| Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Current | 10 A |
| Magnetic tripping current | 149 A |
| [Ith] conventional free air thermal current | 14 A conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
All specifications
| Parameter | Value |
|---|---|
| Motor power | 3 kW at 400/415 V AC 50/60 Hz 4 kW at 400/415 V AC 50/60 Hz 4 kW at 500 V AC 50/60 Hz 5.5 kW at 690 V AC 50/60 Hz 7.5 kW at 690 V AC 50/60 Hz |
| Power dissipation per pole | 1.8 W |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Poles description | 3P |
| Rated duty | Uninterrupted conforming to IEC 60947-4-1 |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting position | Horizontal Vertical |
| Connections - terminals | Power circuit: screw clamp terminal 2 cable(s) 1...6 mm² - solid Power circuit: screw clamp terminal 2 cable(s) 1.5...6 mm² - flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 1...4 mm² - flexible with cable end |
| Operating altitude | <= 2000 m |
| Depth | 97 mm |
| Width | 45 mm |
| Color | Dark grey |
| Height | 89 mm |
| Product weight | 0.33 kg |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Mechanical durability | 100000 cycles |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ |
| Range | TeSys Deca |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 2 x M4 screws) |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Device short name | GV2L |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Mechanical robustness | Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -20...60 °C |
MPN
GV2L14
