Schneider Electric GV2L16

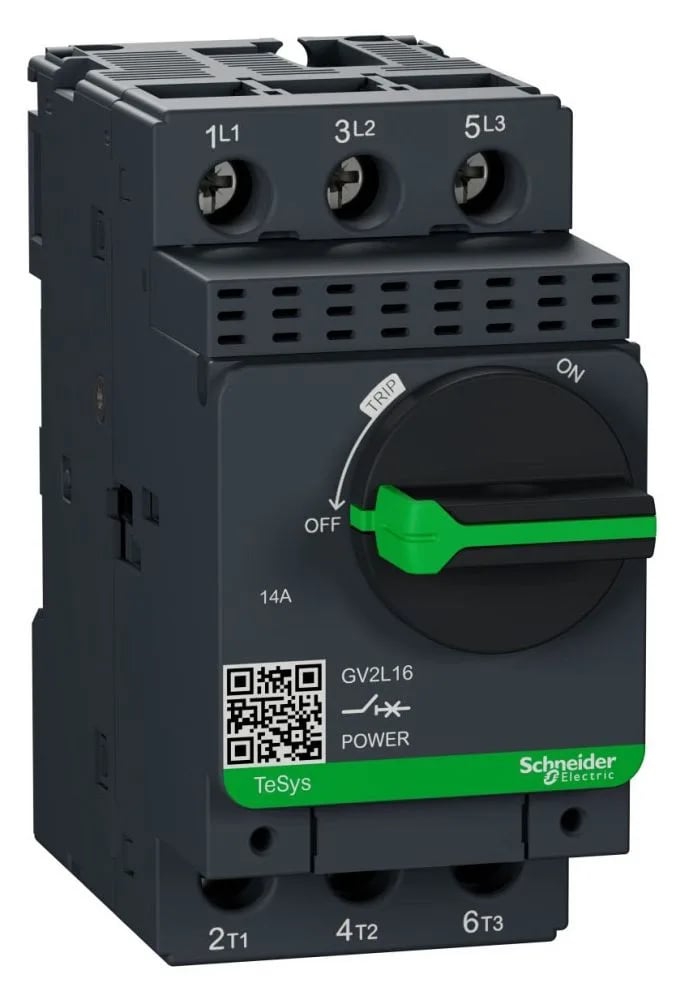

Schneider GV2L16 Motor Circuit Breaker, 14 A, 3-Pole

MPNGV2L16
Active

Schneider Electric TeSys Deca GV2L16 motor circuit breaker, 3-pole, 14 A In, magnetic trip, breaking capacity 100 kA at 230/240 V AC, suitable for motor protection in motor starters.

$36.83Ref. price · indicative, final on quote
Schneider Electric GV2L16 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2L16 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandconforming to IACS E10
Voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
Breaking capacity100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
Current14 A
Magnetic tripping current253.4 A
[Ith] conventional free air thermal current14 A conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

All specifications

GV2L16 additional specifications
ParameterValue
Motor power5.5 kW at 400/415 V AC 50/60 Hz 7.5 kW at 500 V AC 50/60 Hz 9 kW at 690 V AC 50/60 Hz 11 kW at 690 V AC 50/60 Hz
Power dissipation per pole1.8 W
Network frequency50/60 Hz conforming to IEC 60947-2
Poles description3P
Rated dutyUninterrupted conforming to IEC 60947-4-1
Utilisation categoryCategory A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 conforming to IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit: screw clamp terminal 2 cable(s) 1...6 mm² - solid Power circuit: screw clamp terminal 2 cable(s) 1.5...6 mm² - flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 1...4 mm² - flexible with cable end
Operating altitude<= 2000 m
Depth97 mm
Width45 mm
ColorDark grey
Height89 mm
Product weight0.33 kg
Electrical durability100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
Fixing mode35 mm symmetrical DIN rail: clipped Panel: screwed (with 2 x M4 screws)
Fire resistance960 °C conforming to IEC 60695-2-11
Device short nameGV2L
Tightening torque1.7 N.m - on screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz
Suitability for isolationYes conforming to IEC 60947-1
Ambient air temperature for storage-40...80 °C
Ambient air temperature for operation-20...60 °C

Product details

Integrator's Spec Recap – GV2L16

The GV2L16 is a 3-pole motor circuit breaker from the TeSys Deca range, rated 14 A continuous with a magnetic trip set at 253.4 A. Breaking capacity reaches 100 kA Icu at 230/240 V AC, dropping to 50 kA at 400/415 V AC – adequate for most industrial fault levels. The unit is DIN-rail or panel mountable (2 x M4 screws) and occupies 45 mm width on rail. Power dissipation is 1.8 W per pole; electrical durability is 100,000 cycles under AC-3 at 415 V. Ambient storage range -40 to 80 °C covers warehouse extremes.

Lifecycle & Sourcing Status

Multiple compliance documents are available – the breaker carries EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335-2-40 Annex JJ. These satisfy most global project requirements for motor protection components.

Key Ratings – Fit for Your BOM

Rated operational voltage 690 V AC, insulation voltage 690 V AC. The magnetic trip set at 253.4 A is fixed, and AC-3 and AC-3e categories match induction motor starting duty. Terminals accept up to 6 mm² solid or 4 mm² flexible with ferrule, torque 1.7 N·m. IK04 impact protection and IP20 finger-safe terminals suit panel installation.

Frequently asked questions

What is the GV2L16's range?

It belongs to the TeSys Deca range, specifically the TeSys GV2 line of motor circuit breakers.

What compliance documentation does the GV2L16 meet?

It complies with EN/IEC 60947-2 and 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335-2-40 Annex JJ. RoHS/REACH status isn't listed in the core spec but the UL and IEC marks cover most global projects.
