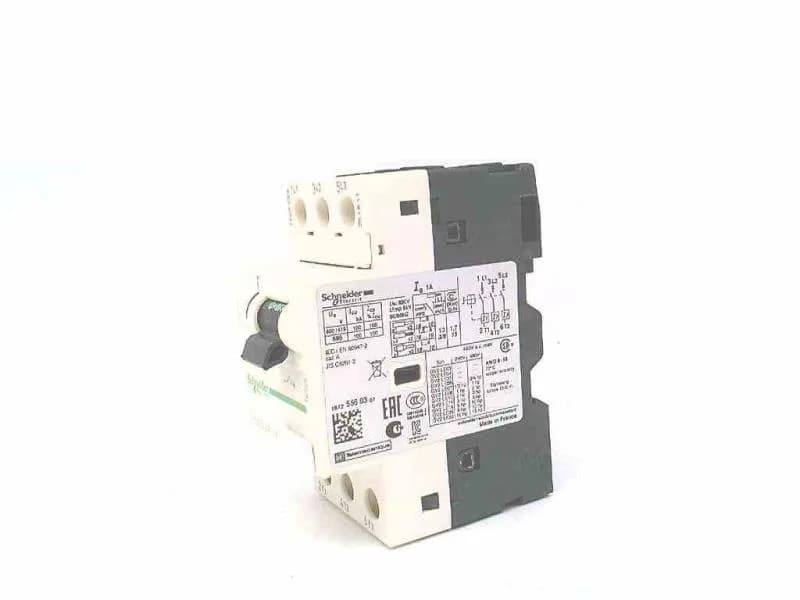

Schneider Electric GV2LE05

Schneider Electric GV2LE05 Motor Circuit Breaker, 1 A, 100 k

MPNGV2LE05
Obsolete

Manufacturer: Schneider Electric, Series: TeSys Deca, Type: Motor circuit breaker, Code: GV2LE05, Rated current: 1 A, Breaking capacity: 100 kA, Poles: 3, Mounting: DIN rail

$20.32Ref. price · indicative, final on quote
Schneider Electric GV2LE05 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2LE05 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current1 A
Magnetic tripping current15.1 A
[Ith] conventional free air thermal current1 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2LE05 additional specifications
ParameterValue
Motor power0.25 kW 400/415 V AC 50/60 Hz 0.37 kW 400/415 V AC 50/60 Hz 0.37 kW 500 V AC 50/60 Hz 0.55 kW 690 V AC 50/60 Hz 0.75 kW 690 V AC 50/60 Hz
Power dissipation per pole1.8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS1CP1018402
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2LE
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The GV2LE05 3-pole motor circuit breaker from the TeSys Deca range handles motor protection at 1 A line current with a 100 kA breaking capacity at 400 V AC. Its magnetic trip fires at 15.1 A, which covers the inrush of motors from 0.25 to 0.75 kW on 400/415 V supplies. Suitable for isolation per IEC 60947-1. Rated for AC-3 and AC-3e duty cycles, it withstands 100,000 electrical operations at rated current. Power dissipation per pole is 1.8 W. Certified to EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1, with fire resistance to 960 °C (IEC 60695-2-11).

Screw clamp terminals accept 1–6 mm² solid or 1.5–6 mm² flexible conductors; tighten to 1.7 N·m. The breaker is IP20 finger-safe and meets IK04 impact protection. Withstands 30 Gn shock for 11 ms and 5 Gn vibration over 5–150 Hz.
