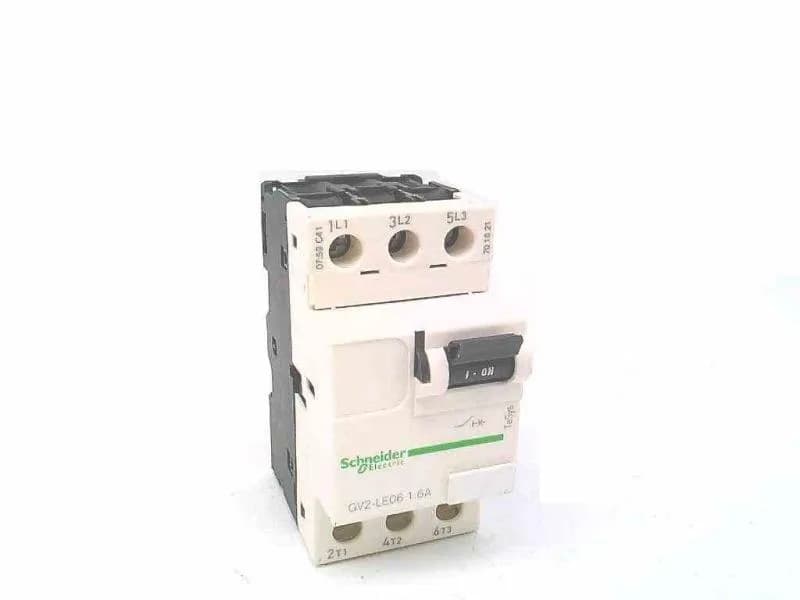

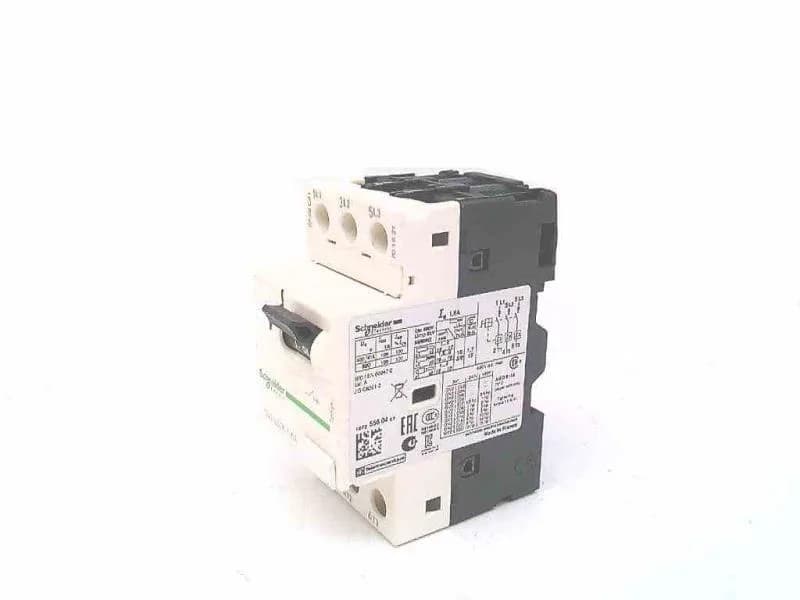

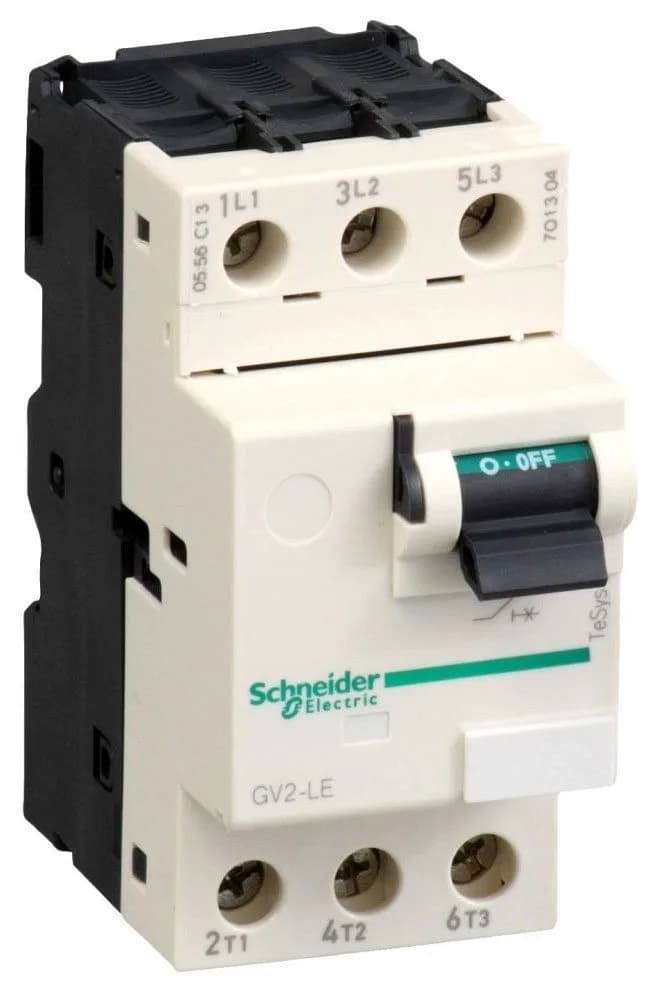

Schneider Electric GV2LE06

Schneider Electric GV2LE06 Motor Circuit Breaker, 1.6 A, 100

MPNGV2LE06
Active

Schneider Electric TeSys Deca GV2LE06 motor circuit breaker, 3-pole, 1.6 A rated, 100 kA breaking capacity, 690 V AC, DIN rail mount, dark grey.

$20.32Ref. price · indicative, final on quote
Schneider Electric GV2LE06 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2LE06 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current1.6 A
Magnetic tripping current26.2 A
[Ith] conventional free air thermal current1.6 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2LE06 additional specifications
ParameterValue
Motor power0.55 kW 400/415 V AC 50/60 Hz 0.55 kW 500 V AC 50/60 Hz 0.75 kW 500 V AC 50/60 Hz 1.1 kW 690 V AC 50/60 Hz
Power dissipation per pole1.8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS1CP1018402
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2LE
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Fit Check for the BOM Line

The GV2LE06 is a fixed magnetic trip motor circuit breaker from the TeSys Deca family. Three poles, rated 1.6 A continuous, with a 100 kA breaking capacity across 230–690 V AC. Isolation rated per IEC 60947-1 — so this single device handles motor branch protection and disconnect duty. The magnetic trip is factory-set at 26.2 A, which means it clears short circuits before the contactor has to sweat.

DIN Rail and Panel Reality

It takes 45 mm width on the rail (that's three modular units), 89 mm tall, 78.5 mm deep. Power terminals accept solid up to 6 mm² or flexible with ferrule up to 4 mm². Torque the screw clamps to 1.7 N·m — no superhuman grip required.

Production Status for the Spares Bin

Lifecycle stage reads 'current' — meaning it's still rolling off Schneider's lines. No NRND flag, no last-time-buy date to chase. If you are populating a spares crib or locking down a BOM for a repeat build, you are not staring down an obsolescence cliff.

Frequently asked questions

What is GV2LE06's listed color?

Dark grey.

What is GV2LE06's depth?

3.09 inches (78.5 mm).

What compliance standards does GV2LE06 meet?

EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335-2-40 Annex JJ.
