Schneider Electric GV2LE16

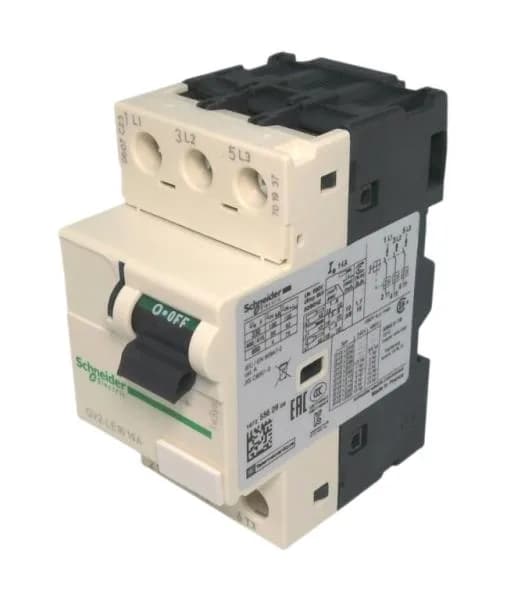

Schneider GV2LE16 TeSys Motor Circuit Breaker, 14 A

MPNGV2LE16
Obsolete

Schneider TeSys Deca GV2LE16 motor circuit breaker, 3-pole, 14 A, magnetic trip 253.4 A, breaking capacity 100 kA, dark grey, DIN rail mount.

$22.86Ref. price · indicative, final on quote
Schneider Electric GV2LE16 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2LE16 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current14 A
Magnetic tripping current253.4 A
[Ith] conventional free air thermal current14 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 50 % 400/415 V AC 50/60 Hz IEC 60947-2 50 % 440 V AC 50/60 Hz IEC 60947-2 75 % 500 V AC 50/60 Hz IEC 60947-2 75 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2LE16 additional specifications
ParameterValue
Motor power5.5 kW 400/415 V AC 50/60 Hz 7.5 kW 500 V AC 50/60 Hz 9 kW 690 V AC 50/60 Hz 11 kW 690 V AC 50/60 Hz
Power dissipation per pole1.8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS1CP1018402
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2LE
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

GV2LE16 Motor Circuit Breaker — Key Specs at a Glance

The Schneider GV2LE16 is a 3-pole motor circuit breaker from the TeSys Deca range, rated at 14 A line current and purpose-built for motor protection. It provides magnetic tripping at 253.4 A for short-circuit protection and delivers a breaking capacity up to 100 kA at 230/240 V AC.

The 253.4 A magnetic trip setting means the breaker reacts instantly to high fault currents, clearing short circuits before motor or cable damage occurs. With up to 100 kA interrupting capacity at 230 V, the GV2LE16 handles severe short-circuit conditions typical in industrial panels, often allowing you to skip upstream current-limiting fuses. Rated for motor duty in AC-3 and AC-3e utilization categories, it handles the high inrush of induction motors while maintaining reliable overload protection.

Compliance documentation includes IEC 60947-2, IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1 — all standards your QA or shutdown planner will ask for.

Frequently asked questions

What is the color of the GV2LE16?

The GV2LE16 is dark grey.

What is the depth of the GV2LE16?

The depth is 3.09 inches (78.5 mm).

What compliance standards does the GV2LE16 meet?

It complies with EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1, among others.
