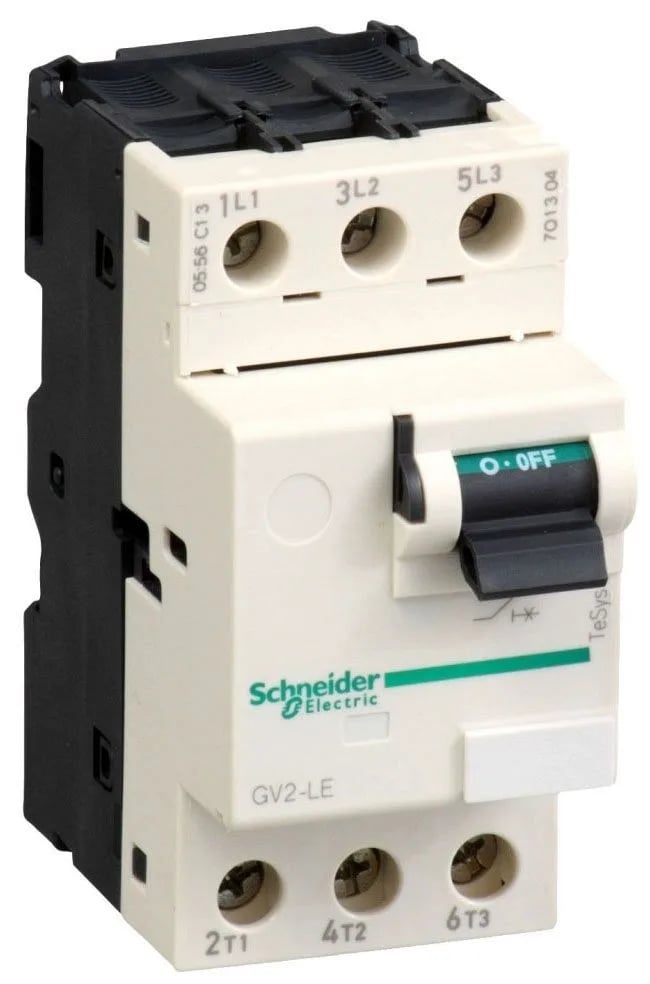

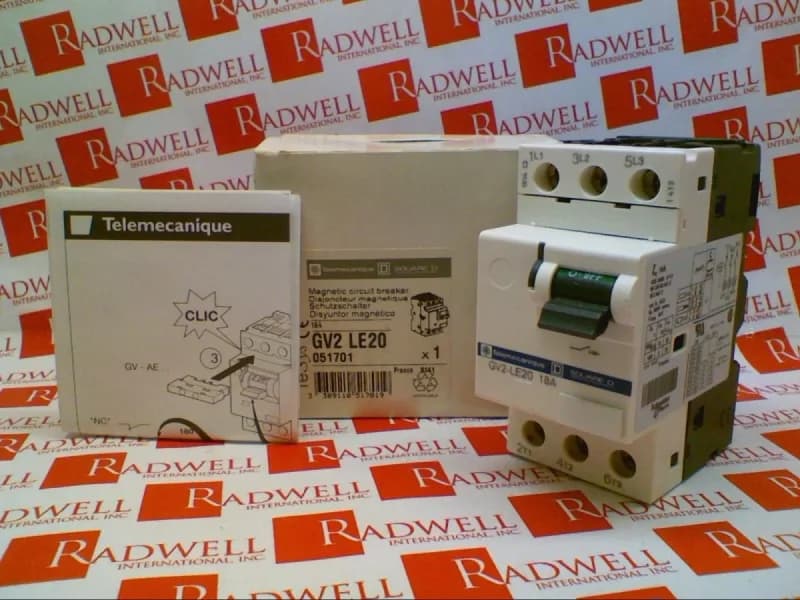

Schneider Electric TeSys Deca GV2LE20 motor circuit breaker, 18 A rated, 3-pole, magnetic trip at 341 A, breaking capacity up to 100 kA.
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Motor circuit breaker |
| Climatic withstand | IACS E10 |
| Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 18 A |
| Magnetic tripping current | 341 A |
| [Ith] conventional free air thermal current | 18 A IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2 50 % 400/415 V AC 50/60 Hz IEC 60947-2 50 % 440 V AC 50/60 Hz IEC 60947-2 75 % 500 V AC 50/60 Hz IEC 60947-2 75 % 690 V AC 50/60 Hz IEC 60947-2 |
| Parameter | Value |
|---|---|
| Motor power | 7.5 kW 400/415 V AC 50/60 Hz 9 kW 500 V AC 50/60 Hz 15 kW 690 V AC 50/60 Hz |
| Power dissipation per pole | 1.8 W |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Poles description | 3P |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Utilisation category | Category A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1 |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Mounting position | Horizontal Vertical |
| Connections - terminals | Power circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Color | Dark grey |
| Depth | 3.09 in (78.5 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Electrical durability | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In |
| Mechanical durability | 100000 cycles |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ |
| Range | TeSys Deca |
| Category | US1CP1018402 |
| Fixing mode | 35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Device short name | GV2LE |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Mechanical robustness | Shocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz |
| Suitability for isolation | Yes IEC 60947-1 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
The GV2LE20: Magnetic tripping at 341 A provides instantaneous short-circuit protection, set non-adjustable per the GV2 design for motor branch circuits. Breaking capacity reaches 100 kA at 230/240 V AC (Icu per IEC 60947-2) but drops with voltage; at 400 V it is 15 kA, at 690 V it is 3 kA. This breaker suits Category A and AC-3 utilization, covering induction motor starting and switching. Power dissipation per pole is 1.8 W.
The listed color is Dark grey.
Depth is 3.09 in (78.5 mm).
It complies with EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335-2-40 Annex JJ.
