Schneider Electric GV2LE22

Schneider Electric GV2LE22 Motor Circuit Breaker, 25 A, 3-Po

MPNGV2LE22
Obsolete

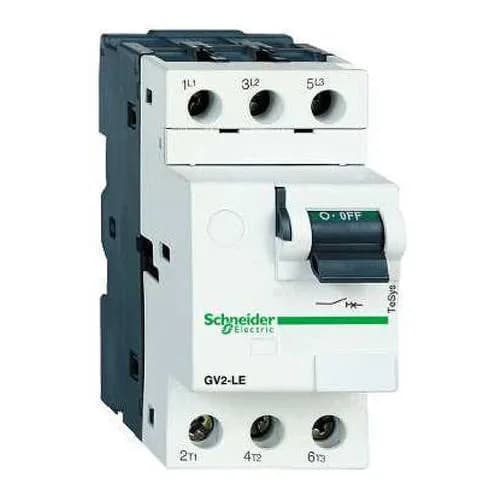

Schneider Electric TeSys Deca GV2LE22 motor circuit breaker, 3-pole, 25 A line rated current, magnetic trip, 9 kW at 400 V AC.

$22.86Ref. price · indicative, final on quote
Schneider Electric GV2LE22 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2LE22 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 6 kA Icu 440 V AC 50/60 Hz IEC 60947-2 4 kA Icu 500 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current25 A
Magnetic tripping current388.3 A
[Ith] conventional free air thermal current25 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 40 % 400/415 V AC 50/60 Hz IEC 60947-2 50 % 440 V AC 50/60 Hz IEC 60947-2 75 % 500 V AC 50/60 Hz IEC 60947-2 75 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2LE22 additional specifications
ParameterValue
Motor power9 kW 400/415 V AC 50/60 Hz 11 kW 400/415 V AC 50/60 Hz 11 kW 500 V AC 50/60 Hz 15 kW 500 V AC 50/60 Hz 18.5 kW 690 V AC 50/60 Hz
Power dissipation per pole1.8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS1CP1018402
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2LE
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The GV2LE22: The 25 A line rating sets the continuous current it can pass; the magnetic trip at 388.3 A clears short circuits fast. Breaking capacity steps down with voltage – 50 kA at 240 V, 15 kA at 400 V, down to 3 kA at 690 V – so verify the available fault current at your system voltage. Motor power ratings: 9 kW at 400 V AC, 11 kW at 500 V, 18.5 kW at 690 V. The trip unit is magnetic only (no thermal element), so it pairs with an overload relay for full motor protection.

Mounting and wiring highlights

Screw clamp terminals accept 1–6 mm² solid or stranded (1–4 mm² flexible with ferrule). Torque to 1.7 N·m. IP20 finger-safe, IK04 impact rated.

Frequently asked questions

What is GV2LE22's listed color?

Dark grey.

What is GV2LE22's depth?

3.09 inches (78.5 mm).

What compliance documentation does this brand provide for GV2LE22?

The part is certified to EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1, plus IEC/EN 60335-2-40 Annex JJ for fire resistance at 960 °C.
