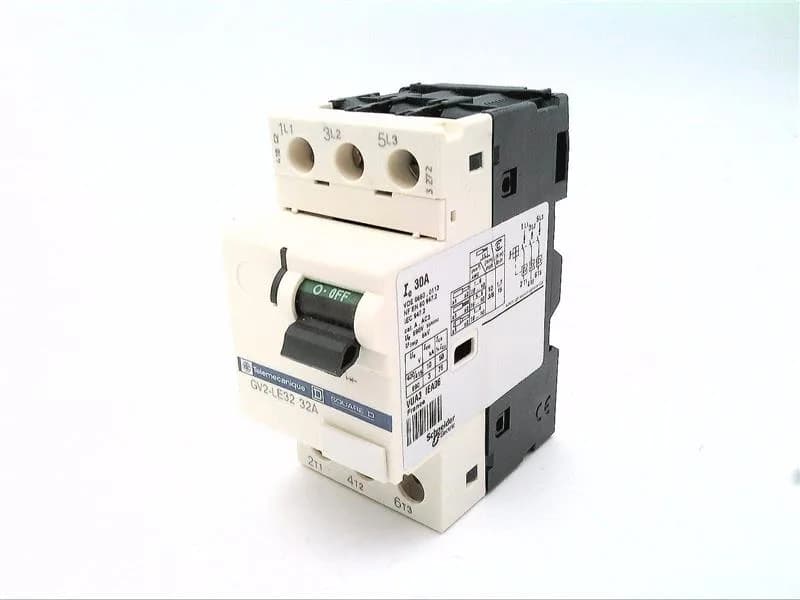

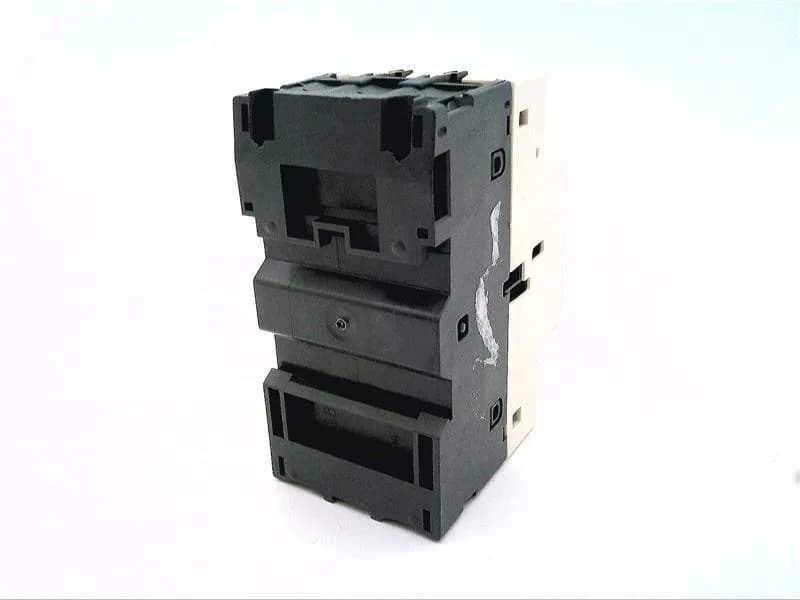

Schneider Electric GV2LE32

Schneider GV2LE32 TeSys Deca Motor Circuit Breaker, 32A, 3P

MPNGV2LE32
Active

Schneider Electric TeSys Deca GV2LE32, 3-pole motor circuit breaker, 32 A rated, magnetic trip 537.6 A, breaking capacity 50 kA at 230/240 V AC.

$23.66Ref. price · indicative, final on quote
Schneider Electric GV2LE32 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2LE32 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 10 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 6 kA Icu 440 V AC 50/60 Hz IEC 60947-2 4 kA Icu 500 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current32 A
Magnetic tripping current537.6 A
[Ith] conventional free air thermal current32 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 50 % 400/415 V AC 50/60 Hz IEC 60947-2 50 % 440 V AC 50/60 Hz IEC 60947-2 75 % 500 V AC 50/60 Hz IEC 60947-2 75 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2LE32 additional specifications
ParameterValue
Motor power15 kW 400/415 V AC 50/60 Hz 18.5 kW 500 V AC 50/60 Hz 22 kW 690 V AC 50/60 Hz
Power dissipation per pole1.8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-2 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS1CP1018402
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2LE
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The GV2LE32: Sized for 15 kW at 400/415 V or 18.5 kW at 500 V, 22 kW at 690 V. The magnetic trip is non-adjustable, so this breaker is a fixed-coordination match for motors up to that output. Thermal protection is inherent in the bi-metal element; the magnetic element handles short-circuits only. Mechanical durability is 100,000 cycles, electrical durability 100,000 cycles under AC-3 duty at rated current — line-side switching for frequent start/stop profiles.

Occupies 45 mm (1.8 in) of DIN rail width. Clips onto 35 mm symmetrical rail or can be panel-mounted with an adaptor plate. Power terminals accept 1–6 mm² solid or 1.5–6 mm² flexible wire; torque to 1.7 N·m. IP20 finger-safe terminals, IK04 impact resistance. Ambient rating up to 2000 m altitude; no derating below 40 °C ambient.

Frequently asked questions

What color is the GV2LE32?

The device is dark grey.

What is the depth of the GV2LE32?

Depth is 78.5 mm (3.09 in).

What compliance documentation does the GV2LE32 carry?

The breaker complies with EN/IEC 60947-4-1, EN/IEC 60947-2, and IEC 60335-2-40 Annex JJ. Fire resistance per IEC 60695-2-11 at 960 °C.
