Schneider Electric GV2P04AE11TQ — Miniature Circuit Breakers (MCB)

TeSys GV2P04AE11TQ Motor Circuit Breaker, 0.63 A, 100 kA

MPNGV2P04AE11TQ
Obsolete

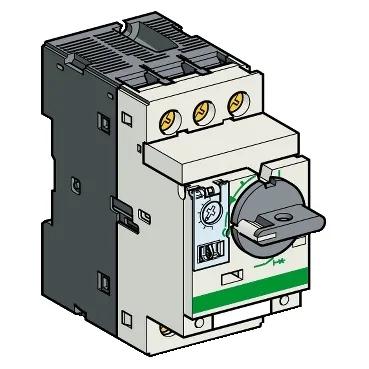

Schneider Electric TeSys Deca GV2P04AE11TQ, motor circuit breaker, 0.63 A, thermal-magnetic, 100 kA Icu, 3P, IP20, DIN rail.

Schneider Electric GV2P04AE11TQ datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

GV2P04AE11TQ — Identification
ParameterValue
Product nameTeSys GV2
Product rangeTeSys Deca
Product/component typeMotor circuit breaker
Device applicationMotor protection
GV2P04AE11TQ — Ratings
ParameterValue
Rated current (In)0.63 A
Poles configuration3P
Breaking capacity100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated operational voltage (Ue)690 V AC 50/60 Hz conforming to IEC 60947-2
Rated insulation voltage (Ui)690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage (Uimp)6 kV conforming to IEC 60947-2
Network type (AC/DC)AC
Network frequency50/60 Hz conforming to IEC 60947-2
Utilisation categoryCategory A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1
GV2P04AE11TQ — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Suitability for isolationYes conforming to IEC 60947-1
Electrical durability (cycles)100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In
Mechanical durability (cycles)100000 cycles
GV2P04AE11TQ — Mechanical
ParameterValue
Control typeRotary handle
Terminal connection typePower circuit: screw clamp terminal 2 cable(s) 1...6 mm²solid Power circuit: screw clamp terminal 2 cable(s) 1.5...6 mm²flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 1...4 mm²flexible with cable end
Terminal tightening torque1.7 N.m - on screw clamp terminal
Width45 mm
Height89 mm
Depth97 mm
GV2P04AE11TQ — Environmental
ParameterValue
Operating ambient temperature-20...60 °C
Storage ambient temperature-40...80 °C
IP degree of protectionIP20 conforming to IEC 60529
GV2P04AE11TQ — Approvals
ParameterValue
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
GV2P04AE11TQ — Electrical
ParameterValue
[Ics] rated service short-circuit breaking capacity100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

Product details

That 100 kA rating holds at 400/415 V and even at 690 V, so this part covers high-fault installations without needing a current-limiting upstream breaker.

This 3-pole breaker clips onto a 35 mm symmetrical DIN rail or mounts to a panel with two M4 screws. Power connections accept up to 6 mm² solid or 4 mm² flexible with ferrule, torqued to 1.7 N·m.

Motor protection specifics

Rated at 0.63 A, this breaker protects motors drawing up to 0.12 kW at 400/415 V AC or 0.37 kW at 690 V AC. The magnetic trip threshold is set at 9.3 A — roughly 15× In — so it clears short-circuits fast without nuisance tripping on motor inrush. Phase failure sensitivity is built in per IEC 60947-4-1, meaning it will trip if one phase drops out, preventing single-phasing damage. Electrical durability is rated at 100,000 cycles under AC-3 duty at 415 V, matching typical motor-starting service life.

Frequently asked questions

What is the closest alternative to GV2P04AE11TQ in the TeSys Deca family?

Within the same TeSys Deca GV2P series, the closest alternative would be a different current rating — the frame size and mounting are identical, only the thermal-magnetic trip setting changes. For a pin-compatible drop-in at a different motor current, order the GV2P with the appropriate In rating.

What compliance documentation does Schneider provide for GV2P04AE11TQ?

The part carries EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1 certifications. Fire resistance is tested to 960 °C per IEC 60695-2-11. Standard RoHS and REACH declarations are available from Schneider Electric's documentation portal for the TeSys Deca range.

What is the depth of GV2P04AE11TQ?

The depth is 97 mm, with a width of 45 mm and height of 89 mm — fits a standard 45 mm modular DIN-rail slot.

What is the range of GV2P04AE11TQ?

It belongs to the TeSys Deca range, specifically the TeSys GV2 series of motor circuit breakers.

MPN
GV2P04AE11TQ
