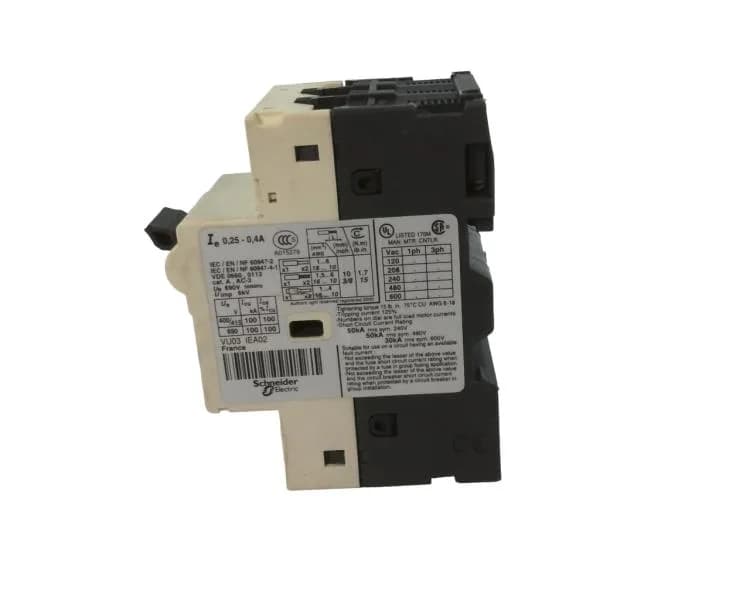

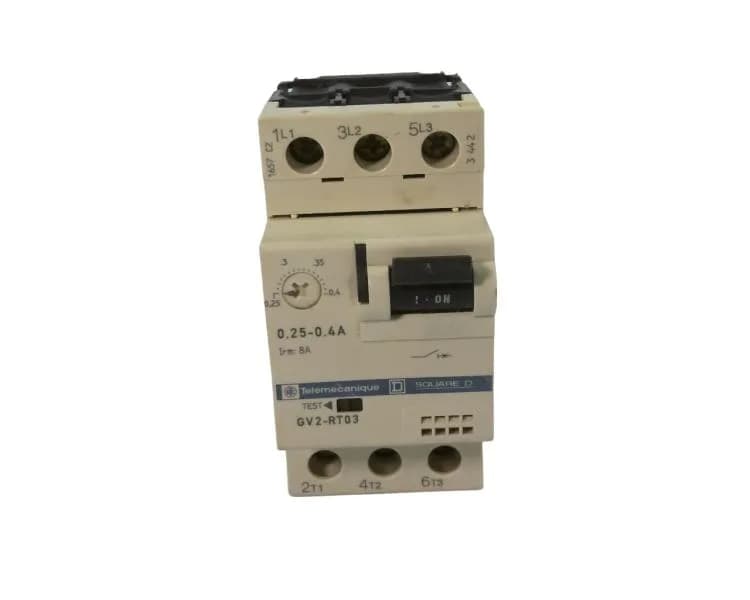

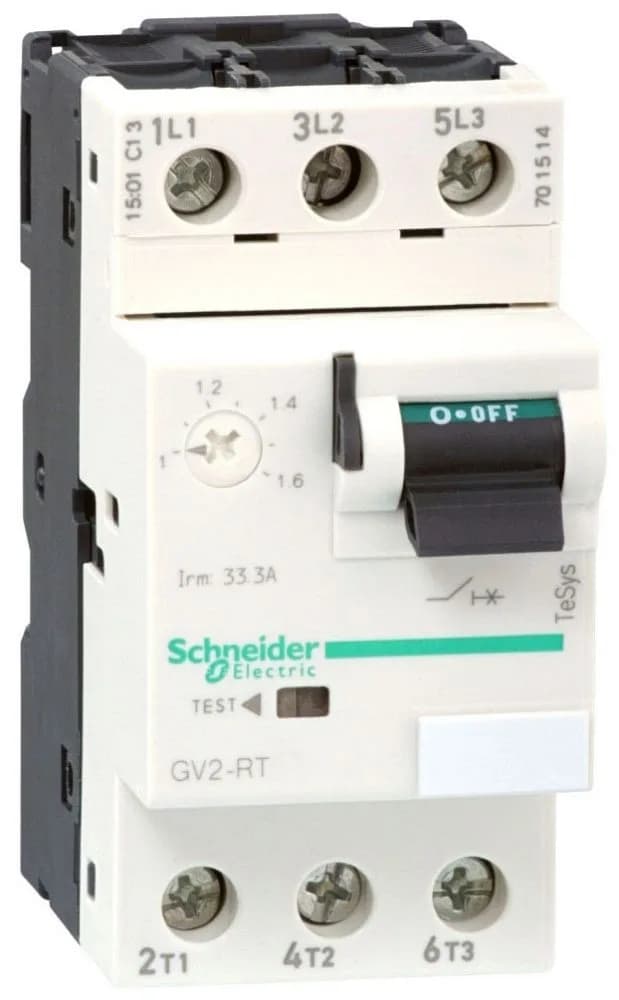

Schneider Electric GV2RT03

GV2RT03 TeSys Deca Motor Circuit Breaker, 0.4 A, 100 kA

MPNGV2RT03
Active

Schneider Electric, TeSys Deca, GV2RT03, Motor Circuit Breaker, 0.4 A, 3-Pole, Thermal-Magnetic, 100 kA Breaking Capacity.

$36.00Ref. price · indicative, final on quote
Schneider Electric GV2RT03 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2RT03 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current0.4 A
Magnetic tripping current8 A
[Ith] conventional free air thermal current0.4 A IEC 60947-2
Motor power0.06 kW 220/230 V AC 50/60 Hz motor protection high peak current 0.09 kW 400/415 V AC 50/60 Hz motor protection high peak current 0.09 kW 440 V AC 50/60 Hz motor protection high peak current 0.12 kW 440 V AC 50/60 Hz motor protection high peak current

All specifications

GV2RT03 additional specifications
ParameterValue
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2RT
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection Transformer
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range0.25...0.4 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The GV2RT03 from Schneider's TeSys Deca range is a thermal-magnetic motor circuit breaker rated at 0.4 A, sized for fractional-horsepower motors or small transformers. Magnetic trip fires at 8 A (20 × In), which avoids nuisance trips on moderate motor starts but still reaches a short circuit fast.

Occupies 45 mm width three-pole footprint — fits standard ROW panel grid. Terminals accept 1 to 6 mm² solid or flexible cable; tighten to 1.7 N·m. Front toggle allows manual on/off and trip reset. Rated IP20, so suitable for enclosed panel use without additional shrouding.

Listed as current production.

Frequently asked questions

What is GV2RT03's depth?

Listed depth is 3.09 in (78.5 mm).

What range does GV2RT03 belong to?

It is part of the TeSys Deca range, Schneider's global motor protection family.

What compliance documentation covers GV2RT03?

It meets EN/IEC 60947-2 and EN/IEC 60947-4-1, and it is suitable for isolation per IEC 60947-1. Specific RoHS or UL declarations are not in this evidence set; verify with the manufacturer for those certifications.

MPN
GV2RT03
