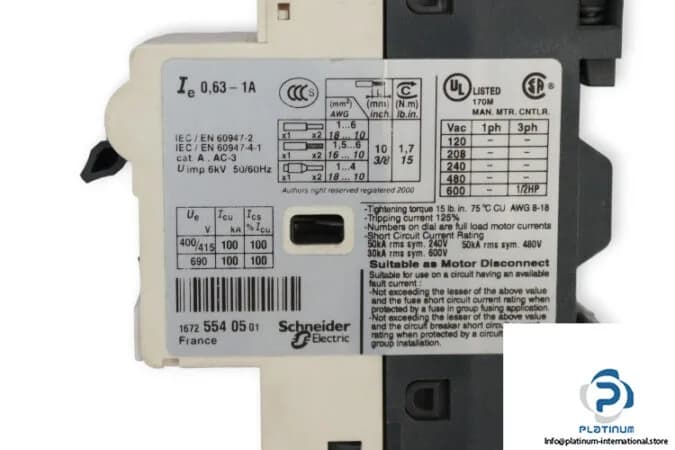

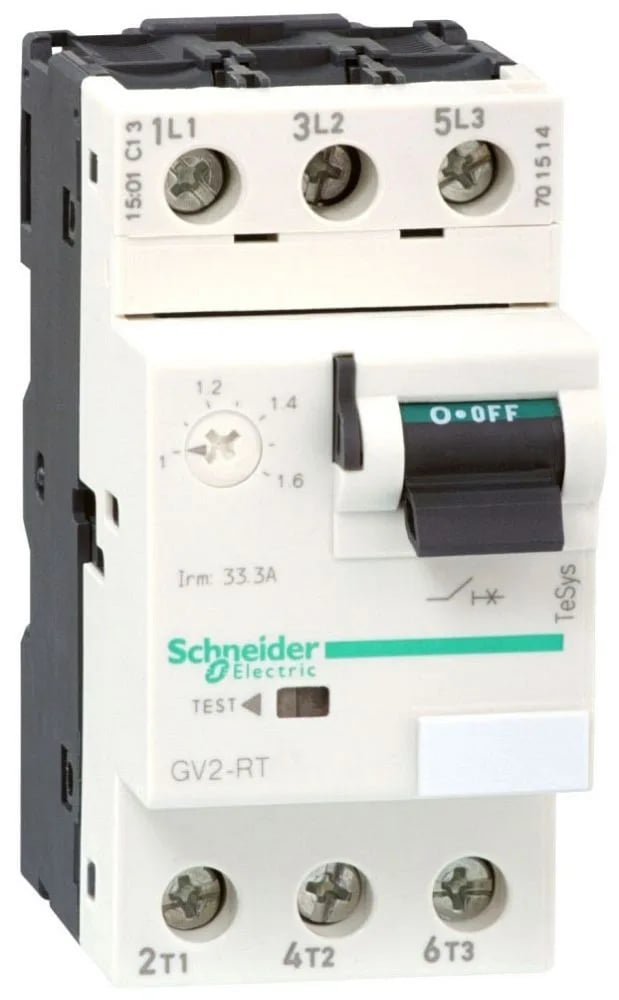

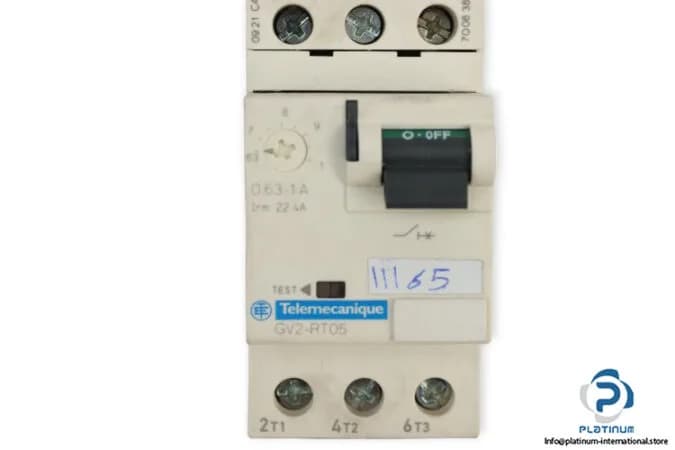

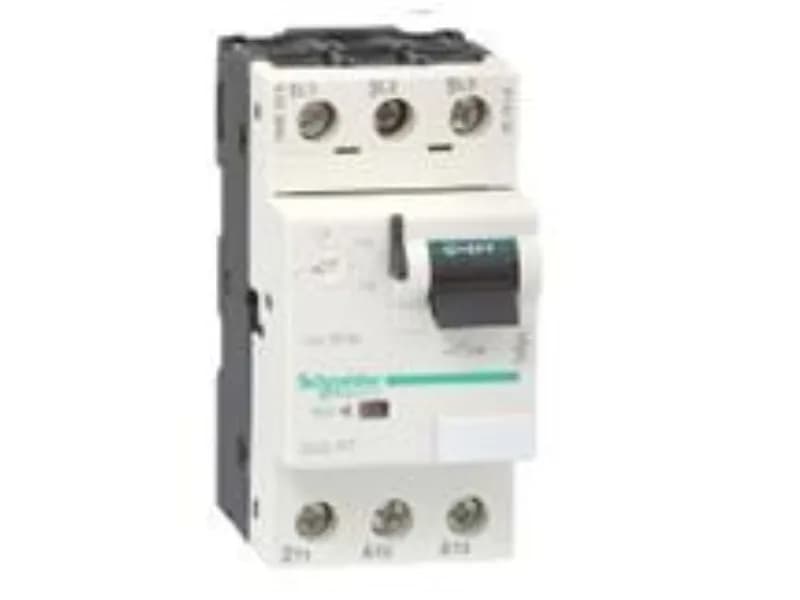

Schneider Electric GV2RT05 Motor Circuit Breaker, 1A

MPNGV2RT05
Active

Schneider Electric TeSys Deca GV2RT05 Motor Circuit Breaker, 3-Pole, 1A, Thermal-Magnetic, 100 kA Icu, IP20.

$38.10Ref. price · indicative, final on quote
Schneider Electric GV2RT05 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2RT05 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current1 A
Magnetic tripping current22 A
[Ith] conventional free air thermal current1 A IEC 60947-2
Motor power0.09 kW 220/230 V AC 50/60 Hz motor protection high peak current 0.12 kW 220/230 V AC 50/60 Hz motor protection high peak current 0.25 kW 400/415 V AC 50/60 Hz motor protection high peak current 0.37 kW 400/415 V AC 50/60 Hz motor protection high peak current 0.25 kW 440 V AC 50/60 Hz motor protection high peak current 0.37 kW 440 V AC 50/60 Hz motor protection high peak current 0.37 kW 500 V AC 50/60 Hz motor protection high peak current 0.55 kW 690 V AC 50/60 Hz motor protection high peak current 0.63 kW 440 V AC 50/60 Hz transformer protection 0.63 kW 500 V AC 50/60 Hz transformer protection 1 kW 690 V AC 50/60 Hz transformer protection

All specifications

GV2RT05 additional specifications
ParameterValue
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2RT
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection Transformer
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range0.63...1 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Panel-Side Specs at a Glance

Breaking capacity hits 100 kA Icu across the 220–690 V AC range, so it meets high-fault panels without extra upstream fusing. Control is via toggle, and the enclosure is IP20 for basic finger-safe protection. Power terminals accept 1–6 mm² solid or 1.5–6 mm² flexible wire. Tightening torque is 1.7 N·m.

Compliance & Certifications

Marked as suitable for isolation per IEC 60947-1. Also meets glow-wire test at 960°C per IEC 60695-2-11.

Rated operational voltage 690 V AC, insulation voltage 690 V AC. Power dissipation at rated current is 2.5 W per pole — factor that into panel thermal calculations.

Frequently asked questions

What is the GV2RT05's depth?

Depth is 3.09 inches (78.5 mm). Combined with a height of 3.5 inches and width of 1.8 inches, it fits standard DIN-rail envelopes.

What standards does the GV2RT05 comply with?

It is certified to EN/IEC 60947-2 for circuit-breaker performance and EN/IEC 60947-4-1 for motor-starter coordination. It also carries an IEC 60947-1 suitability-for-isolation marking.
