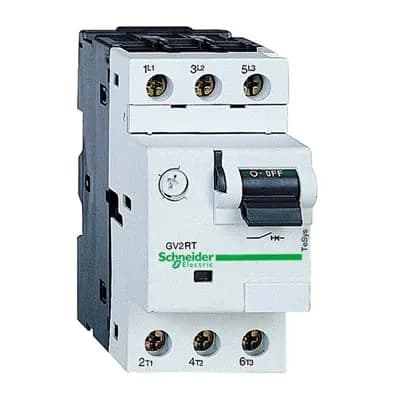

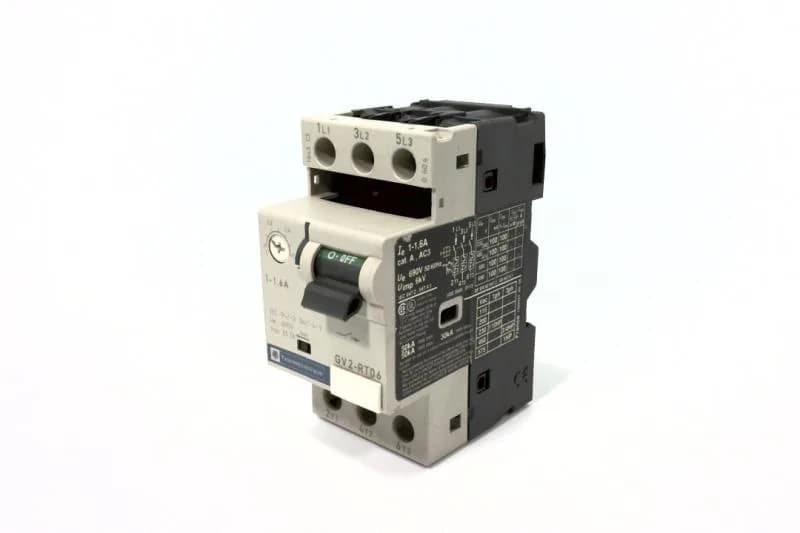

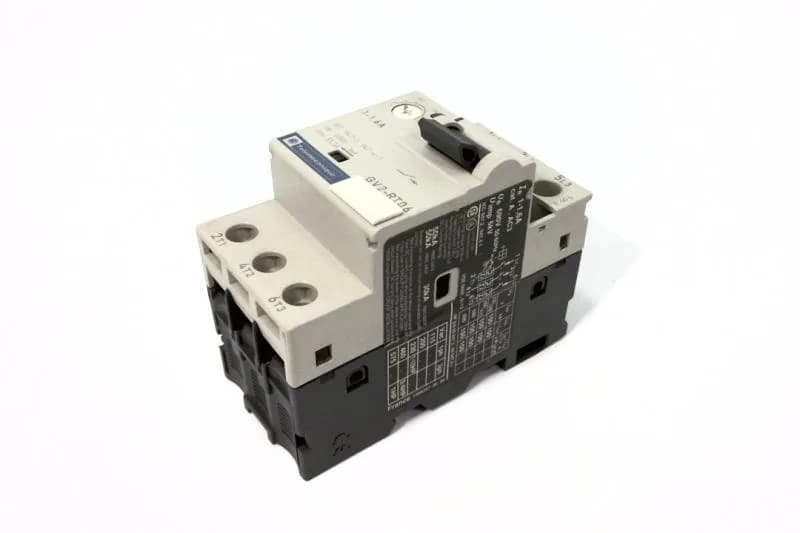

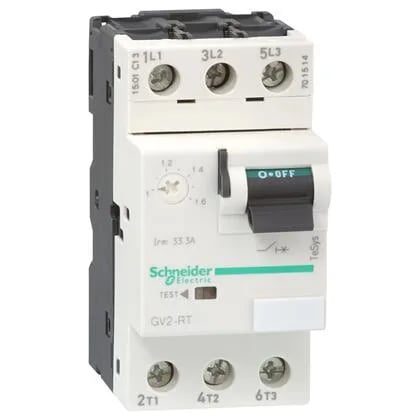

Schneider Electric GV2RT06

TeSys Deca GV2RT06 Motor Circuit Breaker, 1.6 A

MPNGV2RT06
Active

TeSys Deca GV2RT06 motor circuit breaker, 1.6 A rated current, thermal-magnetic trip, 3 poles, 100 kA breaking capacity at 400 V.

$39.09Ref. price · indicative, final on quote
Schneider Electric GV2RT06 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2RT06 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current1.6 A
Magnetic tripping current33 A
[Ith] conventional free air thermal current1.6 A IEC 60947-2
Motor power0.18 kW 220/230 V AC 50/60 Hz motor protection high peak current 0.25 kW 220/230 V AC 50/60 Hz motor protection high peak current 0.37 kW 400/415 V AC 50/60 Hz motor protection high peak current 0.55 kW 400/415 V AC 50/60 Hz motor protection high peak current 0.37 kW 440 V AC 50/60 Hz motor protection high peak current 0.55 kW 440 V AC 50/60 Hz motor protection high peak current 0.37 kW 500 V AC 50/60 Hz motor protection high peak current 0.55 kW 500 V AC 50/60 Hz motor protection high peak current 0.75 kW 500 V AC 50/60 Hz motor protection high peak current 0.75 kW 690 V AC 50/60 Hz motor protection high peak current 1.1 kW 690 V AC 50/60 Hz motor protection high peak current 0.4 kW 230/240 V AC 50/60 Hz transformer protection 0.63 kW 400/415 V AC 50/60 Hz transformer protection

All specifications

GV2RT06 additional specifications
ParameterValue
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2RT
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection Transformer
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range1...1.6 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

TeSys Deca GV2RT06 motor circuit breaker, 1.6 A line rated current, thermal-magnetic trip — three poles, isolation rated per IEC 60947-1. That isolation rating means a visible break when the handle is off; no floating contact that could leave a motor half-fed and a signal line live.

1.6 A thermal setting covers a 0.18 kW motor at 230 V or a 0.37 kW at 400 V. The magnetic trip is fixed at 33 A, and power dissipation is 2.5 W per pole. Breaking capacity holds 100 kA all the way up to 690 V (IEC 60947-2). Utilisation category AC-3 and AC-3e covers standard squirrel-cage motors and high-efficiency types.

Mounts horizontal or vertical—no derating required for orientation. Terminals accept 1–6 mm² solid or 1.5–6 mm² flexible without ferrules; with ferrules, 1–4 mm². Tightening torque 1.7 N·m on the screw clamp. IP20 finger-safe when installed; IK04 impact rating handles tool drops.

The GV2RT family is the current standard.

Frequently asked questions

What are the key ratings of the GV2RT06?

1.6 A line rated current, thermal-magnetic trip, 3 poles, 100 kA breaking capacity at 230–690 V AC, isolation rated, enclosure IP20.

What is the depth of the GV2RT06?

3.09 inches (78.5 mm) deep.

What range is the GV2RT06 part of?

TeSys Deca range.

What compliance standards does the GV2RT06 meet?

Meets EN/IEC 60947-2 and EN/IEC 60947-4-1. Fire resistance tested at 960 °C (IEC 60695-2-11). Protection class IP20, impact rating IK04. Suitable for isolation per IEC 60947-1.
