GV2RT08
MPNGV2RT08
Active

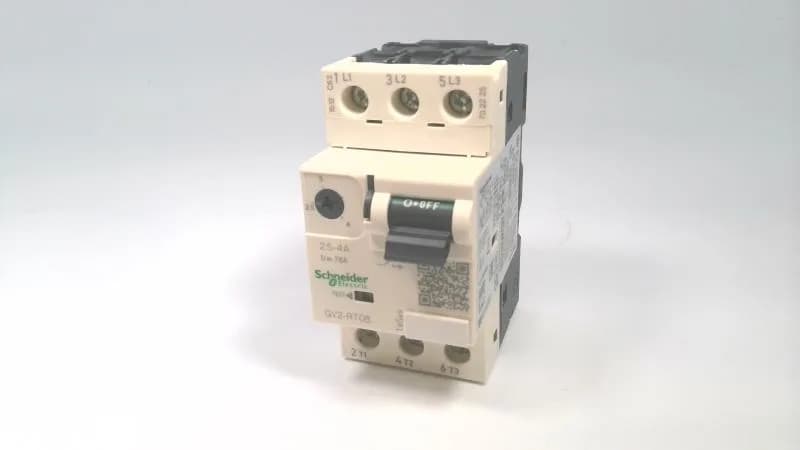

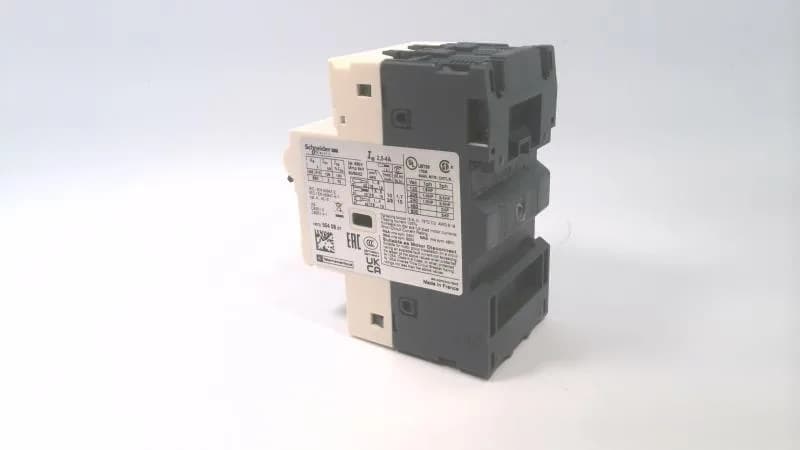

SQD GV2RT08 MANUAL STARTER 600VAC|SQD GV2RT08 MANUAL STARTER 600VAC 4AMP IEC
$38.10Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Motor circuit breaker |
| Climatic withstand | IACS E10 |
| Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Breaking capacity | 100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 4 A |
| Magnetic tripping current | 78 A |
| [Ith] conventional free air thermal current | 4 A IEC 60947-2 |
| Motor power | 0.55 kW 220/230 V AC 50/60 Hz motor protection high peak current 0.75 kW 220/230 V AC 50/60 Hz motor protection high peak current 1.1 kW 400/415 V AC 50/60 Hz motor protection high peak current 1.5 kW 400/415 V AC 50/60 Hz motor protection high peak current 1.5 kW 440 V AC 50/60 Hz motor protection high peak current 1.5 kW 500 V AC 50/60 Hz motor protection high peak current 2.2 kW 500 V AC 50/60 Hz motor protection high peak current 2.2 kW 690 V AC 50/60 Hz motor protection high peak current 3 kW 690 V AC 50/60 Hz motor protection high peak current 1 kW 230/240 V AC 50/60 Hz transformer protection 1.6 kW 400/415 V AC 50/60 Hz transformer protection 2 kW 400/415 V AC 50/60 Hz transformer protection 1.6 kW 440 V AC 50/60 Hz transformer protection 2 kW 440 V AC 50/60 Hz transformer protection 2 kW 500 V AC 50/60 Hz transformer protection 2.5 kW 500 V AC 50/60 Hz transformer protection 2.5 kW 690 V AC 50/60 Hz transformer protection |
All specifications
| Parameter | Value |
|---|---|
| Power dissipation per pole | 2.5 W |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Poles description | 3P |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Utilisation category | Category A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1 |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Mounting position | Horizontal Vertical |
| Connections - terminals | Power circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Depth | 3.09 in (78.5 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Electrical durability | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In |
| Mechanical durability | 100000 cycles |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
| Range | TeSys Deca |
| Category | US10I1122367 |
| Fixing mode | 35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Device short name | GV2RT |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Device application | Motor protection Transformer |
| Trip unit technology | Thermal-magnetic |
| Mechanical robustness | Shocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz |
| Suitability for isolation | Yes IEC 60947-1 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Thermal protection adjustment range | 2.5...4 A IEC 60947-2 |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
GV2RT08
