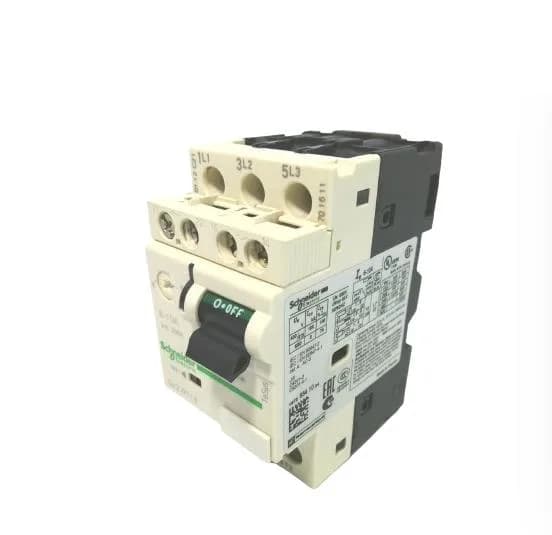

Schneider Electric GV2RT14

Schneider GV2RT14 TeSys Deca Motor Circuit Breaker, 10 A

MPNGV2RT14
Active

Schneider Electric TeSys Deca GV2RT14, 3-pole thermal-magnetic motor circuit breaker, 10 A rated current, 100 kA breaking capacity at 230 V AC.

$43.21Ref. price · indicative, final on quote
Schneider Electric GV2RT14 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2RT14 key specifications
ParameterValue
Control typeToggle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 15 kA Icu 440 V AC 50/60 Hz IEC 60947-2 10 kA Icu 500 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current10 A
Magnetic tripping current200 A
[Ith] conventional free air thermal current10 A IEC 60947-2
Motor power1.5 kW 220/230 V AC 50/60 Hz motor protection high peak current 2.2 kW 220/230 V AC 50/60 Hz motor protection high peak current 3 kW 400/415 V AC 50/60 Hz motor protection high peak current 4 kW 400/415 V AC 50/60 Hz motor protection high peak current 4 kW 440 V AC 50/60 Hz motor protection high peak current 4 kW 500 V AC 50/60 Hz motor protection high peak current 5.5 kW 500 V AC 50/60 Hz motor protection high peak current 5.5 kW 690 V AC 50/60 Hz motor protection high peak current 7.5 kW 690 V AC 50/60 Hz motor protection high peak current 2.5 kW 230/240 V AC 50/60 Hz transformer protection 4 kW 400/415 V AC 50/60 Hz transformer protection 5 kW 400/415 V AC 50/60 Hz transformer protection 5 kW 440 V AC 50/60 Hz transformer protection 5 kW 500 V AC 50/60 Hz transformer protection 6.3 kW 500 V AC 50/60 Hz transformer protection

All specifications

GV2RT14 additional specifications
ParameterValue
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2RT
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection Transformer
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range6...10 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The thermal-magnetic trip unit combines overload protection (thermal) and instantaneous short-circuit protection set at 200 A, covering the inrush of motors up to the power ratings listed for the part.

For BOM fills or line-down replacements, this part can be quoted to order – no last-time-buy constraints or substitution risk.

Integration Notes

Wire the power circuit via screw clamp terminals accepting 1…6 mm² solid or 1.5…6 mm² flexible without ferrule. Tighten to 1.7 N·m. Rated insulation voltage 690 V AC, with suitability for isolation per IEC 60947-1 – useful for lockout points. Dimensions: 45 mm wide, 89 mm high, 78.5 mm deep – fits standard 45 mm modular enclosure spacing on DIN rail.

Frequently asked questions

What are the key compliance standards for this breaker?

It complies with EN/IEC 60947-2 (circuit-breakers) and EN/IEC 60947-4-1 (motor-starters/breakers), with IP20 degree of protection and 960 °C glow-wire fire resistance.

What is the depth of the GV2RT14?

The depth is 3.09 inches (78.5 mm), which includes the toggle depth when in the ON position.

What is the product range name for the GV2RT14?

It belongs to the TeSys Deca range, part of the broader TeSys GV2 family of motor circuit breakers.
