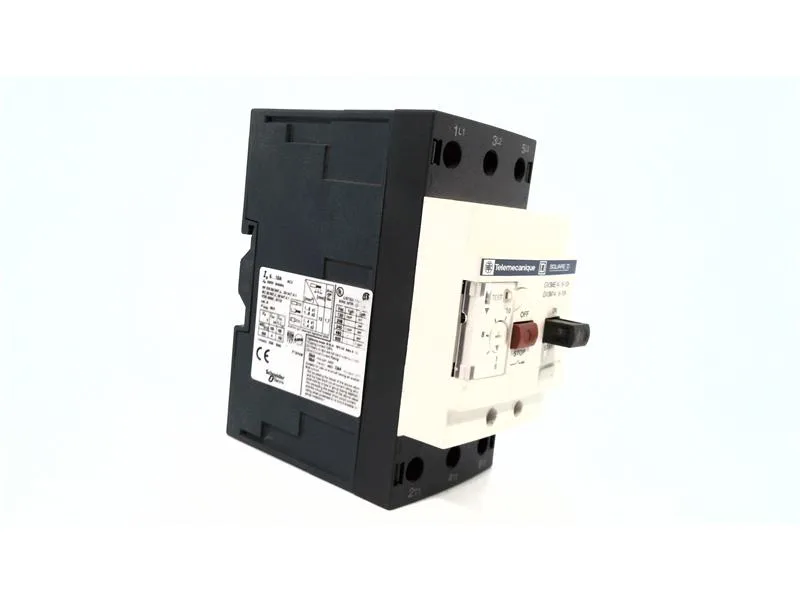

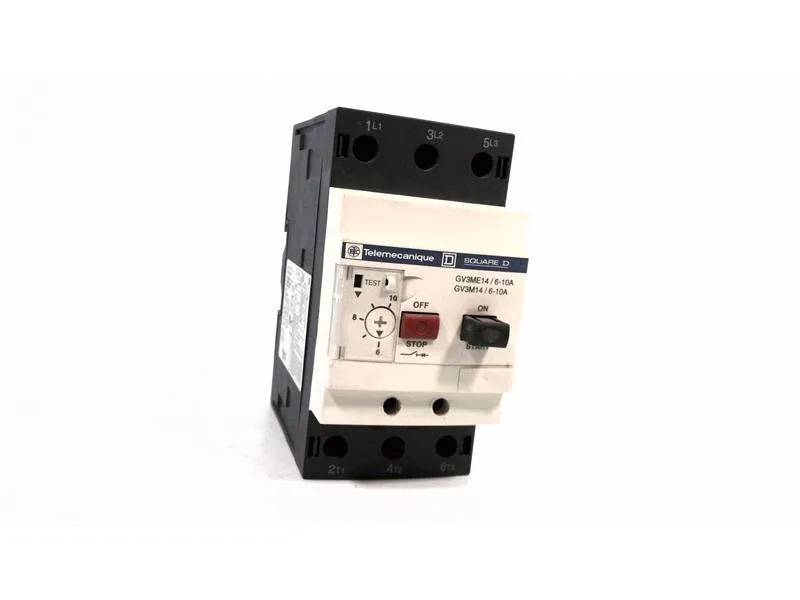

Schneider GV3-ME14 Motor Circuit Breaker
MPNGV3-ME14
Obsolete
GV3-ME14 - MOTOR CIRCUIT BREAKER by TELEMECANIQUE
$995.98Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Trip unit type | Thermal-magnetic |
| Voltage withstand | 6 kV conforming to IEC 60947-2 |
| Voltage insulation | 690 V conforming to IEC 60947-2 |
| Poles | 3 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 § 7-2-1-5-2 |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Utilization category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 |
| Mounting | Fixed |
| Connections - terminals | Power circuit: screw clamp terminal 1 cable(s) 2.5...35 mm²solid Power circuit: screw clamp terminal 1 cable(s) 2.5 mm²flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 16 mm²flexible with cable end |
| Shock | 22 gn 20 ms conforming to IEC 60068-2-27 |
| Altitude max | <= 3000 m |
| Depth | 113 |
All specifications
| Parameter | Value |
|---|---|
| Width | 61 |
| Height | 120 |
| Electrical life cycles | 30000 cycles for AC-3 at 440 V In/2 |
| Mechanical life cycles | 30000 cycles |
| Standards | IEC 60947-2 IEC 60947-4-1 BS EN DIN EN 60947-2 DIN EN 60947-4-1 EN 60947-2 EN 60947-4-1 NF EN |
| Range | TeSys |
| Power | 3 kW at 400...415 V AC 50/60 Hz 4 kW at 400...415 V AC 50/60 Hz 4 kW at 500 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz 7.5 kW at 660...690 V AC 50/60 Hz 5.5 kW at 660...690 V AC 50/60 Hz |
| IP rating | IP20 conforming to IEC 60529 (open mounted) IP55 conforming to IEC 60529 (in enclosure) |
| Torque | 5 N.m - on EverLink BTR screw connectors - cable 2.5...16 mm² 5 N.m - on EverLink BTR screw connectors - cable 2.5...3.5 mm² |
| Control_type | Push-button |
| Frequency | 50/60 Hz conforming to IEC 60947-4-1 50/60 Hz conforming to UL 50/60 Hz conforming to CSA |
| Network_type | AC |
| Package_type | PCE |
| Resistance | 2.5 gn (f= 0...25 Hz) conforming to IEC 60068-2-6 |
| Application_type | Motor |
| Supply voltage | 690 |
| Device short name | thermal magnetic circuit breaker |
| Breaking cap icu | 100 |
| Switching current | 14 |
| Storage temperature | -40...80 °C |
| Protective treatment | TC |
| Main_product_or_component_type | Circuit breaker |
| Maximum number of switchings max | 25 cyc/h |
| Operating temperature | -20 |
MPN
GV3-ME14
