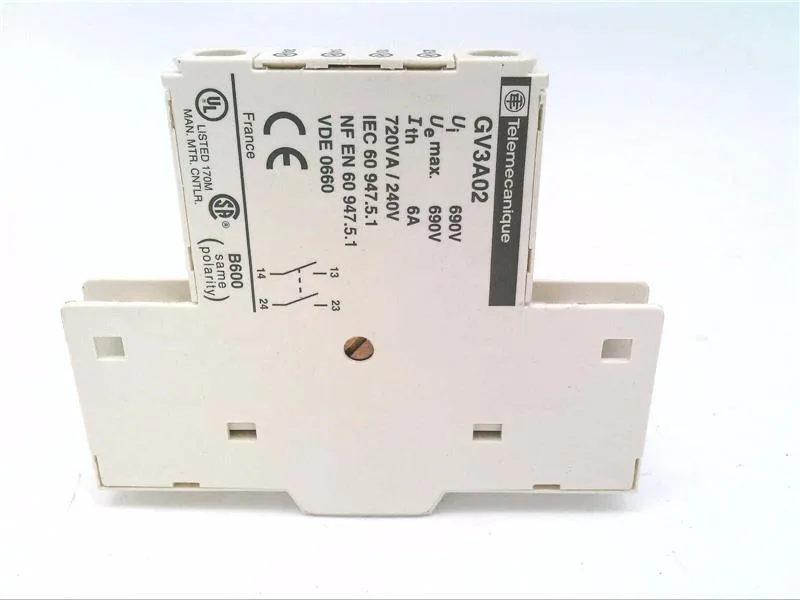

Schneider GV3A02 Auxiliary Contact
MPNGV3A02
Obsolete
AUXILIARY CONTACT|SQD GV3A02 AUXILIARY CONTACT
$37.11Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range | TeSys |
| Protection type | GB2CB... circuit breaker GG fuse 6 A |
| Quantity per set | Set of 10 |
| Device short name | GV3A |
| Mounting location | Right side |
| Mechanical durability | 100000 cycles |
| Pole contact composition | 2 NO |
| Product or component type | Auxiliary contact block |
| Environmental characteristic | Normal environment |
| Rated operational power in | 180 W 24 V DC-11 100000 cycles 240 W 48 V DC-11 100000 cycles 180 W 60 V DC-11 100000 cycles 140 W 110 V DC-11 100000 cycles 120 W 220 V DC-11 100000 cycles |
| Voltage | 600 V UL 508 690 V IEC 60947-1 600 V CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48...690 V AC 24...220 V DC |
| [Ith] conventional free air thermal current | 6 A |
MPN
GV3A02
