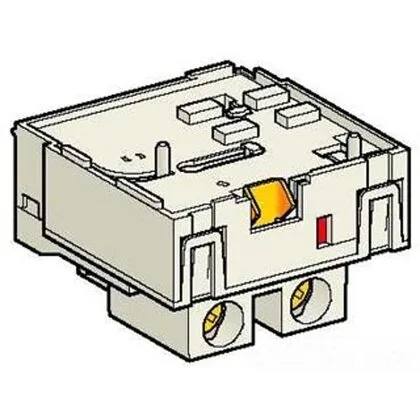

Schneider GV3A08 Fault Signal Contact
MPNGV3A08
Obsolete
MANUAL STARTER FLT SGNL|SQD GV3A08 MANUAL STARTER FLT SGNL
$94.21Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | GB2CB... circuit breaker GG fuse 6 A |
| Product or component type | Auxiliary contact block |
| Voltage | 600 V UL 508 690 V IEC 60947-1 600 V CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48...690 V AC 24...220 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Rated operational power in | 180 W 24 V DC-11 1000 cycles 180 W 48 V DC-11 1000 cycles 135 W 60 V DC-11 1000 cycles 105 W 110 V DC-11 1000 cycles 90 W 220 V DC-11 1000 cycles |
| Pole contact composition | 1 NC |
| Mounting location | Front side |
| Width | 0.4 in (9 mm) |
| Mechanical durability | 1000 cycles |
| Range | TeSys |
| Category | 22366-MAN STR PROTECTORS-GV1/GV3 |
| Quantity per set | Set of 10 |
| Device short name | GV3A |
| Auxiliary contacts operation | Fault signal 1 NC |
| Environmental characteristic | Normal environment |
MPN
GV3A08
