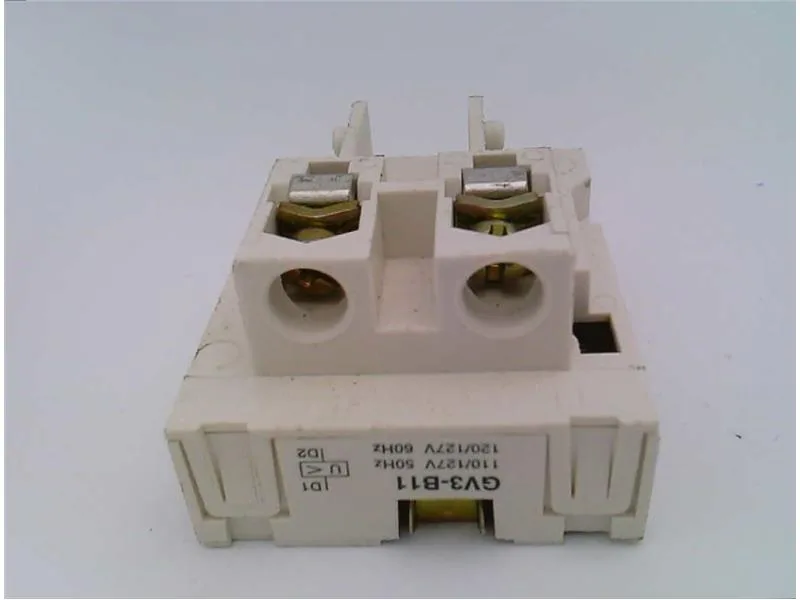

Schneider GV3B11 Undervoltage Trip 127V
MPNGV3B11
Obsolete
SQD GV3B11 MAN-STARTER UNDERVOLTAGE|SQD GV3B11 MAN-STARTER UNDERVOLTAGE TRIP 127VAC IEC
$49.34Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Undervoltage trip |
| Threshold tripping voltage | 0.7...0.35 Un |
| Coil voltage | 127 V AC 60 Hz 110 V AC 50 Hz 120 V AC 50 Hz 127 V AC 50 Hz 120 V AC 60 Hz |
| Voltage | 690 V AC IEC 60947-1 600 V AC UL 60947-4-1 600 V AC CSA C22.2 No 60947-4-1 |
| Control circuit voltage limits | 0.8...1.1 Un |
| Inrush power in | 12 VA AC |
| Hold-in power consumption in | 7 VA AC |
| Connections - terminals | screw clamp terminals 1 0.001...0.004 in² (0.75...2.5 mm²)flexible without cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)solid screw clamp terminals 2 0.001...0.004 in² (0.75...2.5 mm²)flexible without cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)solid screw clamp terminals 1 0.001...0.004 in² (0.75...2.5 mm²)flexible with cable end screw clamp terminals 2 0.001...0.004 in² (0.75...2.5 mm²)flexible with cable end |
| Mechanical durability | 15000 cycles |
| Range | TeSys |
| Category | 22366-MAN STR PROTECTORS-GV1/GV3 |
| On-load factor | 100 % |
| Operating time | 10 ms IEC 60947-1 |
| Quantity per set | Set of 10 |
| Device short name | GV3B |
| Tightening torque | 1.2 N.m screw clamp terminals |
MPN
GV3B11
