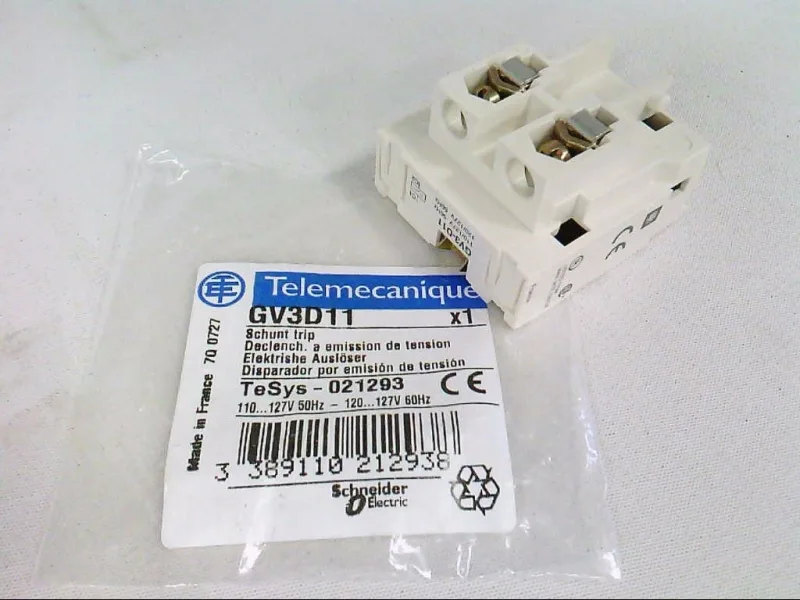

Schneider GV3D11 Shunt Trip 127V
MPNGV3D11
Obsolete
GV3D11 - SHUNT TRIP 127VAC IEC by TELEMECANIQUE
$25.40Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Shunt trip |
| Threshold tripping voltage | 0.7...0.35 Un |
| Coil voltage | 127 V AC 60 Hz 110 V AC 50 Hz 120 V AC 50 Hz 127 V AC 50 Hz 120 V AC 60 Hz |
| Voltage | 600 V AC UL 508 690 V AC IEC 60947-1 600 V AC CSA C22.2 No 14 |
| Control circuit voltage limits | 0.8...1.1 Un |
| Inrush power in | 12 VA AC |
| Hold-in power consumption in | 2.5 W DC |
| Connections - terminals | screw clamp terminals 1 0.001...0.004 in² (0.75...2.5 mm²)flexible without cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)solid screw clamp terminals 2 0.001...0.004 in² (0.75...2.5 mm²)flexible without cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)solid screw clamp terminals 1 0.001...0.004 in² (0.75...2.5 mm²)flexible with cable end screw clamp terminals 2 0.001...0.004 in² (0.75...2.5 mm²)flexible with cable end |
| Mechanical durability | 15000 cycles |
| Range | TeSys |
| Category | 22366-MAN STR PROTECTORS-GV1/GV3 |
| On-load factor | 100 % |
| Operating time | 15 ms IEC 60947-1 |
| Quantity per set | Set of 10 |
| Device short name | GV3D |
| Tightening torque | 1.2 N.m screw clamp terminals |
MPN
GV3D11
