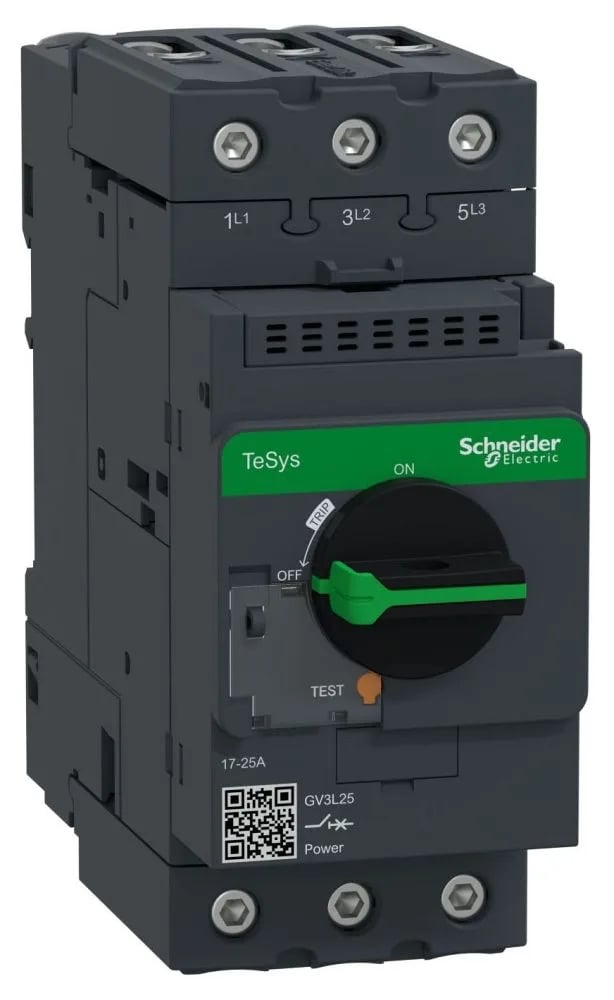

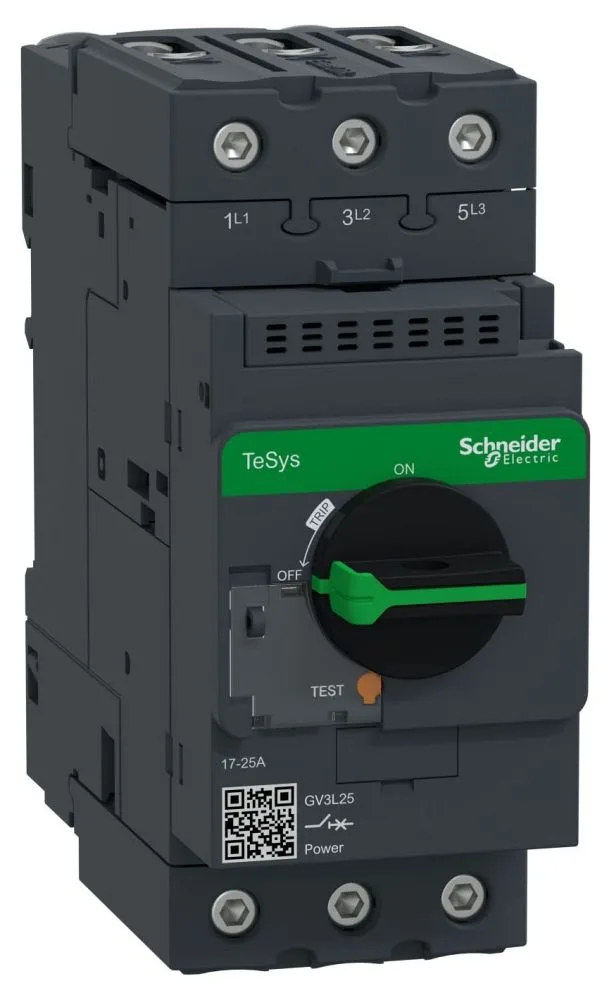

Schneider Electric GV3L25

Schneider Electric GV3L25 TeSys Deca Motor Circuit Breaker,

MPNGV3L25
Active

Schneider Electric TeSys Deca GV3L25 motor circuit breaker, 25 A, 3-pole, magnetic trip unit, 100 kA breaking capacity at 400/415 V.

$54.61Ref. price · indicative, final on quote
Schneider Electric GV3L25 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV3L25 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz 100 kA Icu 400/415 V AC 50/60 Hz 50 kA Icu 440 V AC 50/60 Hz 12 kA Icu 500 V AC 50/60 Hz 6 kA Icu 690 V AC 50/60 Hz
Line rated current25 A
Magnetic tripping current350 A
[Ith] conventional free air thermal current25 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz 100 % 400/415 V AC 50/60 Hz 100 % 440 V AC 50/60 Hz 50 % 500 V AC 50/60 Hz 50 % 690 V AC 50/60 Hz

All specifications

GV3L25 additional specifications
ParameterValue
Motor power11 kW 400/415 V AC 50/60 Hz 15 kW 500 V AC 50/60 Hz 18.5 kW 690 V AC 50/60 Hz
Power dissipation per pole8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Operating altitude9842.52 ft (3000 m)
ColorDark grey
Depth5.4 in (136 mm)
Width2.2 in (55 mm)
Height5.2 in (132 mm)
Product weight2.12 lb(US) (0.96 kg)
Electrical durability50000 cycles AC-3 415 V In
Mechanical durability50000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS10I1122366
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 3 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV3L
Tightening torque44.3 lbf.in (5 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 15 Gn for 11 ms contactor open Shocks 30 Gn for 11 ms contactor closed Vibrations 4 Gn, 5...300 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

GV3L25 is the 25 A three-pole motor circuit breaker in the TeSys Deca range. Magnetic-only trip unit fires at 350 A, which keeps it out of nuisance trips on moderate inrush while still clearing short circuits fast. Breaking capacity at 400/415 V is 100 kA Icu — that’s enough to sit on a high-fault bus without an upstream fuse eating panel space. Rated for AC-3 duty, meaning it’s sized for squirrel-cage motor starting. Electrical durability is 50,000 cycles at full load in AC-3, which matches the mechanical rating — a good indicator that the switchgear isn’t overrated for frequent cycling.

Approved to EN/IEC 60947-2, -4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1. Also passes glow-wire at 960 °C per IEC 60695-2-11 and the appliance standard 60335-1 clause 30.2, which covers motor protection in HVAC equipment.

IP20 finger-safe terminals; torque terminals to 5 N·m. Accepts horizontal or vertical orientation. Operating altitude rated to 3000 m without derating — keep that in mind if the panel goes into a high-elevation plant.

Frequently asked questions

What is the GV3L25's color?

Dark grey.

What is the GV3L25's depth?

5.4 inches (136 mm).

What compliance standards does the GV3L25 meet?

Meets EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, plus glow-wire and appliance safety clauses for motor protection in HVAC.
