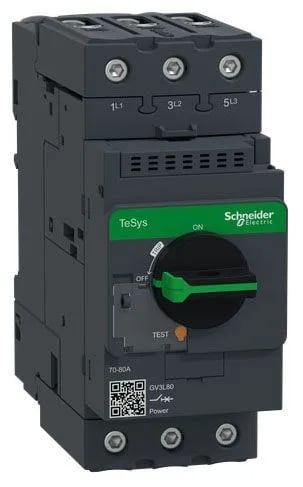

Schneider Electric GV3L80

GV3L80 TeSys Deca Motor Circuit Breaker, 80 A, 3P

MPNGV3L80
Active

Schneider Electric TeSys Deca GV3L80 motor circuit breaker, 80 A rated current, 3-pole, magnetic trip, 65 kA breaking capacity at 230 V.

$545.00Ref. price · indicative, final on quote
Schneider Electric GV3L80 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV3L80 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity65 kA Icu 230/240 V AC 50/60 Hz 50 kA Icu 400/415 V AC 50/60 Hz 50 kA Icu 440 V AC 50/60 Hz 12 kA Icu 500 V AC 50/60 Hz 6 kA Icu 690 V AC 50/60 Hz
Line rated current80 A
Magnetic tripping current1120 A
[Ith] conventional free air thermal current80 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz 60 % 400/415 V AC 50/60 Hz 60 % 440 V AC 50/60 Hz 50 % 500 V AC 50/60 Hz 50 % 690 V AC 50/60 Hz

All specifications

GV3L80 additional specifications
ParameterValue
Motor power45 kW 400/415 V AC 50/60 Hz maximum peak current 750 A 45 kW 500 V AC 50/60 Hz maximum peak current 750 A 55 kW 690 V AC 50/60 Hz maximum peak current 750 A
Power dissipation per pole8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Operating altitude9842.52 ft (3000 m)
ColorDark grey
Depth5.4 in (136 mm)
Width2.2 in (55 mm)
Height5.2 in (132 mm)
Electrical durability20000 cycles AC-3 415 V In
Mechanical durability50000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
Category22366-MAN STR PROTECTORS-GV1/GV3
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 3 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV3L
Tightening torque44.3 lbf.in (5 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyMagnetic
Mechanical robustnessShocks 5 Gn for 11 ms contactor open Shocks 30 Gn for 11 ms contactor closed Vibrations 4 Gn, 5...300 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The Schneider GV3L80 is a TeSys Deca motor circuit breaker rated 80 A continuous, 3-pole, with a magnetic trip set to 1120 A. That 1120 A magnetic trip means it's not for wimpy loads—expect it to ride through the inrush of a 45 kW motor on 400 V and still clear a bolted fault clean. Rated isolation according to IEC 60947-1, so you can hang a lockout tag on the rotary handle and treat the downstream bus as de-energized. The 55 mm width keeps the footprint tight for a 3-pole 80 A device.

The GV3L80 carries approvals under EN/IEC 60947-2 and -4-1, plus UL 60947-4-1 and CSA C22.2 No 60947-4-1. It also meets glow-wire resistance at 960 °C per IEC 60695-2-11, and is listed for isolation and motor protection in appliance standards IEC/EN 60335-1 and -2-40. Nameplate says dark grey; the enclosure sits in a -20 to 60 °C operating range.

Frequently asked questions

What is the GV3L80's listed case color and depth?

The case is dark grey. Depth is 136 mm (5.4 in).

What compliance standards does the GV3L80 meet?

It complies with EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-1 Clause 30.2, and IEC/EN 60335-2-40 Annex JJ. Also meets glow-wire test at 960 °C per IEC 60695-2-11.
