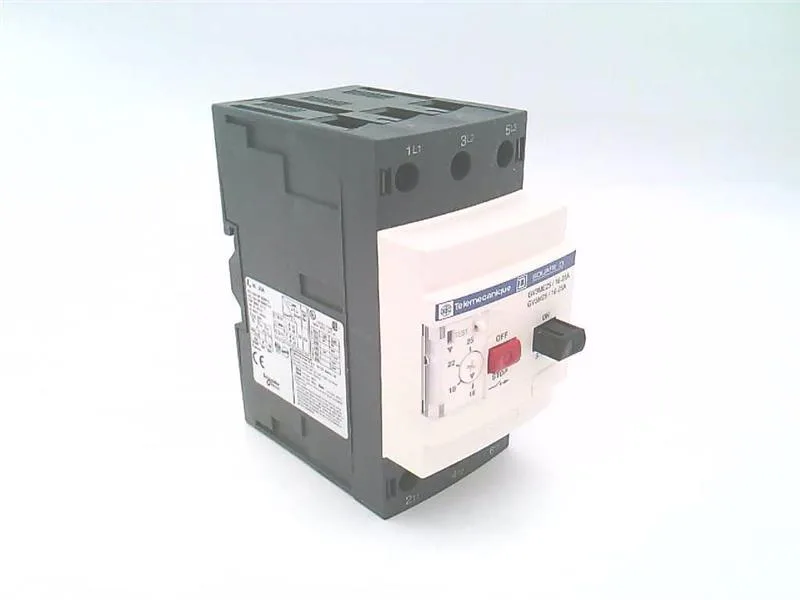

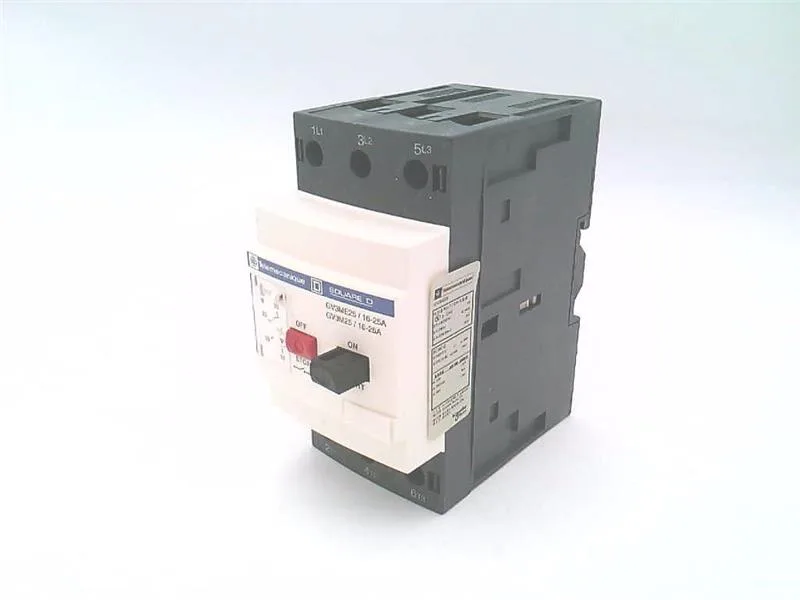

Schneider GV3ME25 Manual Starter
MPNGV3ME25
GV3ME25 - MANUAL STARTER by TELEMECANIQUE
$336.85Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Network type | AC |
| Product or component type | Circuit breaker |
| Voltage | 690 V conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 600 V AC 50/60 Hz conforming to UL 508 600 V AC 50/60 Hz conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Breaking capacity | 100 kA Icu at 230...240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 2 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current | 25 A conforming to IEC 60947-4-1 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230...240 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 60 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Motor power | 11 kW at 400...415 V AC 50/60 Hz 9 kW at 400...415 V AC 50/60 Hz 11 kW at 500 V AC 50/60 Hz 15 kW at 500 V AC 50/60 Hz 15 kW at 660...690 V AC 50/60 Hz 18.5 kW at 660...690 V AC 50/60 Hz |
| Power dissipation per pole | 8 W |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 50/60 Hz conforming to UL 50/60 Hz conforming to CSA |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 3P |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 § 7-2-1-5-2 |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 |
| IP degree of protection | IP20 conforming to IEC 60529 (open mounted) IP55 conforming to IEC 60529 (in enclosure) |
| Mounting mode | Fixed |
| Mounting support | Rail Plate |
| Mounting position | Vertical Horizontal |
| Connections - terminals | Power circuit: screw clamp terminal 1 cable(s) 2.5...35 mm²solid Power circuit: screw clamp terminal 1 cable(s) 2.5 mm²flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 16 mm²flexible with cable end |
| Shock resistance | 22 gn 20 ms conforming to IEC 60068-2-27 |
| Operating altitude | <= 3000 m |
| Vibration resistance | 2.5 gn (f= 0...25 Hz) conforming to IEC 60068-2-6 |
| Depth | 113 mm |
| Width | 61 mm |
| Height | 120 mm |
| Electrical durability | 30000 cycles for AC-3 at 440 V In/2 |
| Mechanical durability | 30000 cycles |
| Standards | IEC 60947-2 IEC 60947-4-1 BS EN DIN EN 60947-2 DIN EN 60947-4-1 EN 60947-2 EN 60947-4-1 NF EN |
| Range | TeSys |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Device short name | thermal magnetic circuit breaker |
| Tightening torque | 5 N.m - on EverLink BTR screw connectors - cable 2.5...16 mm² 5 N.m - on EverLink BTR screw connectors - cable 2.5...3.5 mm² |
| Device application | Motor |
| Protective treatment | TC |
| Trip unit technology | Thermal-magnetic |
| Maximum number of switchings | 25 cyc/h |
| Resistance to mechanical impact | 0.5 J |
| Ambient air temperature for storage | -40...80 °C |
| Thermal protection adjustment range | 16...25 A conforming to IEC 60947-4-1 |
| Ambient air temperature for operation | -20...40 °C in enclosure -20...60 °C open mounted |
