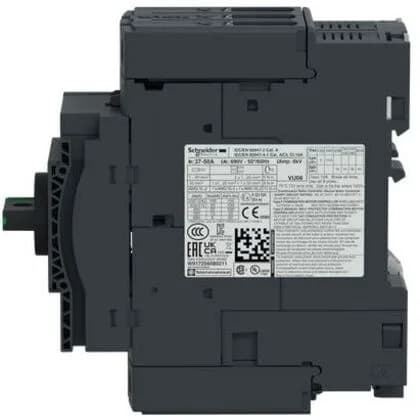

Schneider Electric GV3P50
MPNGV3P50
Active
Manual Motor Control, Breaker, Rotary, 37 - 50A, 600VAC, 3P, Screw Clamp|Manual Motor Control, Breaker Type, Rotary Operator, 37 - 50 Amp, 600 Volt AC, 3-Pole, Screw Clamp
$83.82Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Rotary handle |
| Network type | AC |
| Product or component type | Motor circuit breaker |
| Climatic withstand | IACS E10 |
| Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 50 A |
| Magnetic tripping current | 700 A |
| [Ith] conventional free air thermal current | 50 A IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 50 % 500 V AC 50/60 Hz IEC 60947-2 50 % 690 V AC 50/60 Hz IEC 60947-2 |
All specifications
| Parameter | Value |
|---|---|
| Motor power | 22 kW 400/415 V AC 50/60 Hz 30 kW 500 V AC 50/60 Hz 45 kW 690 V AC 50/60 Hz |
| Power dissipation per pole | 8 W |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Poles description | 3P |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Utilisation category | Category A IEC 60947-2 AC-3 IEC 60947-4-1 |
| IK degree of protection | IK09 enclosure |
| IP degree of protection | IP20 IEC 60529 |
| Mounting position | Horizontal Vertical |
| Operating altitude | 9842.52 ft (3000 m) |
| Color | Dark grey |
| Depth | 5.4 in (136 mm) |
| Width | 2.2 in (55 mm) |
| Height | 5.2 in (132 mm) |
| Electrical durability | 50000 cycles AC-3 415 V In |
| Mechanical durability | 50000 cycles |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ |
| Range | TeSys Deca |
| Category | US10I1122366 |
| Fixing mode | 35 mm symmetrical DIN rail clipped Panel screwed with 3 x M4 screws) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Device short name | GV3P |
| Tightening torque | 44.3 lbf.in (5 N.m) screw clamp terminal |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Mechanical robustness | Shocks 15 Gn for 11 ms contactor open Shocks 30 Gn for 11 ms contactor closed Vibrations 4 Gn, 5...300 Hz |
| Suitability for isolation | Yes IEC 60947-1 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Thermal protection adjustment range | 37...50 A IEC 60947-2 |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
GV3P50
