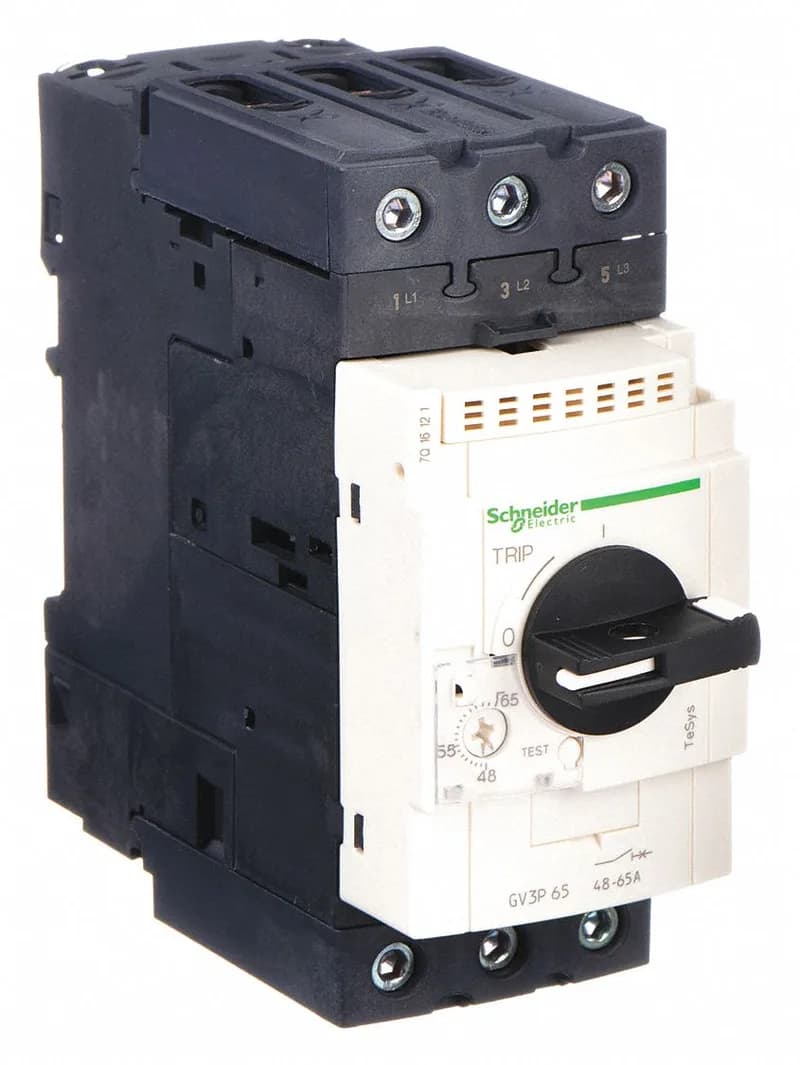

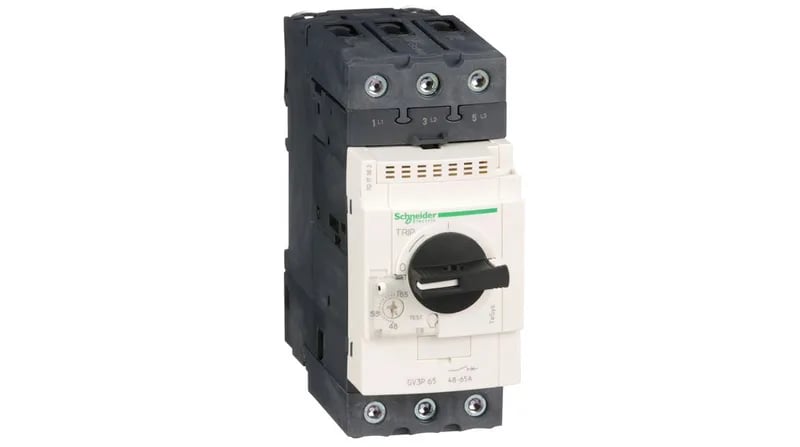

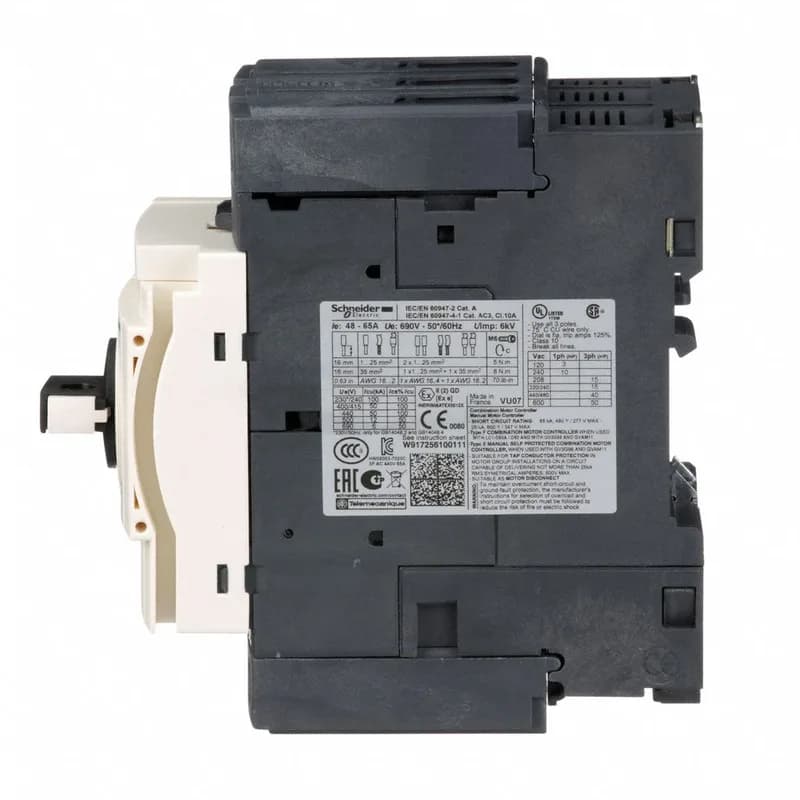

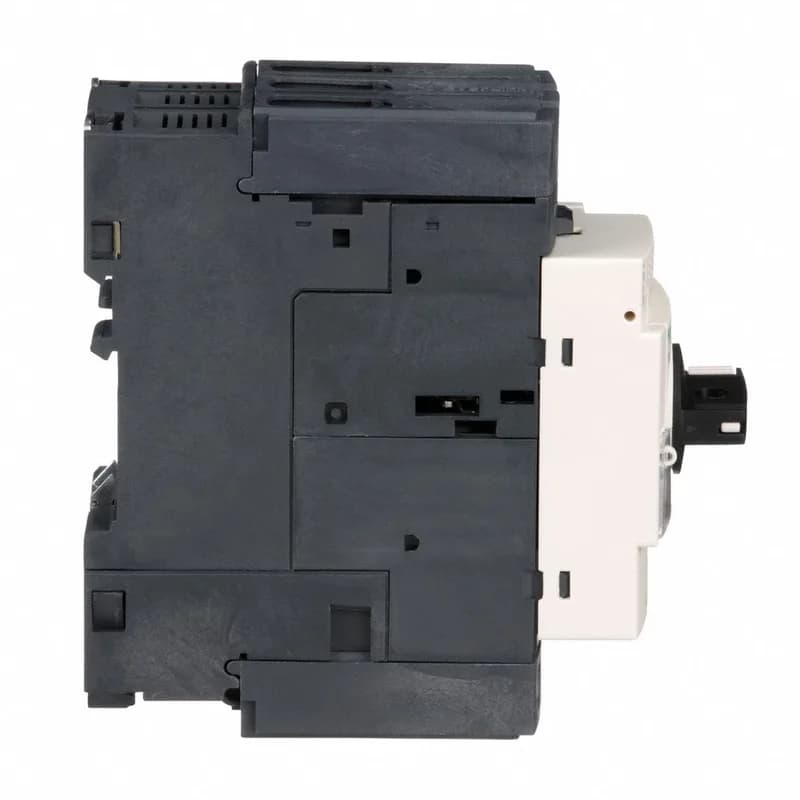

Schneider Electric GV3P65

Schneider GV3P65 TeSys Deca Motor Circuit Breaker, 65A

MPNGV3P65
Active

Schneider Electric TeSys Deca GV3P65, 3-pole motor circuit breaker, 65 A rated current, thermal-magnetic, AC-3, 30 kW at 400/415 V.

$83.82Ref. price · indicative, final on quote
Schneider Electric GV3P65 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV3P65 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current65 A
Magnetic tripping current910 A
[Ith] conventional free air thermal current65 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 50 % 500 V AC 50/60 Hz IEC 60947-2 50 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV3P65 additional specifications
ParameterValue
Motor power30 kW 400/415 V AC 50/60 Hz 45 kW 500 V AC 50/60 Hz 55 kW 690 V AC 50/60 Hz
Power dissipation per pole8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IK degree of protectionIK09 enclosure
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Operating altitude9842.52 ft (3000 m)
ColorDark grey
Depth5.4 in (136 mm)
Width2.2 in (55 mm)
Height5.2 in (132 mm)
Electrical durability50000 cycles AC-3 415 V In
Mechanical durability50000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS10I1122366

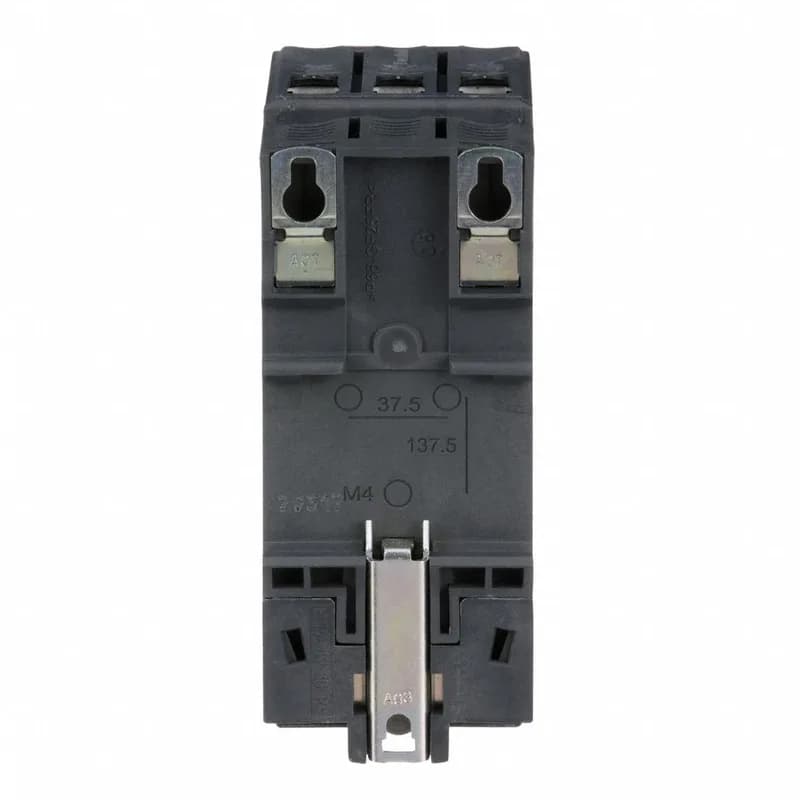

Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 3 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV3P
Tightening torque44.3 lbf.in (5 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 15 Gn for 11 ms contactor open Shocks 30 Gn for 11 ms contactor closed Vibrations 4 Gn, 5...300 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range48...65 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The Schneider GV3P65 is a 3-pole thermal-magnetic motor circuit breaker from the TeSys Deca range, rated for 65 A continuous and covering motor loads up to 30 kW at 400/415 V AC. Magnetic trip is set at 910 A. Phase failure sensitivity is built in.

The housing is 55 mm wide, 136 mm deep, and 132 mm tall – a standard footprint for a 65 A motor-protective device. IP20 finger-safe terminals and IK09 impact rating mean it tolerates routine panel access without a separate enclosure for shock protection.

Standards compliance covers IEC 60947-2 (circuit-breaker) and 60947-4-1 (motor-starter), plus UL 60947-4-1 and CSA C22.2 – sufficient for most global panel specs.

Frequently asked questions

What is the breaking capacity of the GV3P65 at 400 V?

50 kA Icu at 400/415 V AC per IEC 60947-2.

What compliance documentation does the GV3P65 carry?

It meets EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and relevant clauses of IEC/EN 60335 for fire resistance.

What is the colour and depth of the GV3P65?

Dark grey housing; depth is 136 mm (5.4 in).
