Schneider Electric GV3P731

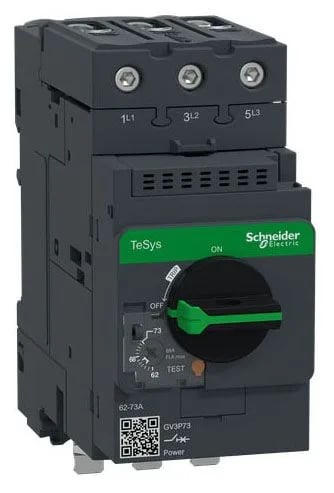

Schneider GV3P731 TeSys Deca Motor Circuit Breaker, 73A, 3P

MPNGV3P731
Active

Schneider Electric TeSys Deca GV3P731 Motor Circuit Breaker, 3-Pole, 73 A, Thermal-Magnetic, Rotary Handle, Dark Grey.

$468.00Ref. price · indicative, final on quote
Schneider Electric GV3P731 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV3P731 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity65 kA Icu 230/240 V AC 50/60 Hz 50 kA Icu 400/415 V AC 50/60 Hz 50 kA Icu 440 V AC 50/60 Hz 12 kA Icu 500 V AC 50/60 Hz 6 kA Icu 690 V AC 50/60 Hz
Line rated current73 A
Magnetic tripping current1120 A
[Ith] conventional free air thermal current73 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz 60 % 400/415 V AC 50/60 Hz 60 % 440 V AC 50/60 Hz 50 % 500 V AC 50/60 Hz 50 % 690 V AC 50/60 Hz

All specifications

GV3P731 additional specifications
ParameterValue
Motor power37 kW 400/415 V AC 50/60 Hz 45 kW 500 V AC 50/60 Hz 55 kW 690 V AC 50/60 Hz
Power dissipation per pole8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IK degree of protectionIK09 enclosure
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Operating altitude9842.52 ft (3000 m)
ColorDark grey
Depth5.4 in (136 mm)
Width2.2 in (55 mm)
Height5.2 in (132 mm)
Electrical durability20000 cycles AC-3 415 V In
Mechanical durability50000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS10I1122366
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 3 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV3P
Tightening torque44.3 lbf.in (5 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 5 Gn for 11 ms contactor open Shocks 30 Gn for 11 ms contactor closed Vibrations 4 Gn, 5...300 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range62...73 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Quick fit check for the BOM

The GV3P731: Breaking capacity goes to 65 kA Icu at 230 V AC, 50 kA at 400 V — enough for most industrial panel SCCR targets. Magnetic trip set at 1120 A, phase failure sensitive per IEC 60947-4-1.

Lifecycle & compliance doc

GV3P731 is flagged as current production. No phase-out warning on the rider. RoHS, REACH, UL, IEC documentation is bundled with the TeSys Deca series — the datasheet pack covers the full family.

Panel mounting & wiring

Dimensions: 132 mm high, 55 mm wide, 136 mm deep. Rotary handle operates the mechanism; IP20 finger-safe terminals. IK09 enclosure rating means it can take a knock in a machine panel. Rated for uninterrupted duty, 50/60 Hz. Power dissipation 8 W per pole.

Frequently asked questions

What is GV3P731's listed color?

The housing is dark grey, as per the spec.

What is GV3P731's depth?

136 mm (5.4 inches) from the DIN rail mounting face to the front of the rotary handle.

What compliance documentation does Schneider provide for GV3P731?

The part carries approvals for IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC 60335 household appliance clauses. RoHS and REACH declarations are available from the TeSys Deca documentation pack.
