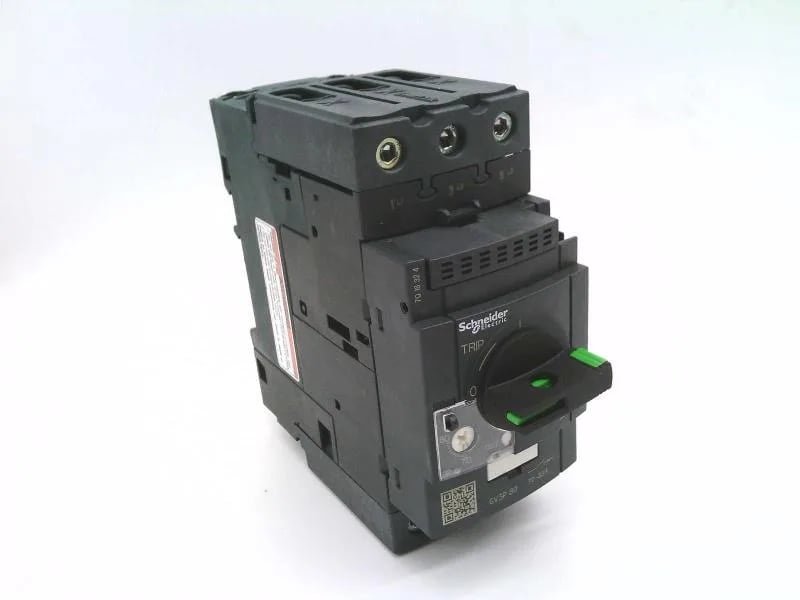

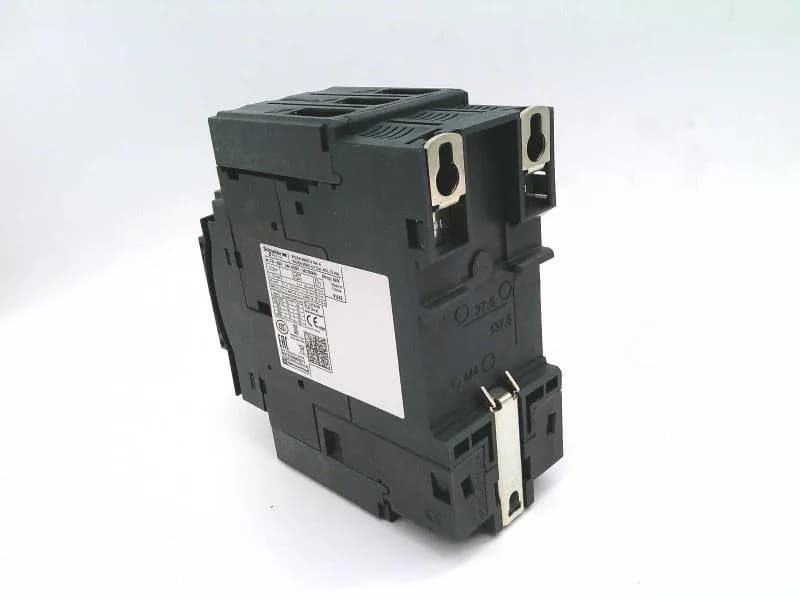

Schneider Electric GV3P80

GV3P80 TeSys Deca Motor Circuit Breaker, 80 A, 3P

MPNGV3P80
Active

Schneider Electric TeSys Deca GV3P, motor circuit breaker, GV3P80, 80 A, 3-pole, thermal-magnetic, IP20, dark grey.

$93.98Ref. price · indicative, final on quote
Schneider Electric GV3P80 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV3P80 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity65 kA Icu 230/240 V AC 50/60 Hz 50 kA Icu 400/415 V AC 50/60 Hz 50 kA Icu 440 V AC 50/60 Hz 12 kA Icu 500 V AC 50/60 Hz 6 kA Icu 690 V AC 50/60 Hz
Line rated current80 A
Magnetic tripping current1120 A
[Ith] conventional free air thermal current80 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz 60 % 400/415 V AC 50/60 Hz 60 % 440 V AC 50/60 Hz 50 % 500 V AC 50/60 Hz 50 % 690 V AC 50/60 Hz

All specifications

GV3P80 additional specifications
ParameterValue
Motor power45 kW 400/415 V AC 50/60 Hz maximum peak current 750 A 45 kW 500 V AC 50/60 Hz maximum peak current 750 A 55 kW 690 V AC 50/60 Hz maximum peak current 750 A
Power dissipation per pole8 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IK degree of protectionIK09 enclosure
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Operating altitude9842.52 ft (3000 m)
ColorDark grey
Depth5.4 in (136 mm)
Width2.2 in (55 mm)
Height5.2 in (132 mm)
Electrical durability20000 cycles AC-3 415 V In
Mechanical durability50000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ
RangeTeSys Deca
CategoryUS10I1122366
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 3 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV3P
Tightening torque44.3 lbf.in (5 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 5 Gn for 11 ms contactor open Shocks 30 Gn for 11 ms contactor closed Vibrations 4 Gn, 5...300 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range70...80 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Motor circuit breaker for 80 A motor protection

The GV3P80 is a TeSys Deca motor circuit breaker from the GV3P family, rated 80 A continuous with 3 poles. Breaking capacity reaches 65 kA at 230 V AC, 50 kA at 400 V, and 6 kA at 690 V.

Key ratings for motor duty

Rated for motor protection in AC-3 duty (utilisation category A), with maximum motor power of 45 kW at 400 V AC and 55 kW at 690 V AC. Magnetic trip fixed at 1120 A, and phase failure sensitivity is built in per IEC 60947-4-1. Electrical durability is 20,000 cycles under AC-3 at 415 V; mechanical durability is 50,000 cycles.

Dimensions: 5.4 in deep, 2.2 in wide, 5.2 in high. Screw clamp terminals accept a tightening torque of 44.3 lbf·in (5 N·m). Rated IP20 with IK09 mechanical impact resistance, horizontal or vertical mounting allowed.

Frequently asked questions

What is the listed color of the GV3P80?

The GV3P80 is dark grey.

What is the depth of the GV3P80?

The depth is 5.4 inches (136 mm).

What compliance standards does the GV3P80 meet?

It complies with EN/IEC 60947-2, EN/IEC 60947-4-1, and the appliance-specific clauses IEC/EN 60335-1 Clause 30.2 and IEC/EN 60335-2-40 Annex JJ.
