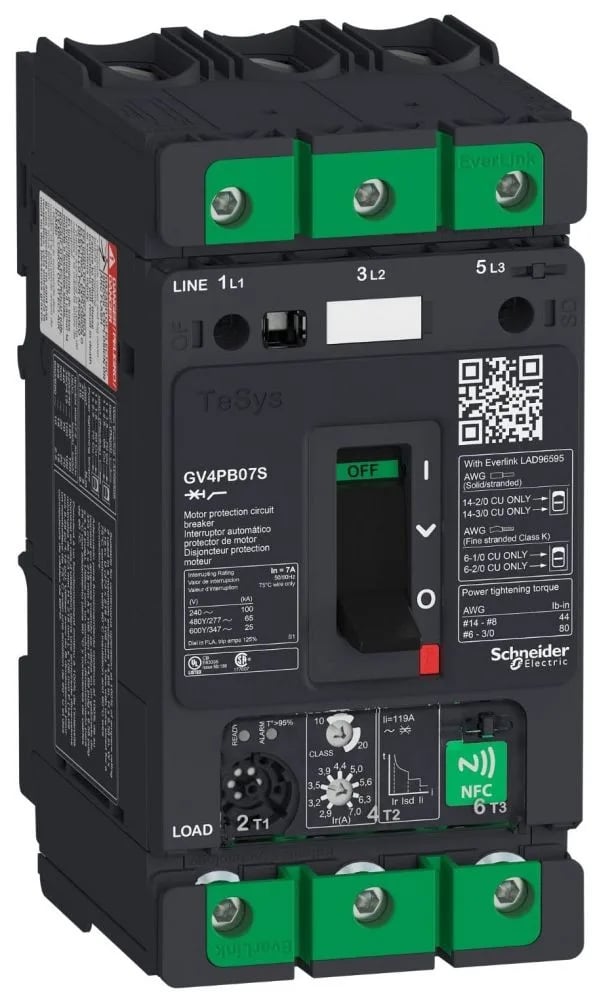

Schneider TeSys GV4PB07S Motor Circuit Breaker, 7A, 3P, 100k

MPNGV4PB07S
Active

Schneider Electric TeSys GV4, motor circuit breaker, 7 A, 3 poles, 100 kA SCCR (UL) 240 V, 120 kA Icu (IEC) 220/240 V, thermal-magnetic and electronic trip, RAL 7016 gray.

Schneider Electric GV4PB07S datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV4PB07S key specifications
ParameterValue
Control typeToggle
Range of productTeSys GV4
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage800 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2 600Y/347 V AC 60 Hz UL 489
[Uimp] rated impulse withstand voltage8 kV IEC 60947-2
Breaking capacity100 kA SCCR 240 V AC 60 Hz UL 489 65 kA SCCR 480Y/277 V AC 60 Hz UL 489 25 kA SCCR 600Y/347 V AC 60 Hz UL 489 120 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 70 kA Icu 440 V AC 50/60 Hz IEC 60947-2 30 kA Icu 500 V AC 50/60 Hz IEC 60947-2 18 kA Icu 525 V AC 50/60 Hz IEC 60947-2 10 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
Line rated current7 A
Magnetic tripping current119 A
[Ith] conventional free air thermal current115 A IEC 60947-4-1
[Ics] rated service short-circuit breaking capacity100 % 220/240 V AC 50/60 Hz IEC 60947-2 100 % 380/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 525 V AC 50/60 Hz IEC 60947-2 25 % 660/690 V AC 50/60 Hz IEC 60947-2

All specifications

GV4PB07S additional specifications
ParameterValue
Power dissipation per pole4.6 W
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyContinuous IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IK degree of protectionIK07 IEC 62262
IP degree of protectionIP40 IEC 60529
Connections - terminalsEverLink BTR screw connectors top) 1 0.002...0.1 in² (1.5...70 mm²) - rigid EverLink BTR screw connectors top) 1 0.002...0.08 in² (1.5...50 mm²) - flexible EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...95 mm²) - rigid EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...70 mm²) - flexible
Pollution degree3
Operating altitude5000 m
ColorGray RAL 7016)
Depth4.6 in (116 mm)
Width3.2 in (81 mm)
Height6.7 in (171 mm)
Electrical durability40000 cycles AC-3 440 V In/2 40000 cycles AC-3 440 V In
Mechanical durability40000 cycles
StandardsEN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-4-1 UL 489 CSA C22.2 No 5
RangeTeSys Deca
CategoryUS10I1122365
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV4PB
Tightening torque79.7 lbf.in (9 N.m) 0.02...0.1 in² (16...95 mm²) 44.3 lbf.in (5 N.m) 0.002...0.02 in² (1.5...10 mm²)
Device applicationMotor protection
Operating positionAny position
Trip unit technologyThermal-magnetic Electronic
Mechanical robustnessVibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 Shocks 15 gn 11 ms IEC 60068-2-27
Maximum operating rate25 cyc/h
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-58...185 °F (-50...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

It carries both thermal-magnetic and electronic trip technology, with phase failure sensitivity and suitability for isolation per IEC 60947-1. Rated at 690 V AC (IEC) and 600Y/347 V AC (UL), it handles continuous duty in Category A and AC-3 utilization. Breaking capacity reaches 100 kA SCCR at 240 V (UL 489) and 120 kA Icu at 220/240 V (IEC 60947-2), which is notably high for the 7 A frame and suits high-fault installations. Mechanical and electrical durability are rated at 40,000 cycles (AC-3, 440 V In), with a maximum operating rate of 25 cycles per hour.

This part is current production. Housing color is RAL 7016 gray. If you need compliance documentation for your QA gate, the standard package covers EN/IEC 60947-1, -2, -4-1, UL 489, and CSA C22.2 No 5, plus fire resistance at 960 °C (IEC 60695-2-11). RoHS and REACH declarations are standard from Schneider; I can append them to an RFQ.

Dimensions: 4.6 in (116 mm) deep, 3.2 in (81 mm) wide, 6.7 in (171 mm) tall. IP40 front face, IK07 impact resistance. Accepts line-side conductors up to 95 mm² rigid at the bottom terminals via EverLink BTR screw connectors. Tightening torque 9 N·m for main terminals, 5 N·m for control. Operating position any; pollution degree 3. Climatic withstand per IACS. Magnetic tripping current is 119 A. Power dissipation per pole is 4.6 W.
