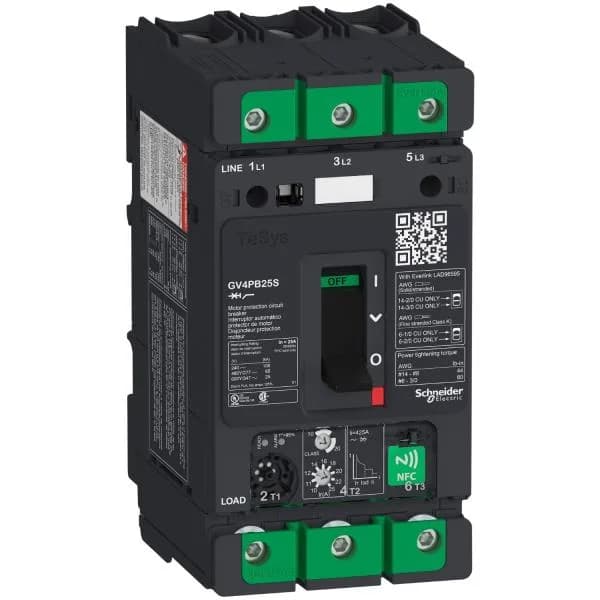

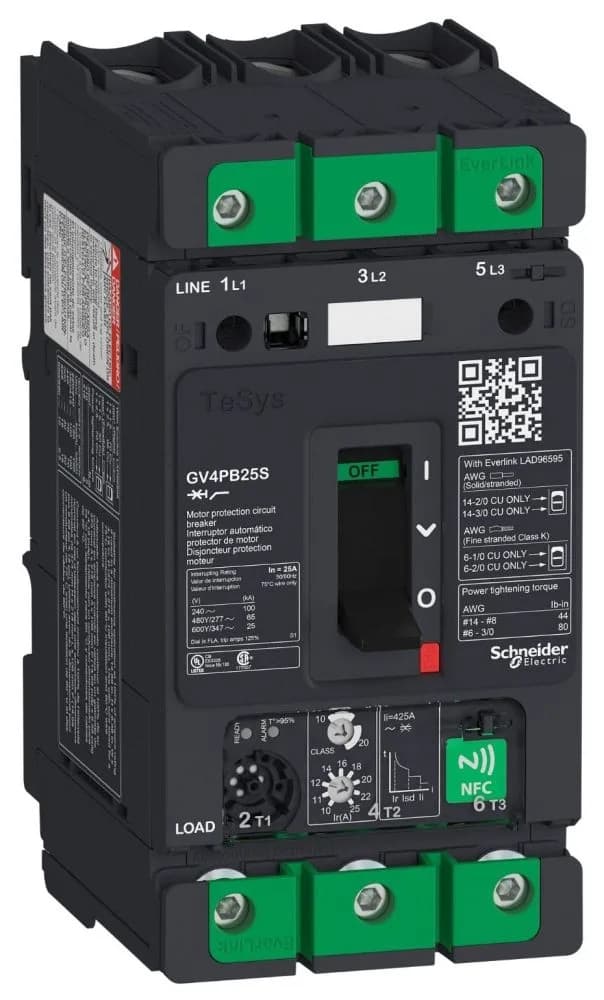

Schneider Electric GV4PB25S

Schneider GV4PB25S TeSys Deca Motor Circuit Breaker, 25 A

MPNGV4PB25S
Active

Schneider Electric TeSys GV4 series, GV4PB25S, 3-pole motor circuit breaker, 25 A line rated current, thermal-magnetic trip, UL 489 / IEC 60947, current production.

$610.00 – $870.28Ref. price · indicative, final on quote
Schneider Electric GV4PB25S datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV4PB25S key specifications
ParameterValue
Control typeToggle
Range of productTeSys GV4
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage800 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2 600Y/347 V AC 60 Hz UL 489
[Uimp] rated impulse withstand voltage8 kV IEC 60947-2
Breaking capacity100 kA SCCR 240 V AC 60 Hz UL 489 65 kA SCCR 480Y/277 V AC 60 Hz UL 489 25 kA SCCR 600Y/347 V AC 60 Hz UL 489 120 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 70 kA Icu 440 V AC 50/60 Hz IEC 60947-2 30 kA Icu 500 V AC 50/60 Hz IEC 60947-2 18 kA Icu 525 V AC 50/60 Hz IEC 60947-2 10 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
Line rated current25 A
Magnetic tripping current425 A
[Ith] conventional free air thermal current115 A IEC 60947-4-1
[Ics] rated service short-circuit breaking capacity100 % 220/240 V AC 50/60 Hz IEC 60947-2 100 % 380/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 525 V AC 50/60 Hz IEC 60947-2 25 % 660/690 V AC 50/60 Hz IEC 60947-2

All specifications

GV4PB25S additional specifications
ParameterValue
Power dissipation per pole4.6 W
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyContinuous IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1
IK degree of protectionIK07 IEC 62262
IP degree of protectionIP40 IEC 60529
Connections - terminalsEverLink BTR screw connectors top) 1 0.002...0.1 in² (1.5...70 mm²) - rigid EverLink BTR screw connectors top) 1 0.002...0.08 in² (1.5...50 mm²) - flexible EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...95 mm²) - rigid EverLink BTR screw connectors bottom) 1 0.004...0.1 in² (2.5...70 mm²) - flexible
Pollution degree3
Operating altitude5000 m
ColorGray RAL 7016)
Depth4.6 in (116 mm)
Width3.2 in (81 mm)
Height6.7 in (171 mm)
Electrical durability40000 cycles AC-3 440 V In/2 20000 cycles AC-3 440 V In
Mechanical durability40000 cycles
StandardsEN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-4-1 UL 489 CSA C22.2 No 5
RangeTeSys Deca
CategoryUS10I1122365
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV4PB
Tightening torque79.7 lbf.in (9 N.m) 0.02...0.1 in² (16...95 mm²) 44.3 lbf.in (5 N.m) 0.002...0.02 in² (1.5...10 mm²)
Device applicationMotor protection
Operating positionAny position
Trip unit technologyThermal-magnetic Electronic
Mechanical robustnessVibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 Shocks 15 gn 11 ms IEC 60068-2-27
Maximum operating rate25 cyc/h
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-58...185 °F (-50...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

The GV4PB25S is an active line item in the TeSys GV4 range. Expect standard lead times for a production part; no last-time-buy risk here. If you're sourcing for a BOM freeze, this one is safe to specify.

Key Ratings & Fit

Rated line current of 25 A with thermal-magnetic trip. Magnetic tripping current set at 425 A, so it clears high-fault conditions quickly. Phase failure sensitivity per IEC 60947-4-1 is standard — opens on single-phase condition. Utilisation category AC-3 for motor switching; 40,000 electrical cycles at 440 V at full load. Rated operational voltage 690 V AC IEC, 600Y/347 V AC UL. Insulation voltage 800 V AC.

Compliance & Environmental

Full standards coverage: EN/IEC 60947-1, -2, -4-1, UL 489, CSA C22.2 No 5. Fire resistance tested to 960 °C glow-wire (IEC 60695-2-11). Pollution degree 3 for factory floor environments. IP40 finger-safe enclosure, IK07 impact resistance. Climatic withstand meets IACS. Operating altitude up to 5000 m. Any position orientation — no derating for side or upside-down mounting.

Frequently asked questions

What color is the GV4PB25S?

The listed color is Gray RAL 7016.

What is the depth of the GV4PB25S?

Depth is 4.6 inches (116 mm).

What compliance standards does the GV4PB25S meet?

It meets EN/IEC 60947-1, -2, -4-1, UL 489, and CSA C22.2 No 5. Also fire resistance to 960 °C, IP40, IK07, and pollution degree 3.
